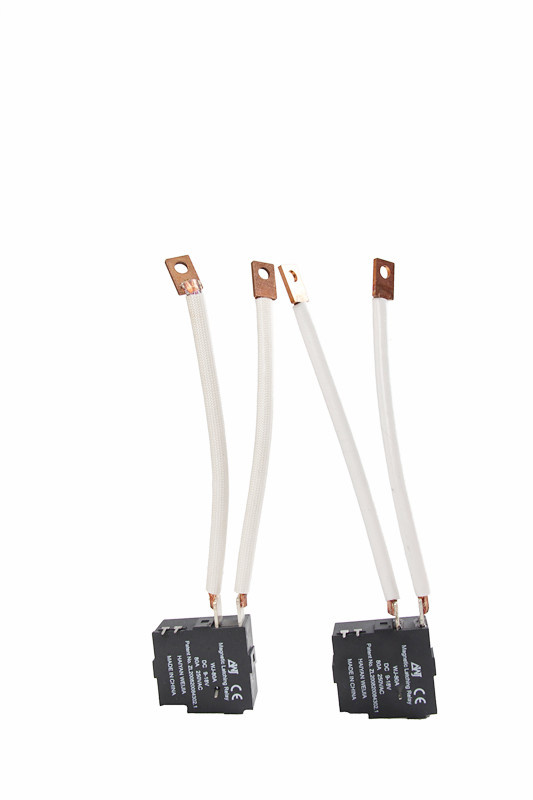

Single-Phase Relay Switches 80A 12V Latching Relay

Magnetic Latching Relay 80A Appliance:
1. Electrical meter.
2. Automatic meter reading(AMR).
3. Automatic control devices.

Feature: 1. Contact switch current 80A

2. Compression between contact and coil is 4KV

3. Using metal magnetic shield structure, relay against strong magnetic interference

4. Energy conservation and environmental protection

Appliance: Widely appliance to single-phase energy meter, combination switch, streetlights, industrial automation control.

Dimension: 36.5× 17.4× 32.7mm
Notice

1. Relay is on the "reset" or "set" status when being released from stock, with the consideration of shock risen from transit and relay mounting, relay would be changed to "se" or "reset" status, therefore, when application (connecting the power supply), please reset the relay to "set" or "reset" status on request.

2. In order to maintain "set" or "reset" status, energized voltage to coil should reach the rated voltage, impulse width should be 5 times more than "set" or "reset" time. Do not energize voltage to "set" coil and "reset" coil simultaneously. And also long energized time(more than 1 min) should be avoided.

3. In order to avoid changing operate voltage, products should not be kept in strong magnetic field during transportation, storage and application.

Specification Data:
Coil Rated Voltage (V)	9	12
Coil Resistance(Ω )± 10%	80	145
Coil Pulse Drive Voltage Amplitude	≥ 120% Rated Voltage
Coil Pulse Drive Width	40mS Min    100mS Max
Coil Power	Double Coil  2/2W
Rate Switch Current	80A
Rate Switch Voltage	250VAC
Rate Current Contact Pressure drop	60mV  Max
Contact Switch Time	20mS  Max
Ambient Temp	-40-80° C
Vibration	10-55Hz  Single Amplitude 0.75mm
Impact	147 m/S²
Relative Humidity	45%-85%
Life(Mechanical)	≥ 1× 10
Life(Electrical)	≥ 1× 104
Max Operate Frequency	600 OPS/H
Dielectric Strength(Between open contact)	1500VAC 50/60Hz
Dielectric Strength(Between coil & contact)	3750VAC 50/60Hz
Insulation Resistance	1000MΩ (500VDC)
