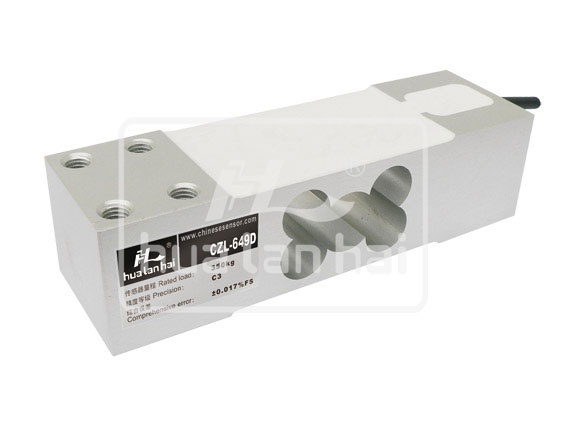

Single Point Load Cell (CZL649D)

Name: Single Point Load Cell (CZL649D)
Brand: all-electronics-online.com
SKU: 668875731
Availability: InStock
Rating: 5 (105 reviews)

Price:	US $ 8/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL649D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Weighing Sensor
Pattern:	Single Point Type

Product Description

Rated load (kg): 60, 100, 150, 200, 250, 300
Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.

Parameters:
Precision : C2/C3		Temp. effect on span(%F.S/10deg C): ±0.02/±0.014
Comprehensive error(%F.S) : ±0.02/±0.017		Temp. effect on zero(%F.S/10deg C) : ±0.03/±0.017
Rated output(mv/v) : 2.0±0.2		Compensated temp. range(deg C) : -10~+40
Creep(%F.S/30min) : ±0.02/±0.017		Use temp. range(deg C ) : -20~+60
Zero balance(%F.S) : ±1.0		Excitation voltage(V) : 9~12(DC)
Input resistance(ohm) : 405±10		Safe overload (%F.S) : 120
Output resistance(ohm) : 350±3		Ultimate overload (%F.S) : 150
Insulation resistance(Mohm) : ≥5000(100VDC)		Defend grade : IP65

Wiring schematic diagram:

Red: Input ( + ) White: Output ( - )
Black: Input ( - ) Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×1500mm)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
