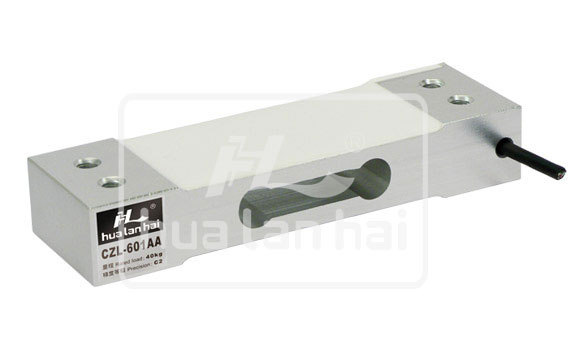

Single Point Load Cell

Name: Single Point Load Cell
Brand: all-electronics-online.com
SKU: 773556755
Availability: InStock
Rating: 4.3 (74 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL601AA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Weighing Sensor
Size:	130X30X22mm
Cable Length:	5X420mm
Pattern:	Single Point Type

Product Description

Rated load(kg): 25-200
Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.

Parameters:
Precision : C2		Temp. effect on span(%F.S/10deg C): ±0.02
Comprehensive error(%F.S) : ±0.02		Temp. effect on zero(%F.S/10deg C) : ±0.03
Rated output(mv/v) : 2.0±0.1		Compensated temp. range(deg C) : -10~+40
Creep(%F.S/30min) : ±0.02		Use temp. range(deg C) : -20~+60
Zero balance(%F.S) : ±1.5		Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 405±10		Safe overload (%F.S) : 150
Output resistance(Ω) : 350±3		Ultimate overload (%F.S) : 200
Insulation resistance(MΩ) : ≥5000(100VDC)		Defend grade : IP65

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
