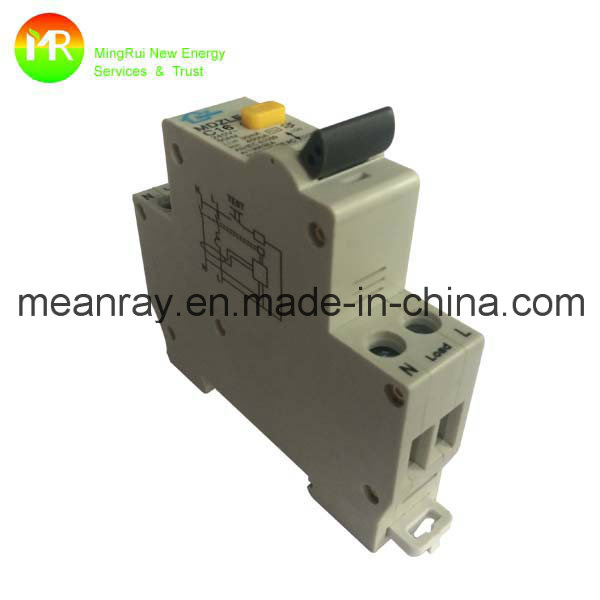

Single Pole 4.5ka 16A RCBO 30mA with SAA
| Price: |
US $ 6.31-6.77/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Single Pole 4.5ka 16a RCBO 30mA with SAA
Product Description of 16A RCBO:Provides protection against earth fault/leakage current, short-circuit, overload, andfunction of isolationProvides complementary protection against direct contact by human bodyEffectively protects electric equipment against insulating failureProvides comprehensive protection to household and commercial distribution systemsTechnical Data of 16A RCBO: Standard: IEC61009
Residual current characteristics: AC
Pole No.: 1P+N
Tripping curve: C
Rated short-circuit capacity:4.5kA
Rated current (A): 6,10,16,20,25,32
Rated voltage: 240V AC
Rated frequency: 50/60Hz
Rated residual operating current(mA):30
Tripping duration: instantaneous≤0.1s
Electro-mechanical endurance: 4000 cycles
Connection terminal: piliar terminal with clamp
Connection capacity:
Flexible conductor 10mm² Rigid conductor 16mm²| Rated short-circuit capacity | 4.5kA |
| TYPE | A |

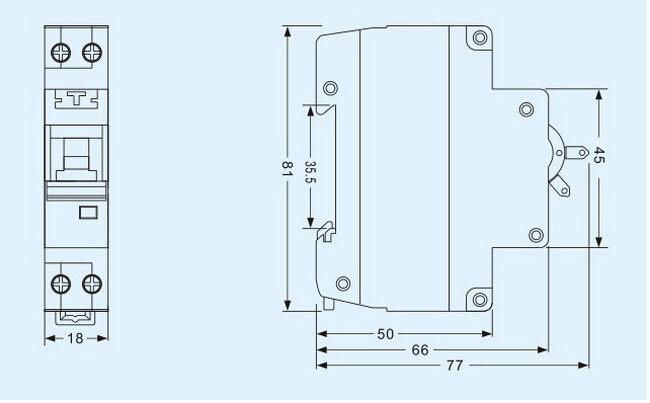

Installation dimensions of 16A RCBO:

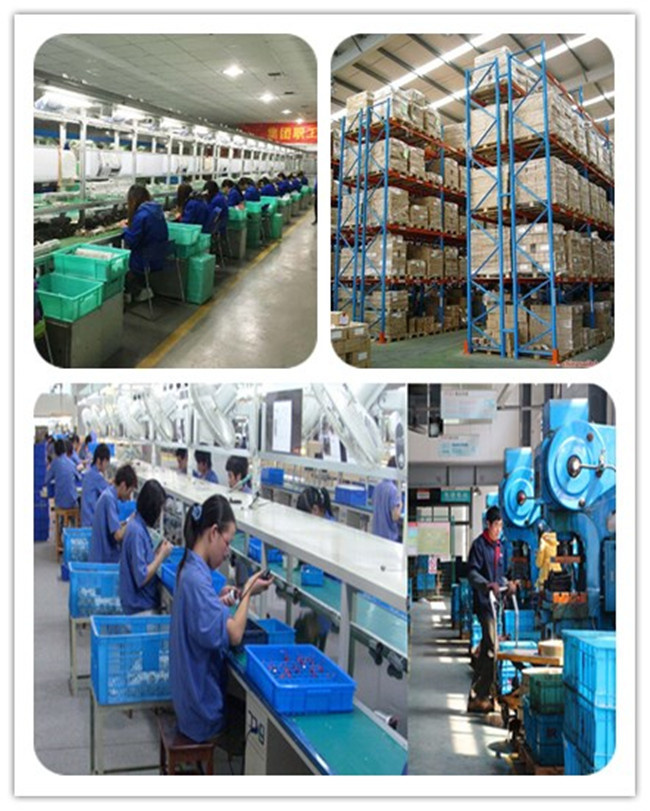

Workshop of RCBO:
Certificate:
FAQ of RCOB:
Q : What is your minimum order quantity for whole of your products ? A: Most of the items no have MOQ requirement, you can even buy 1pc
Q : How about the delivery time ?
A : It depends on your order quantity, normally for large order quantities, shipment within 30days.
Q : How about the package?A :The carton is strong enough for air and sea shippment.
Colorful box will be designed according to your requirement.
Q : Would you accept OEM ?
A : OEM. totally no problem for us. But it require bigger Qty than normal.Q : We want to know month capacity.
A : 50000pcs/month Q : Where is your market? A : Australia and New Zealand
Q : what kind of certificate you have ?
A : SAA, CE, CB, CCC
Q : If we bought your products, but found quality problem, how to solve?
A : After confirmed, if the quality problem is caused by us not for outer sector,We will compensate each piece to customer.
| Prod Model: |
ZBOM1-32 |
| Rated Current: |
6A,10A,16A,20A,25A,32A |
| Market: |
Australia and New Zealand |
| Rated Frequency: |
50/60Hz |
| Specification Standard: |
IEC61009-1 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Certification: |
SAA |
| Installation: |
DIN-Rail |
| Structure: |
RCBO |
| Poles Number: |
1p+N |
| Type: |
Type a |
Zhejiang MEANRAY is committed to the field of new energy, specializing in solar photovoltaic and wind power products. It is a company which engaged in research and development, production, sales and after-sales. After years of intensive development in the field of new energy and electrical industry, it has become the main manufacturer of new energy electrical appliances in China, and has become the international famous brand OEM partner.
The wide range products under our manufacturing covers DC Circuit Breaker, Surge Protector Device, DC MCCB, Fuse, Isolator switch, PV Combiner box, Solar Cable, MC4 Connector, Distribution Box and Switch. All products are in strict accordance with the international Electrotechnical Commission standards and national and industry standsard production. Products have passed CE, CB, SAA, NEMKO, VDE, CCC certificates. Products are widely used in solar power, wind power, metallurgy, electromechanical, railway, ship, port, petrochemical, iron and steel, coal mines, residential areas, shopping malls and other industries of power supply control system.
The company has a modem management team and scientific research personnel. In line with people-oriented, relying on new technology and new products, adhere to the excellent quality and advanced products performance to meet the constantly changing market demand. Now has exported to Europe Spain, Italy, Holland, Southeast Asia, Australia, the Middle East and other international markets.
In the face of a new future, the company will adhere to the purpose of "honesty, steadfast, quality and trust", relying on advanced modern enterprise management, deepening the internal management of enterprises, comprehensively promoting the quality assurance system, and developing the spirit of "serving customers". Adhering to the concept of "service and trust", the professional service team participates in the whole process. Strive to bring high quality shopping experience to each customer. Strive to create a new era of shopping.
Save limited energy, clean the world...MEANRAY together with you.
