Single Sided Flexible Printed Circuit board PCB Polyimide Immersion Gold AppliedIn Bluetooth

Commodity Introduction

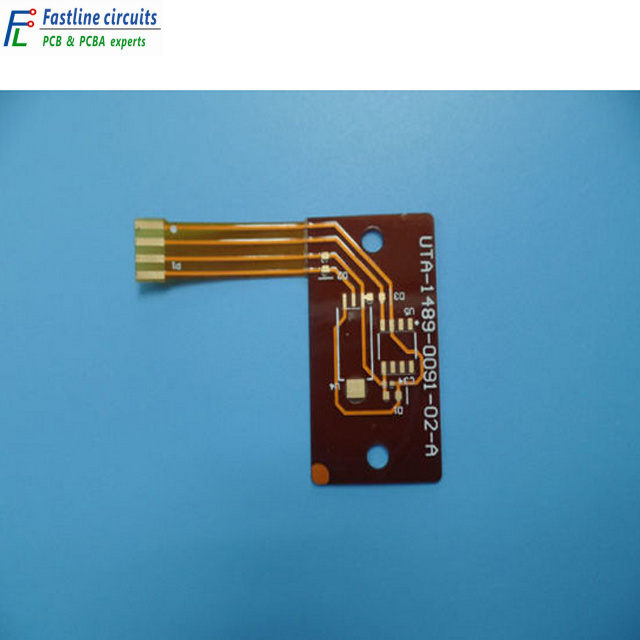

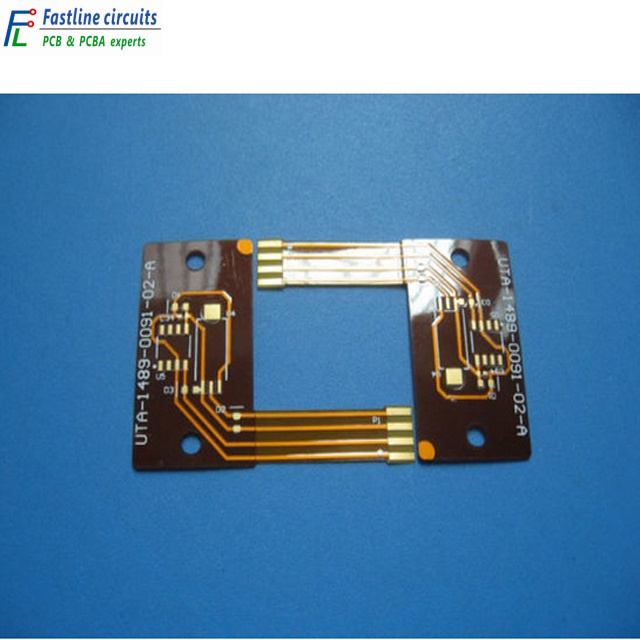

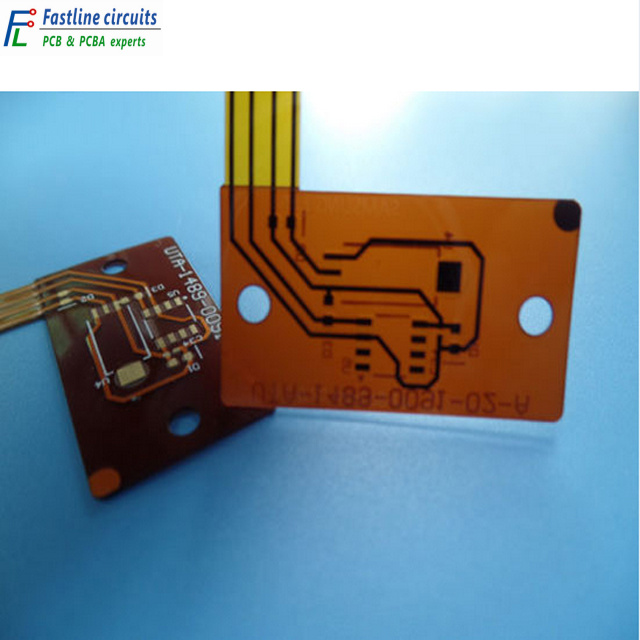

This is a type of polyimide PCB for the application of Bluetooth. It's a single sided layer board at
0.1mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.

Parameters & Data Sheet

PCB SIZE	45 x 33mm=1PCS
BOARD TYPE
Number of Layers	Single sided PCB
Surface Mount Components	YES
Through Hole Components	no
LAYER STACKUP	copper ------- 35um(1oz)
LAYER STACKUP	Polyimide 0.1mm
TECHNOLOGY
Minimum Trace and Space:	12mil/12mil
Minimum / Maximum Holes:	2.5mm
Number of Different Holes:	1
Number of Drill Holes:	2
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control	NO
BOARD MATERIAL
Glass Epoxy:	Polyimide 0.1mm, FPC
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	0.1mm ±0.05
PLATING AND COATING
Surface Finish	Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel)
Solder Mask Apply To:	TOP
Solder Mask Color:	Yellow, Coverlay
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Laser cut
MARKING
Side of Component Legend	TOP
Colour of Component Legend	White, IJR-4000 MW300, Taiyo Supplied.
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	None Plated Through Hole(NPTH)
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
APPLICATION:	Bluetooth, Converters Portable Router 3G Speed 4G Speed GPS For Car
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

Prod Model:	FL398
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Material:	Polyimide
Board Thickness:	1.6 Mm
Copper Thickness:	1 Oz (35um)
Surface Treatment:	HASL Lead Free
Structure:	Multilayer FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Application:	Aviation and Aerospace
Conductive Adhesive:	Conductive Silver Paste
Processing Technology:	Enig
Base Material:	Pi
Brand:	Fastline
