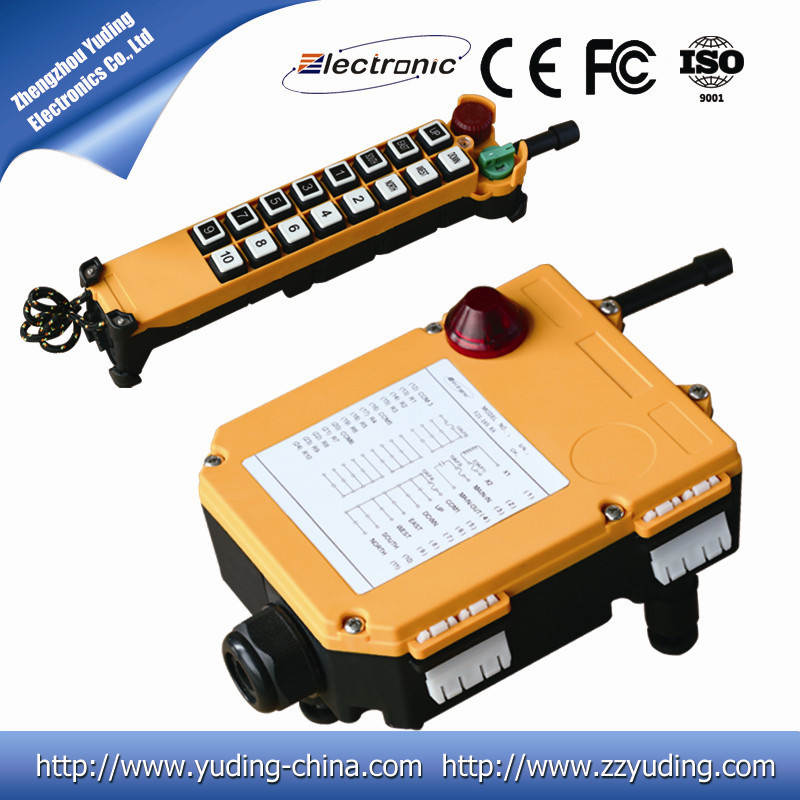

single speed satellite receiver remote control
16 single speed button,Emergency stop button and Rotary switch. Total control motions can reach 16. The max control distance can reach 100m. Mainly used on overhead crane, bridge crane, tower crane etc.
| | Transmitter | Receiver |
| Dimension | 239*68*65mm | 331*160*140mm |
| Weight | 255g | 1200g |
| Material | Glass-fiber |
| Protection level | IP65 |
| Power supply | AC 3V (2 AA batteries) | AC380V/36V/220V/110V/48V/24V or AC12V/DC12V |
| Product name | single speed satellite receiver remote control |
| Control distance | up to 100m |
| Control motions | 16 |
| Frequency generation | Crystal |
| Structure | Glass-fiber |
| Operation Frequency | 310-330Mhz & 433Mhz |
| Certificates | CE, FCC, ISO9001:2008 |
| Unique code | Over 4.3 billon unique ID codes |
| Working temperature | -35°C___+80°C |
| Output capacity | Full sealed relay output with 5 amperes |
single speed satellite receiver remote control
*16 single speed push button and one EMGS button + one ROTARY SWITCH
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*four push button can be set mutual inhibition or not .
*Up ,Down ,East ,West can be set start ,close,speed up,jump strokes,ordinary etc.
More products for your reference
we have F21 series , F24 series , F21-E1B , E1Q , F23-A++,F24-60 joystick remote control , single speed and double speed industrial remote control
Applications
Radio remote controls are becoming more common in many industrial applications. These applications include material handling, cranes and hoists, agriculture, grain elevators, aggregates, conveyors, automation, assembly lines, railroad, mining, ship loading, recycling, waste management, military, entertainment, and rides.
Certifications
We have obtained CE , FCC certificate for our industrial wireless radio remote control ,ISO-9001:2008
Information about our company
Henan Yuding electronics co.,ltd was founded in 2010 years, mainly for industrial radio remote control system such as F21 serises , F24 serises ,C-E1Q, 60 etc ,production line is more than 5000sq.m ,more than 400 employee , we has build multiple internationally leading SMT production lines , BGA production lines and DIP production lines , we have obtainer ISO9001-2008 ,CE certificate and Anti-explosion certification in 2011 , on the other side ,our company accept OEM,ODM for different mainboard ,LED ,EPC,FPC etc .
More information about single speed satellite receiver remote control pls contact us directly
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
