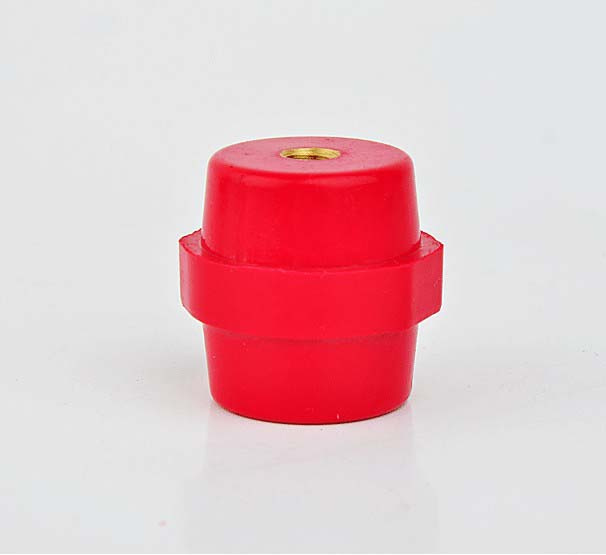

Sm-45 Bus Bar Insulator for Control Panel Building

Name: Sm-45 Bus Bar Insulator for Control Panel Building
Brand: all-electronics-online.com
SKU: 690327711
Availability: InStock
Rating: 4.6 (52 reviews)

Price:	US $ 0.2-1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Insulating Connector Bus bar Insulator SMC series

Operating temperature:-40--+140
Insert:Brass.steel with Zn coating
Material:BMC(bough moulding compound)
SMC(sheet moulding compound)
Color,insert,mateerial in capability accordance with customer need.

Specifications
1.Size: SM25,SM30,SM35,SM40,SM45,SM51,SM76,SM-7105,SM-7100,SM-7120,SM-7160
2.Tensile strength:600LBS
3.Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

Values	Style
Values	SM-25	SM-30	SM-35	SM-40	SM-51	SM-76
Temsile strength(lbs)	500	550	600	650	1000	1500
Torgue strength(fr lba)	6	8	10	10	20	40
Voltage withstand(kv)	6	8	10	12	15	25
Screw(mm)	6	8	8	8	8	10
Weight(g)	28	44	50	56	83	233

Advantages:
The products have excellent insulation properties,high strenght,high temperature resistant,safe and reliable,tated voltage 660V is good choice for low voltage power distribution cabinet fixed bus.

Using SMC unsaturated resin hot pressing. Mainly used for high and low voltage power distribution cabinet,inverter,power distribution box,supporting the connecting bus etc.

The product has excellent insulation properties,high strength,high teperature resistant,safe and reliable,rated voltage up to 660V is the best choice for low voltage power distribution cabiner fixed bus.

type	diameter	size	GW/pcs	QTY/box
SM25	M6	25X30	0.04kg	20
SM30	M6	30X32	0.04kg	20
SM30	M8	30X32	0.04kg	20
SM35	M6	35X32	0.06kg	10
SM35	M8	35X32	0.06kg	10
SM40	M8	40X40	0.09kg	10
SM51	M8	51X36	0.12kg	10
SM76	M10	76X50	0.15kg	10
SM7105	M6	38X32	0.07kg	10
SM7105	M8	38X32	0.07kg	10
SM7110	M8	45X42	0.1kg	10
SM7110	M10	45X42	0.1kg	10
SM7120X50	M10	51X51	0.18kg	10
SM7120X60	M10	60X54	0.2kg	10

How to contact?

Contact Person	Mr. Jimmy Xie
Phone	0086 138 68706510
Fax	0086-577-56848069
Address	NO.218 Liule Rd,Liush,Town,Yueqing,Wenzhou,China

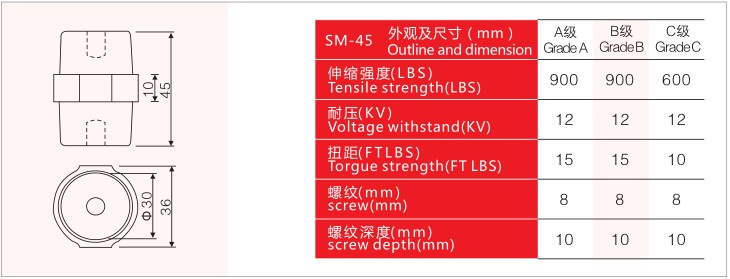

Prod Model:	Sm-45
Application:	Low-voltage
Structure:	Post Insulator
Type:	A Type Insulator
Brand:	Shuntong
Material:	BMC/SMC
