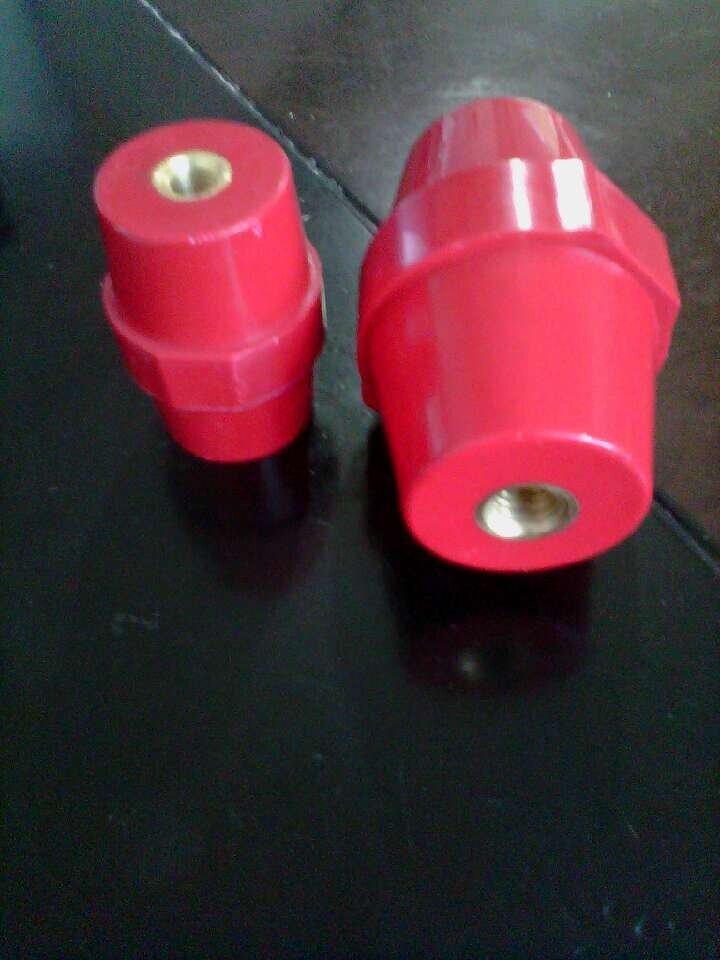

Sm Busbar Insulator Low Voltage Bus-Bar Insulator

Name: Sm Busbar Insulator Low Voltage Bus-Bar Insulator
Brand: all-electronics-online.com
SKU: 750137595
Availability: InStock
Rating: 4.7 (128 reviews)

Price:	US $ 1.02/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM-25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Size:	Different Size Available
Material:	Semiconductor
Structure:	Bushing Insulator
Brand:	Jma

Product Description

SM series Bus-bar insulator:
Type:SM-14,SM-24,SM-25,SM-30,SM-35,SM-40,SM-51,SM-76

1, Bus-bar Insulator requirements

A, Operating Temperature:-40~+140

B, Insert:Brass. Steel with Zn coating

C, Matenial:BMC(Bough Moulding Compound) SMC(Sheet Moulding Compound)

D, Colour,Insert,mateerial In capability accordance with customer needs
Basic Data

MODEL	SM-20	SM-25S	SM-25	SM-30	SM-35	SM-40	SM-45	SM-51	SM-65	SM-76
Elastic strength (LBS)	300	400	500	550	600	650	1000	1000	1200	1500
Withstand voltage (kV)	5	6	6	8	10	12	14	15	20	25
Torque distance (FT LBS)	4	5	6	8	10	12	20	20	35	40
Screw (mm)	5	6	6	8	8	8	8	8	10	10
Screw depth (mm)	7	8	9	11	11	11	11	14	15	20

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production .
b. Random inspection during production .
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.

FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
