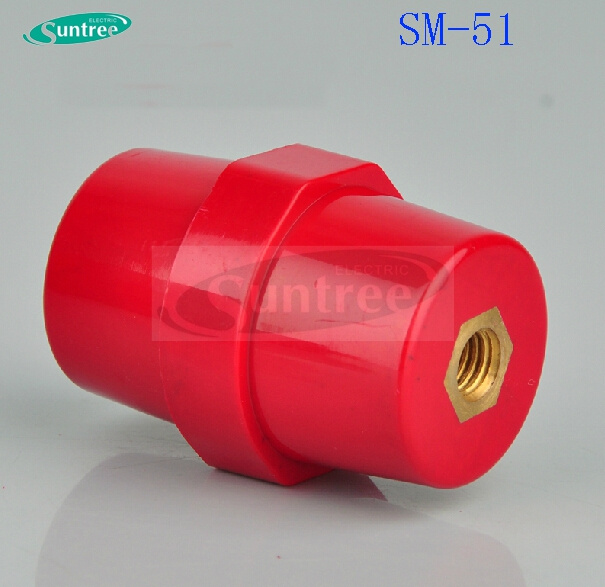

SM Series Low Voltage Busbar Insulator Polymer Insulator
Operating temperature:-40--+140
Insert:Brass.steel with Zn coating
Material:BMC(bough moulding compound)
SMC(sheet moulding compound)
Color,insert,mateerial in capability accordance with customer need.
Specifications
Size: SM25,SM30,SM35,SM40,SM45,SM51,SM76,SM-7105,SM-7100,SM-7120,SM-7160
2.Tensile strength:600LBS
3.Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
| Values | Style |
| SM-25 | SM-30 | SM-35 | SM-40 | SM-51 | SM-76 |
| Temsile strength(lbs) | 500 | 550 | 600 | 650 | 1000 | 1500 |
| Torgue strength(fr lba) | 6 | 8 | 10 | 10 | 20 | 40 |
| Voltage withstand(kv) | 6 | 8 | 10 | 12 | 15 | 25 |
| Screw(mm) | 6 | 8 | 8 | 8 | 8 | 10 |
| Weight(g) | 28 | 44 | 50 | 56 | 83 | 233 |
Advantages:
The products have excellent insulation properties,high strenght,high temperature resistant,safe and reliable,tated voltage 660V is good choice for low voltage power distribution cabinet fixed bus.
Using SMC unsaturated resin hot pressing. Mainly used for high and low voltage power distribution cabinet,inverter,power distribution box,supporting the connecting bus etc.
The product has excellent insulation properties,high strength,high teperature resistant,safe and reliable,rated voltage up to 660V is the best choice for low voltage power distribution cabiner fixed bus.
| type | diameter | size | GW/pcs | QTY/box |
| SM25 | M6 | 25X30 | 0.04kg | 20 |
| SM30 | M6 | 30X32 | 0.04kg | 20 |
| SM30 | M8 | 30X32 | 0.04kg | 20 |
| SM35 | M6 | 35X32 | 0.06kg | 10 |
| SM35 | M8 | 35X32 | 0.06kg | 10 |
| SM40 | M8 | 40X40 | 0.09kg | 10 |
| SM51 | M8 | 51X36 | 0.12kg | 10 |
| SM76 | M10 | 76X50 | 0.15kg | 10 |
| SM7105 | M6 | 38X32 | 0.07kg | 10 |
| SM7105 | M8 | 38X32 | 0.07kg | 10 |
| SM7110 | M8 | 45X42 | 0.1kg | 10 |
| SM7110 | M10 | 45X42 | 0.1kg | 10 |
| SM7120X50 | M10 | 51X51 | 0.18kg | 10 |
| SM7120X60 | M10 | 60X54 | 0.2kg | 10 |
SM Packing materials
| type | Packing size cm | QTY/box | GW/box KG |
| With screw |
| SM25 with screw | 41.5*32.5*28.5 | 600 | 25 |
| SM30 with screw | 35*34*31.5 | 500 | 28.5 |
| SM35 with screw | 35*29*34 | 400 | 31 |
| SM40 with screw | 42*26.5*37 | 300 | 31 |
| SM51 with screw | 38*24*42 | 300 | 31 |
| SM76 with screw | 42*26*35 | 120 | 29 |
| Without screw |
| SM25 | 33.5*32*30.5 | 1000 | 28 |
| SM30 | 37.5*18.5*33.5 | 500 | 23 |
| SM35 | 37.5*18.5*33.5 | 400 | 22 |
| SM40 | 43*21.5*28.5 | 300 | 25.5 |
| SM51 | 40.5*20*35.5 | 300 | 25.5 |
| SM76 | 55*37*26.5 | 150 | 31 |
