SMA Female U. FL 1.13mm (D) Cable, SMA Ipex 1.13mm (D) Cable, U. FL 1.13mm (D) Pigtail Cable

Name: SMA Female U. FL 1.13mm (D) Cable, SMA Ipex 1.13mm (D) Cable, U. FL 1.13mm (D) Pigtail Cable
Brand: all-electronics-online.com
SKU: 730714802
Availability: InStock
Rating: 5 (80 reviews)

Price:	US $ 1.6-2/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

RF cable assembly/Jumper/Connector cable/Interface Cable Specifications:

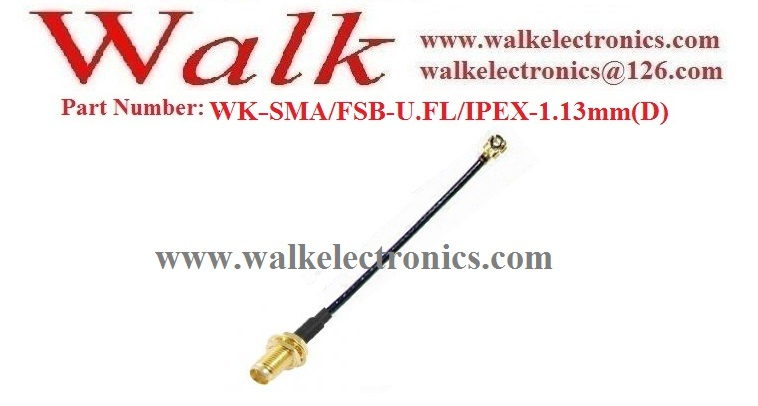

Part Number: WK-SMA/FSB-U.FL/IPEX-1.13mm(D)
Specification
Impedance	50 ohm
Connector 1	SMA female straight bulkhead
Connector 2	U.FL/IPEX female right angle
Cable type	1.13mm(D) cable
Cable length	150mm
Frequency range	DC/6GHz
Voltage withstand	1000V maximum
Jacket spark voltage	2500Vrms

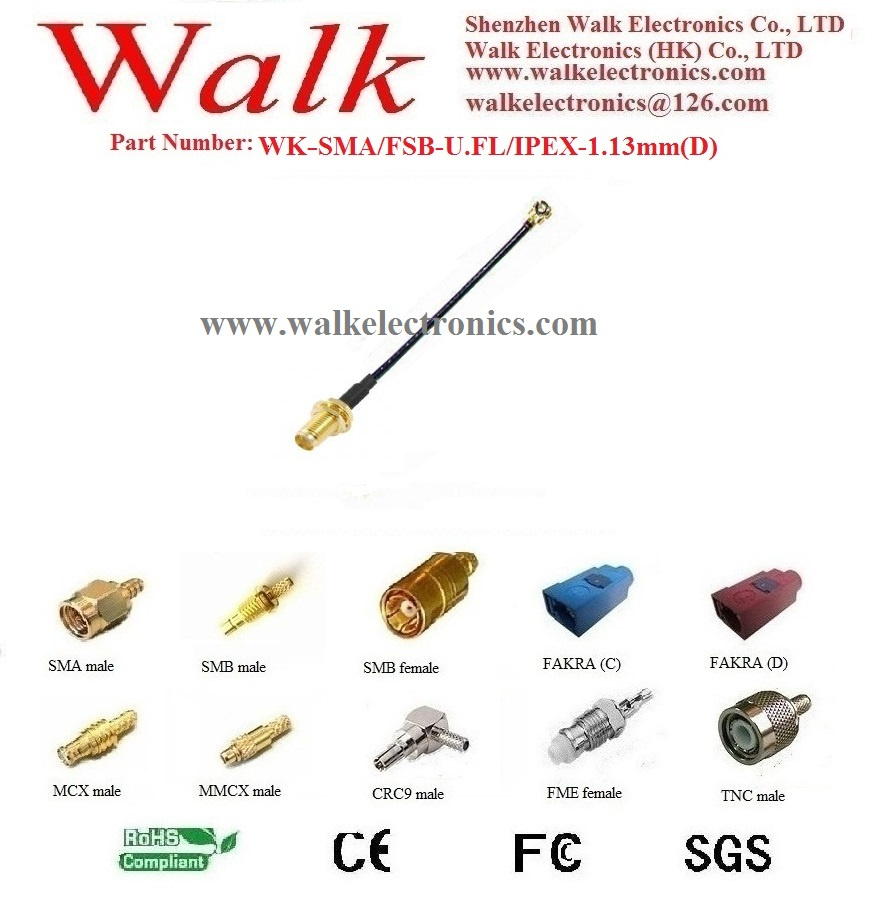

Other connectors	BNC, SMB, FME, MCX, MMCX, CRC9, TS9, TNC, etc
Other Cable type	0.81mm(D), 1.37mm(D), RG316, RG174, RG178, etc
Other Cable length	250mm, 500mm, 100cm, 200cm or others

Prod Model:	WK-SMA/FSB-U. FL/IPEX-1.13mm(D)
Connector1:	RP-SMA Female Straight Bulkhead
Connector2:	U.FL/Ipex Female Right Angle
Application:	RF Cable
Conductor Material:	Copper
Certification:	RoHS
Cover Material:	FEP
Type:	Coxial Cable

GPS antenna, GPS glonass antenna, GSM antenna, GSM 3G antenna, 4G lte antenna, WiFi antenna, combo antenna, RF cable assembly and RF connector manufacturer.

Shenzhen Walk Electronics Co., Ltd. is specialized in designing, manufacturing and selling all kinds of antennas, RF cable assemblies, connectors, and car electronics, etc.

Main products: GPS antennas, GPS/Glonass antennas, GSM antennas, 3G GSM antenna, 4G LTE antenna, WiFi antennas, Combo antennas, RFID antennas; RF cables, RFID cables, computer cables, and automobile cables; RF connectors, PCB connectors and adapters.

Our company always supplies good quality products with proper price. Poor quality products will cost much more for both customers and us. Our company supplies customers with quick delivery. We have built happy and long term business relationships with customers and trust each other.
