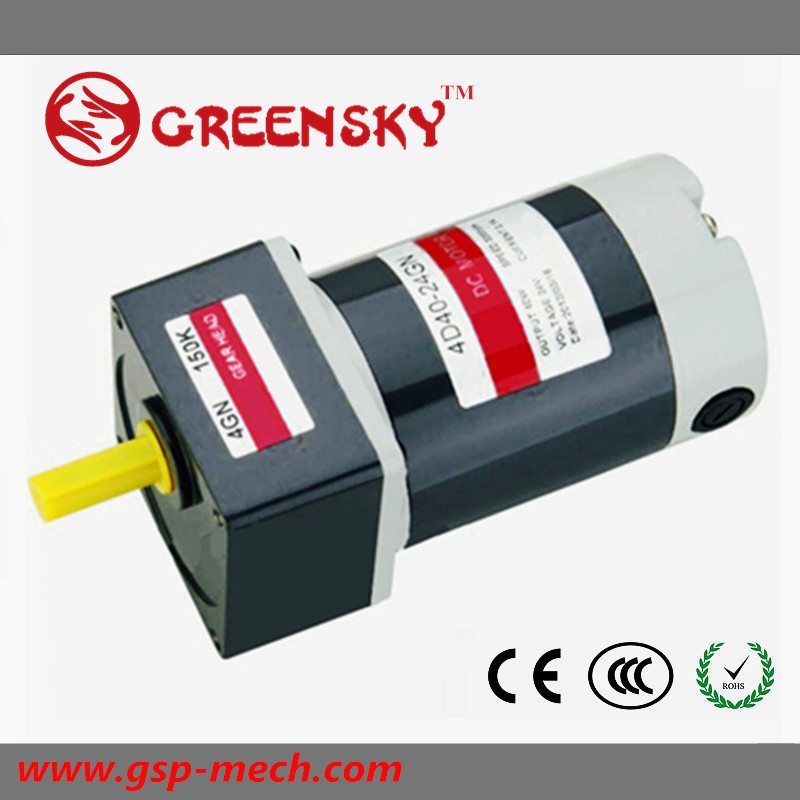

Small Pm Permanent Magnet DC Brush Gear Motor

Name: Small Pm Permanent Magnet DC Brush Gear Motor
Brand: all-electronics-online.com
SKU: 797244735
Availability: InStock
Rating: 4.7 (33 reviews)

Price:	US $ 15-99/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Item: Small PM Permanent Magnet DC Brush Gear Motor
Power range: 6W 10W 15W 25W 30W 40W 60W 90W 120W 180W 200W 250W 300W 400W 600W 750W Voltage range: 6V/12V/24V/48V/220V
Motor speed: 3000rpm
Output torque: upto 300Nm
Ratio and output speed of square type gear motor:

Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Speed	983	819	590	492	393	328	295	236	197	164	148	118	98	82	74	59	49	39	33	30	25	20	16	15

Ratio and output speed of round/planetary type gear motor:

Gear Ratio	3.65	5.36	6.55	8.63	14	19	25	28	34	45	58	67	81	91	103	119	128	146	165	192	232	302	393
Speed	822	560	458	348	222	159	122	107	89	67	52	45	37	33	29	25	24	21	18	16	13	9.9	7.6

Introduction

We have both DC gear motor and Brushless dc gear motor, including 6 kinds of products. The watt is from 6W to 750W, voltage is from 6V to 220V. The feature of our motors are steady work, low rpm and high torque, low noise, high efficiency and long life.

Specification

Square type gear motor

Ratio range of square type: 3:1 /3.6:1 /5:1 /6:1 /7.5:1 /9:1 /12.5:1 /15:1 /18:1 /25:1 /30:1 /36:1 /50:1 /60:1 /75:1 /90:1 /100:1 /120:1 /150:1 /180:1 /200:1
Output speed of square type: 1000rpm, 833rpm, 600rpm, 500rpm, 400rpm, 333rpm, 240rpm, 200rpm, 166rpm, 120rpm, 100rpm, 83rpm, 60rpm, 50rpm, 40rpm, 33rpm, 30rpm, 25rpm, 20rpm, 16rpm, 15rpm

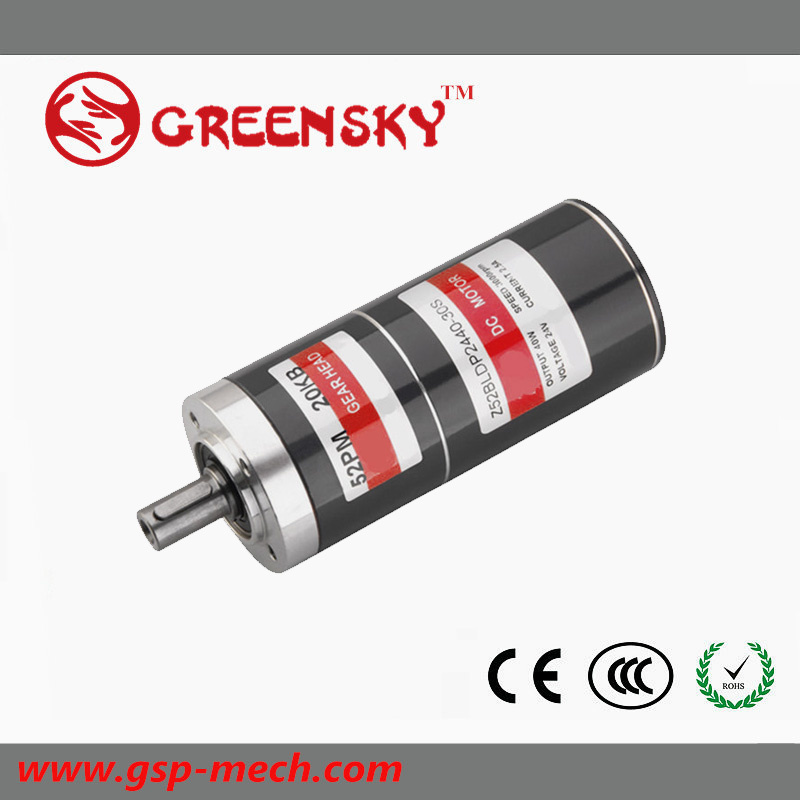

Round(planetary) type gear motor

Note:
The Voltage, Power and Speed can be customized according to your request under the allowed circumstance of adoptable dimension.

View Of Item

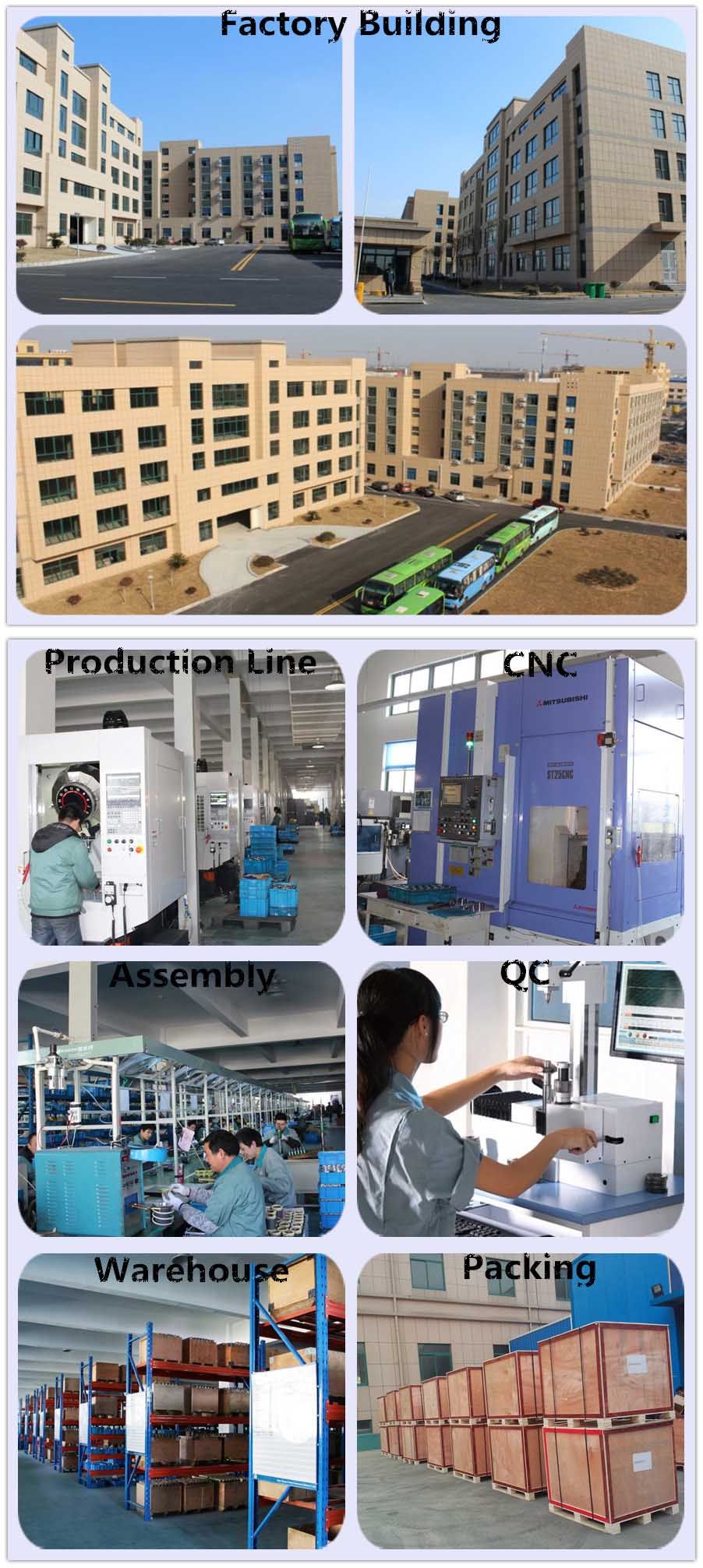

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.
Introduce: Greensky Mechanical Co., ltd is a subsidiary company of Greensky Power which is producing micro AC and DC gear motor, small AC gear motor, precision planetary gearbox for servo motor, and it has capability to design and develop the micro motor, customized motor and precision gearbox, motor controller with high quality.
Philosophy:We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

Greensky's Advantage

Price	Competitive & Reasonable. Our mission is to "Greening the World". Distributing massively in a cheap price is our strategy. We want more and more people are using renewable products.
Quality	Quality control is done by 4 processes: Manufacturer Control + Material Control + Production Control + Finished Goods Control.
Delivery	100% on-time delivery Guaranteed
Evaluation	100% Customer Satisfaction Guaranteed
Services	English, German, Japanese and Chinese sales representatives are available for One-stop full services.
Business type	Manufacture & Trading & EPC. Greensky Power has subsidiary company producing motor and gearbox which makes our price very competitive. At same time, Greensky Power has a subsidiary EPC company which can give professional technical support for complicated technical questions.
Experience	Our products have been sold to strict clients in Germany and Japan. They are all satisfied with our products. Delivering quality products and convenient communication service are our goal.

FAQ

1 Q:What infomation should I tell you to confirm the DC gear motor?

A: Model/Size B:Ratio and output speed C:Power and voltage D:Order quantity.

2 Q: What if I don't know which one I need?
A:Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.

3 Q:How long should I wait for the feedback after I send the enquiry?
A: Within 12 hours.

4 Q:What is your product warrenty period?

A:We offer one year warrenty since the vessel departure date left China.

5 Q:What industries are your motors being used?

A:Our gearboxes are widely used in the areas of household appliances and light industry,etc.

6. Q:How to delivery:

A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.

By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)

Others - We arrange to delivery goods to some place in China appointed by buyers.

7. When you place an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.

We hope you will enjoy cooperating with us.

Prod Model:	GSDC
Speed:	7.6-1000rpm
Power:	6W~1000W
Voltage:	12V/24V/48V/90V/220V
Dimension:	Can Be Customized
Series:	Square or Round
Torque:	0.08-300nm
Gear Ratio:	3/3.6/5/6/7.5/9/12.5/15/18/25/30/36/50/60/75-100
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	CCC, Ce, UL, Cu
Brand:	GS

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

GS motor makes the cool mechanism human by progress in thchnology and products innovation. GS bases on talents. Products are the morality of man. Wisdom and passion of us are the core power. GS

Motor has made her own stronger through the long-term experience and exerise. GS believes that we raise ourself continuously in future. GS will go on innovating forever.
