Small Semiconductor Heater Rce 016 Series

Small Semiconductor Heater Rce 016 Series
Price: US $ 10/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

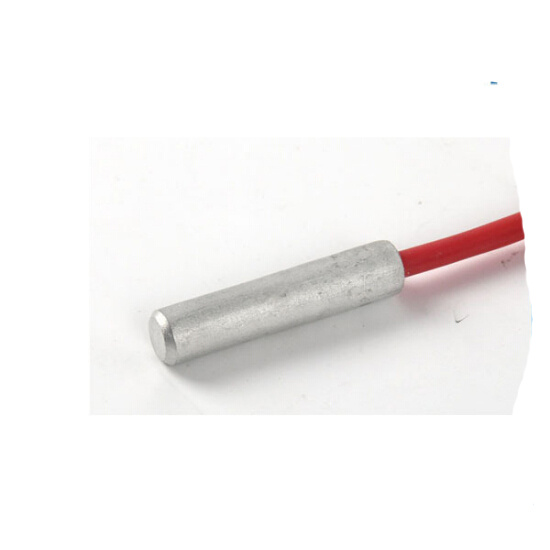

Small Semiconductor Heater RCE 016 Series

Small heaters designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.

Technical Data

Operating voltage120-240V AC/DC* (min. 110V, max. 265V)
Heating elementPTC resistor, self regulating and temperature limiting
Heater bodyaluminium
Mountingsee Accessories
Fitting positionvariable
Operating/Storage temperaure-45 to +70 °C (-49 to +158 °F)
Dimensionslength 45mm, Ø 10mm
Protection type/Protection classIP32 / II (double insulated)
ApprovalsVDE + UL File No. 150057
Accessoriesmounting clips (see illustration), Art. No. 09008.0-01
Noteother voltages on request

*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

Art. No.Heating capacity*Inrush current max.Surface temperature (approx.)ConnectionWeight (approx.)
01622.0-005W2.0A165°C2 x AWG 22 sheathed cable (silicone)20g
01623.0-009W2.5A175°C2 x AWG 22 sheathed cable (silicone)20g

* at 20°C (68°F) ambient temperature

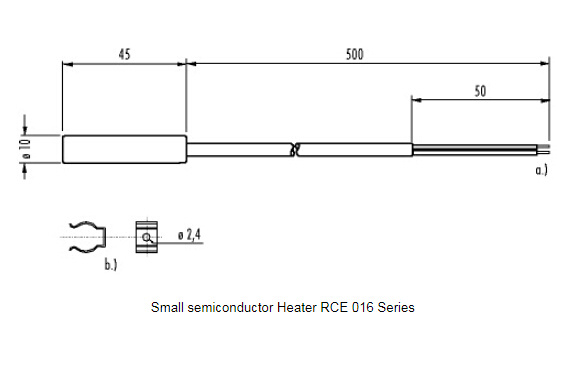

Technical drawing





Prod Model: RCE 016
