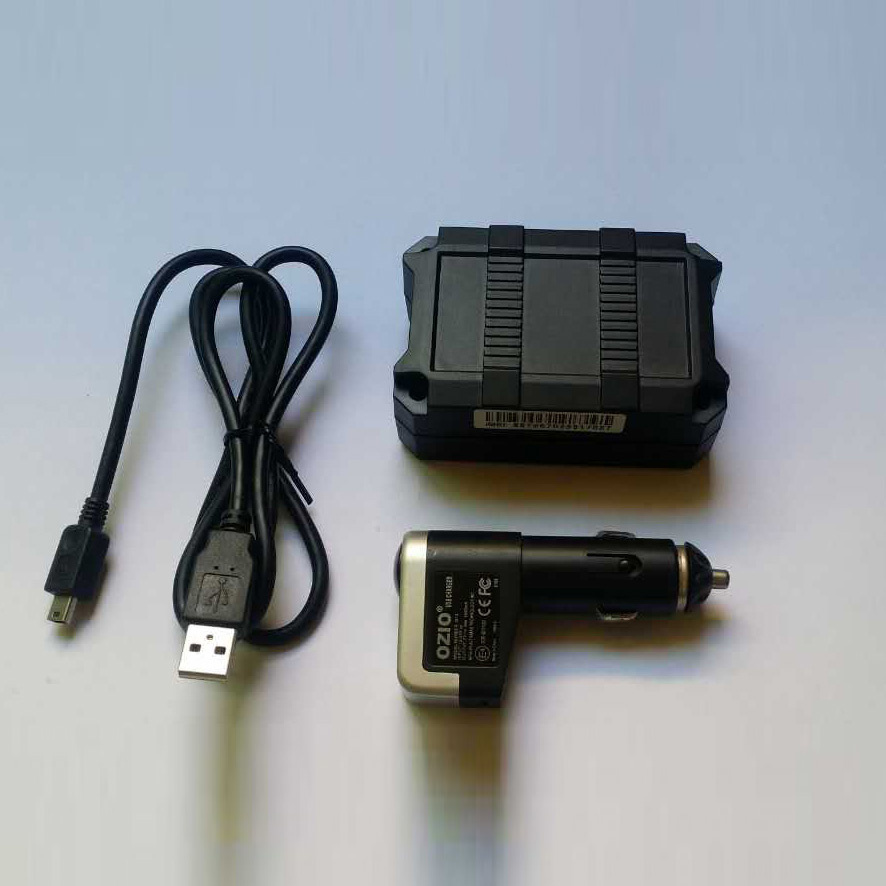

Small Size Built-in Antenna Easy Carried GPS Tracker with 15days Battery Life Time

Prod Model:	ATR-400
Dimension:	90*60*35mm
Weight:	100g
GSM Frequency:	GSM 850/900/1800/1900MHz
Accuracy:	10 Meters
Battery Capacity:	4400mAh
Type:	GPS Tracker
Use:	Automotive
Port Number:	Multichannel
Model:	Integration Type
Operating Principle:	GSM/GPS
Screen Size:	No Screen

Product Description

1. Introduction and Application

  ATR-400 is a self-powered long battery lifetime GSM/GPS tracker; it has no external wires for connection, which can be installed on any moving objects. It has simply designed appearance with internal battery and strong magnetic structure, 3 years working time, GPS/AGPS/Cell ID tracking supported.

2. Main Application


- Loans car
- Small fleet management
- Outdoor activities
- Valuables tracking
- Staff management and tracking
- Animals protection and tracking

3. Functions And Specifications

3.1 Functions:

1. Strong magnet attachment, no wiring installation
2. GPS/AGPS/Cell ID Technology
3. Waterproof and dust proof design
4. Shaking mode (Intelligent power saving, working time 1-6 months)
5. Standby mode (One data each day, standby time can reach to 1000 days)
6. Update at specified time (1-4 specified time every day can be set to update)
7. Real time tracking, perfect history trace
8. Distance tracking, history trace replay
9. Over speed alarm, Geo fence in/out alarm
10. GSM blind area data report
11. Battery low alert

3.2 Specifications:


Dimension	L*W*H: 90*60*35mm
Weight	100g
Battery	5400mAH/3.6V, Non-Rechargeable 4400mAH/4.2V, Rechargeable
Power Consumption	Standby 25mA, Sleep 20uA
Operating Temperature	-30ºC~75ºC
Operating Humidity	5%~95%
GSM Frequency	GSM 850/900/1800/1900MHz
GPS Chipset	High Sensitive GPS Module
GPS Sensitivity	-165dBm
Accuracy	10 Meters

3.3 Tracking Capability:


Tracking Frequency Scenes	4000mAH Rechargeable Battery	5400mAH Non-chargeable Battery
	720Tracking Points	1000 Tracking Points
Report Once Per Day	720Days=1.97 Year	1000Days=2.73 Years
Report 4 Times Per Day	180 Days	250 Days
Report Every 10 Minutes	5 Days	6.9 Days
Report in Real Time	12 Hours	16 Hours

4. Assembly and Installation

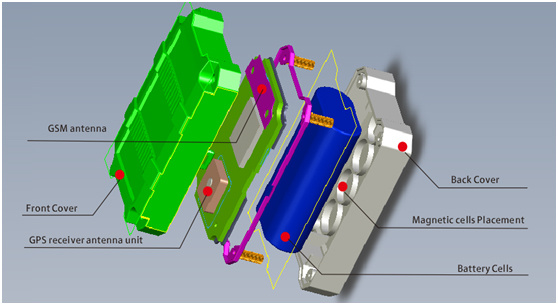

4.1 Un-assemble and insert Simcard and switch On battery

Remove the cover, load the sim card, turn on the internal power, check the LED light is flashing or not.

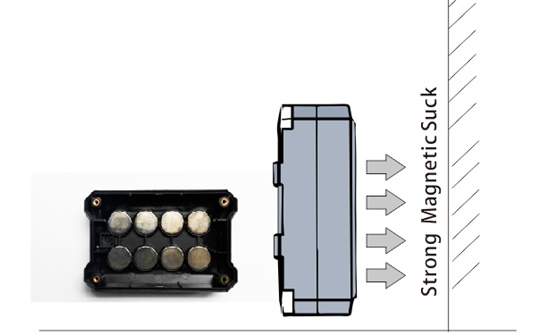

4.2 Suck to metal part with strong magnetic part
