| Prod Model: |
WNK51 |
| Range Down: |
100:1 |
| Output Signal: |
4~20m, Hart, Profibus-PA |
| Housing Material: |
Aluminum Alloy |
| Stability: |
0.15% of Url for 5 Years |
| Temperature Drift: |
0.03% of Url/10oc |
| Protection Class: |
IP66/67 |
| Measuring Medium: |
Gas, Steam, Liquid |
| Accuracy Grade: |
0.075% |
| Pressure Range: |
-100kpa~700bar |
Product Description

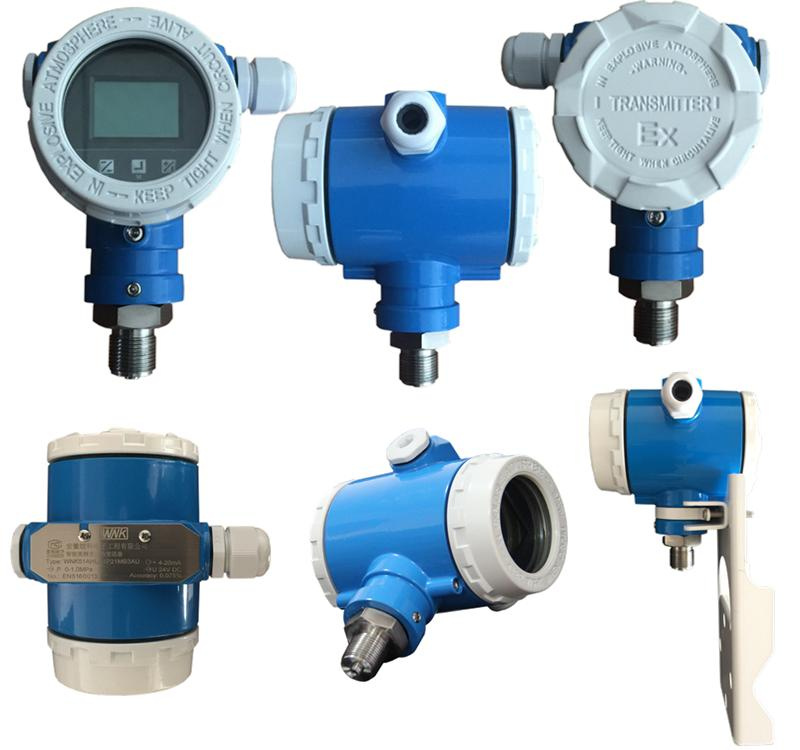

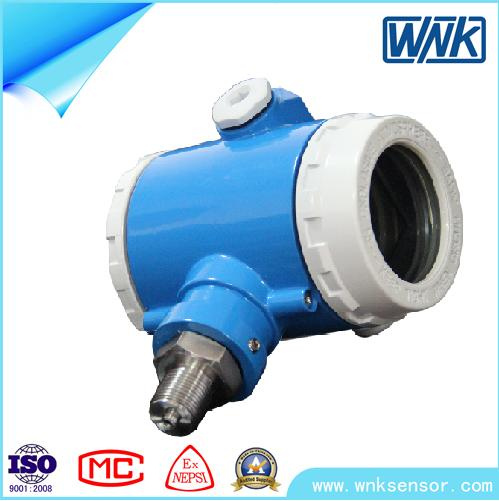

WNK51 Smart High Accuracy Gauge/Absolute Pressure Transmitter
Features- High reference accuracy up to 0.075%.
- Long-term drift ≤±0.25%URL for 1 year.
- Hart, PROFIBUS-PA or FF protocol for option.
- Intrinsically safe and flameproof explosion proof
- Range down ratio 100:1
- Smart type for easy calibration
Technical Data| Applicable media | liquid, gas and steam |
| Pressure range | -100KPa~70MPa |
| Accuracy | 0.075%, higher on request |
| Stability | ±0.15% of URL for 5 years |
| Temperature drift | ±0.03% of URL/10ºC |
| Output signals | 4~20mA, Hart, PROFIBUS-PA for option |
| Housing material | Aluminum14 |
| Process connection | M20×1.5;G1/2;1/2NPT; 1/4 NPT; customization |
| Protection class | IP66/67 |
| Ex-proof | Exia II CT4, Exia III CT6, Exd IICT6 |
| Power Supply | 10.5-55V DC 10.5-30V DC (recommend 24V DC) |
| Ambient temperature | -40 to 85ºC,-40 to 80ºCfor LCD header |
| Storage temperature | -45 to 85ºC,-40 to 80ºC for LCD header ; |
| Measurement | with display: 95*126*52 (mm) |
| without display: 95*115*52 (mm) |
| Net Weight | 1.7kg (without bracket or process connection) |
Ordering information| Model | Product Details |
| WNK51 | smart high precision pressure transmitter |
| Code | Approval |
| A | For non-hazardous areas |
| 1 | ExiaIICT6 |
| 2 | ExiaIICT4 |
| 3 | ExdIIBT6 |
| For other approvals or more information, please contact with us |
| Code | Output Code |
| A | 4…20mA |
| H | 4…20mA,HART |
| P | PROFIBUS-PA |
| F | FF |
| Code | Display |
| A | No display |
| L | LCD |
| Code | Housing; Cable entry; Protection |
| A | Aluminum14,M20×1.5,IP66/67 |
| B | Aluminum 14,G1/2,IP66/67 |
| C | Aluminum14,1/2NPT,IP66/67 |
| Code | Sensor range, for gauge pressure | Code | Sensor range, for absolute pressure |
| 1C | 100mbar (10kPa/1mH2O) | 2C | 100mbar (10kPa/1mH2O) |
| 1E | 250mbar (25kPa/2.5mH2O) | 2E | 250mbar (25kPa/2.5mH2O) |
| 1F | 400mbar (40kPa/4mH2O) | 2F | 400mbar (40kPa/4mH2O) |
| 1H | 1bar (100kPa/10mH2O) | 2H | 1bar (100kPa/10mH2O) |
| 1K | 2bar (200kPa/20mH2O) | 2K | 2bar (200kPa/20mH2O) |
| 1M | 4bar (400kPa/40mH2O) | 2M | 4bar (400kPa/40mH2O) |
| 1P | 10bar (1MPa/100mH2O) | 2P | 10bar (1MPa/100mH2O) |
| 1S | 40bar (4MPa/400mH2O) | 2S | 40bar (4MPa/400mH2O) |
| 1U | 100bar (10MPa/1000mH2O) | 2U | 100bar (10MPa/1000mH2O) |
| 1W | 400bar (40MPa/4000mH2O) | 2W | 400bar (40MPa/4000mH2O) |
| 1X | 700bar (70MPa/7000mH2O) | 2X | 700bar (70MPa/7000mH2O) |
| Code | Calibration,Unit |
| 1 | Sensor range,mbar/bar |
| 2 | Sensor range,kPa/MPa |
| 3 | Sensor range,mmH2O/mH2O |
| 4 | Sensor range,psi |
| Code | Diaphragm material |
| 1 | 316L |
| 2 | Alloy C-276 |
| X | Other special requirement |
| For other special kind of diaphragm, please contact with us. |
| Code | Process connection; screw |
| GA | Male thread G1/2, inner hole 3mm,316 |
| GB | Male thread G1/2, inner hole 11.4mm,316 |
| GC | Female thread G1/2, inner hole 3mm,316 |
| GD | Female thread G1/2, inner hole 11.4mm,316 |
| NA | Male thread 1/2NPT, inner hole 3mm,316 |
| NB | Male thread 1/2NPT, inner hole 11.4mm,316 |
| NC | Female thread 1/2NPT, inner hole 3mm,316 |
| ND | Female thread 1/2NPT, inner hole 11.4mm,316 |
| MA | Male thread M20×1.5, inner hole 3mm,316 |
| MB | Male thread M20×1.5, inner hole 11.4mm ,316 |
| JX | Other special requirement |
| For other special connection screw thread, please contact with us. |
| Code | Process connection material |
| 3 | 316 |
| H | Alloy C |
| Code | Overvoltage protection |
| A | No |
| M | Overvoltage protection |
| Code | Mounting bracket |
| A | No |
| U | Mounting bracket for pipe |
| Typical model#:WNK51 AHL A1P21 MA3 AU |

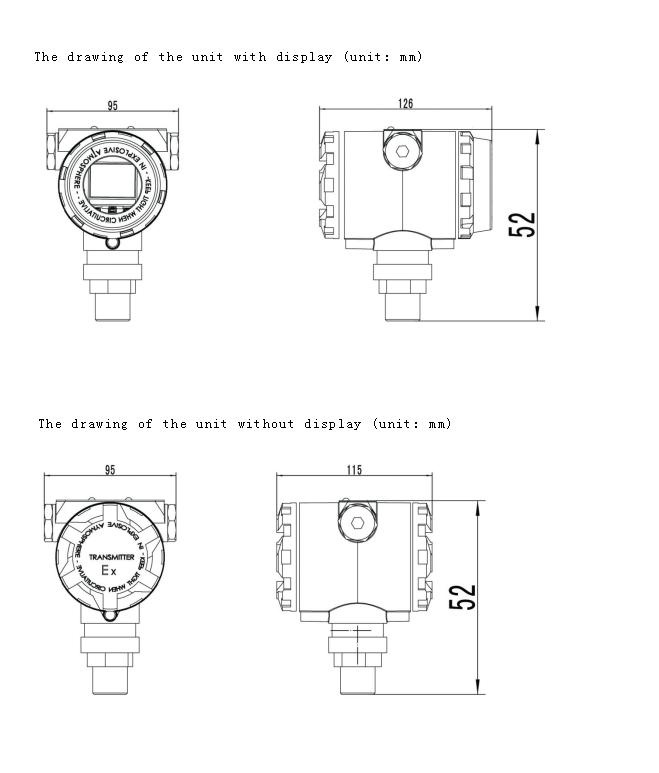

Installation diagram (unit : mm)
