Smart 4-20mA Temperature Transmitter for Burners & Boilers up to 1300 Degree C
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |

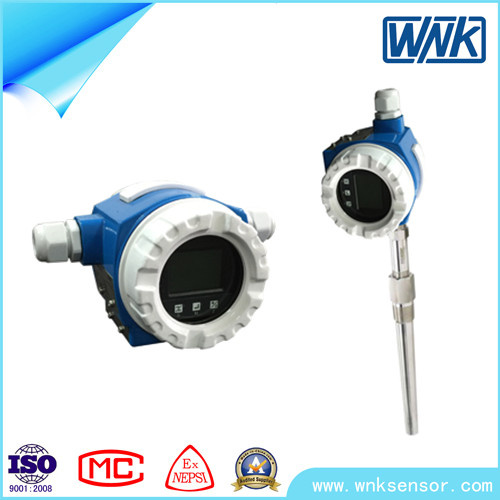

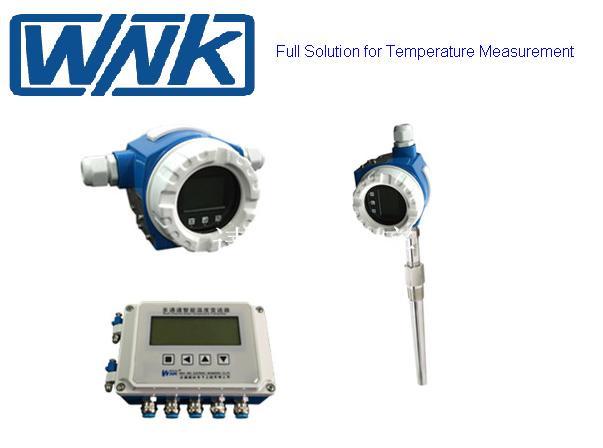

WNK6T Smart Temperature Transmitter with LCD DisplayOur PROFIBUS-PA field bus WNK6T temperature transmitter is approved by PROFIBUS Nutzerorganisation e.V. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable.Features-WNK6T Smart Temperature Transmitter with LCD Display
1. High precision, digital precision up to :±0.01ºC
2. Long-term drift<0.1/year
3. Install easily, more flexiable
4. To reduce the overall cost of installation,maintenance and running.5. 4~20mA/Hart/Profibus PA output all available
6 Self-diagnostics function
7. LCD display, Menu-guided operation.Technical data-WNK6T Smart Temperature Transmitter with LCD Display| Measuring media | liquid, gas and steam |
| Measuring range | -270~800 ºC (PT100 thermal resistor) |
| 0~1300ºC, (Thermocouple K) |
| Input | Thermocouple, RTD, MV, Resistive sensor |
| Power supply range | 9~45V (9~24V, Ex) |
| Output signal | 4~20mA/Hart/Profibus PA |
| Digital Accuracy | ±0.01ºC, PT100 input |
| Internal cold end compensation error | <0.25ºC±0.1%/10ºC |
| Temperature drift | ±0.05%/10ºCfull scale range |
| 0.1% between-10°C to 60°C |
| Effect of power supply on range | <0.005%/V full-scale range |
| Long term drift | <0.1/year |
| Ambient temperature | Ambient temperature | Storage temperature |
| T4 | Safe operation(T6) |
| -40...85ºC | -40...60ºC | -40...95ºC |
| Protection Class | IP66/67 |
| Relative humidity | ≤98%, condensation allowed |
| Electromagnetic compatibility | Accordance with EN 61 326 |
Ordering Sheet| Model | Product details |
| WNK6T | Smart temperature transmitter |
| Code | Approvals |
| A | For non explosion-proof areas |
| 1 | ATEX II 1/2G EExia II CT6 |
| 2 | ATEX II 1/2G EExia II CT6,overflow protection WHG |
| 3 | ATEX II 1/2D |
| 4 | ATEX II 1/3GD EExia II CT6 |
| 5 | ATEX II 1/3D |
| 6 | ATEX II 2G EEx d II T6 |
| 7 | ATEX II 3G EEx nA II CT6 |
| For other approvals or more information, please contact with us |
| Code | Communication, Display, Operation |
| A | 4...20mA HART,LCD,operation outside |
| B | 4...20mA HART,LCD,operation inside |
| C | 4...20mA HART |
| M | PROFIBUS PA,LCD,operation outside |
| N | PROFIBUS PA,LCD,operation inside |
| O | PROFIBUS PA |
| P | FF,LCD,operation outside |
| Q | FF,LCD,operation inside |
| R | FF |
| Code | Housing; Cable entry; Protection |
| A | Aluminum14,M20×1.5,IP66/67/NEMA 6P |
| B | Aluminum14,G1/2,IP66/67/NEMA 6P |
| C | Aluminum14,1/2NPT,IP66/67/NEMA 6P |
| Code | Type of the transmitter connecting with sensor |
| X1 | Integral type |
| X2 | Split type |
| For integral type, it need to choose the connection additional option |
| Code | Input type, Measurement range | Code | Input type, Measurement range |
| OA | Ohm,0~100Ω | RA | Thermocouple ,S |
| OB | Ohm,0~260Ω | RB | Thermocouple,R |
| OC | Ohm,0~390Ω | RC | Thermocouple,B |
| OD | Ohm,0~3900Ω | RD | Thermocouple,K |
| OE | Ohm,PT100 | RE | Thermocouple,N |
| OF | Ohm,PT1000 | RF | Thermocouple,E |
| OG | Ohm,CU50 | RG | Thermocouple,J |
| OH | Ohm,CU100 | RH | Thermocouple,T |
| DA | Voltage,-20~20mV | | |
| DB | Voltage,-50~50mV | | |
| DC | Voltage,-75~75mV | | |
| DD | Voltage,-750~750mV | | |
| Code | Standardization,unit |
| 1 | Standardization:rated range,°C |
| 2 | Standardization:rated range,°F |
| 3 | Standardization:rated range,°R |
| Code | Option |
| A | No |
| M | Mounting bracket for wall |
| U | Mounting bracket for pipe |
| Code | Additional option for intergral type(interface: transmitter to sensor) |
| F1 | M10×1 | F4 | M20×1.5 |
| F2 | M12×1 | F5 | M24×1.5 |
| F3 | M18×1.5 | F6 | Per customer requirement |
| Typical model#: WNK6T AAA X2RD 1U |
Why Choose us?1. We are professional manufacturer with own R&D and sales team, with more than 12 years producing experience in transmitters & sensors.
2. We have strict quality control system, each set product we do temperature compensation and aging test before shipment, so the quality is guaranteed.Delivery date4~7 working days after order confirmed.Customer specific requirement ODM/OEM is welcome.
| Prod Model: |
WNK6T |
| Output Signal: |
4~20m, 4~20mA/Hart, Profibus-PA |
| Housing Material: |
Aluminum Alloy |
| Stability: |
<0.1/Year |
| Temperature Drift: |
0.05% |
| Measuring Medium: |
Liquid, Gas |
| Accuracy Grade: |
0.075 |
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
