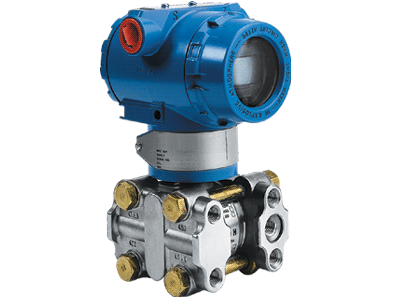

Smart Differential Pressure Transmitter
Price: |
US $ 170/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |
Prod Model: |
3351 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Accuracy: |
0.05% |
Measuring Range: |
-100PA to 40mpa |
Power Supply: |
24vdc |
Product Description

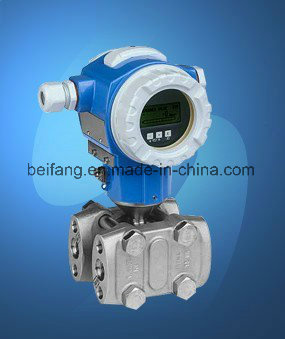

Smart Differential Pressure Transmitter
Output: 4-20mA / Hart
Range: -100PA to 40Mpa
Protection
3051 series is a digital pressure transmitter designed for industrial pressure measurement applications. The 3051 offer Configurations for Differential, gas, absolute pressure and vacuum liquid-Level measurements including integrated solutions for pressure, level and flow.
Features
1. Improved performance, increased accuracy, greater stability, Intelligent
2. Direct frequency signal output
3. Range Ratio: 100: 1
4. 200ms measurement rate
5. Parameter setting by pressing button
6. High zero anti-interference and stability plus ZSC and TSC.
7. Small stainless steel flange(2.7kg, 199mm), easy to be mounted
8. Process connection compatible with other products
9. Improved cold and hot stability by H alloy sheathed
10. Standard 4-20mA output with communication keyboard and RS485 interface, no need manipulator
Item | Smart Differential Pressure transmitter |
Process Fluid | Liquid, gas, vapor |
Measuring Range | -100Pa to 40Mpa |
Measuring Accuracy | ± 0.1% to± 0.25% FS |
Linear | ± 0.05% |
Ambient temperature | -40C---90C |
Humidity limits | 0-95%RH relative humidity |
Power Supply | 12V to 45VDC, 24VDC as standard |
Output Signal | 4-20mA |
Communication protocol | Hart |
Display | LCD |
Process Connections | 1/2NPT, 1/4NPT, M20*1.5 |
Protection Class | IP67 |
Intrinsically Safe | EEx ia IIC T5 |
Explosion proof | Ex D IIC T5 |
Housing material | Alumunium alloy |
