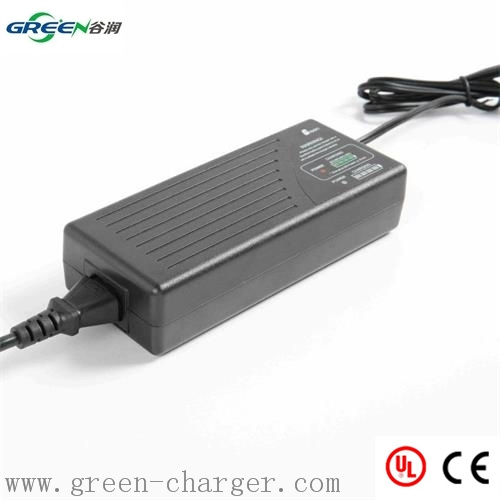

Smart Li-ion/Polymer Battery Charger

Name: Smart Li-ion/Polymer Battery Charger
Brand: all-electronics-online.com
SKU: 690105245
Availability: InStock
Rating: 4.4 (32 reviews)

Price:	US $ 12-15/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

G100-XXL LiPo Charger for 12V~48V Li-ion/Polymer Battery

Specification
INPUT: AC 100~240V
Suit for:12/25/37/48V 4~15 Cell Li-Ion/Polymer Type
Charge Process: CC(pre-charge)-CC(bulk)-CV-cutoff

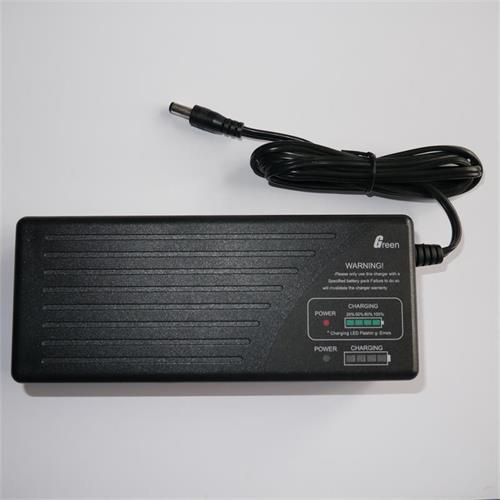

LED Indicator: With 20%~100% 4 LEDs Battery Fuel Gauge
Protections: Short-circuit, Reverse Polarity...
Safety Approval: CE cUL Approved
Housing (plastic) size: 170 x 71 x 41mm
Note: All models of this family have no MOQ limitation.

Charger of Series G100-XXL

Charger Models	Input	Output	Suit for Battery
G100-12L	100~240V	16.8V 4.5A	14.8 Volt (4Cells) 4~25Ah
G100-24L	100~240V	29.4V 2.8A	26 Volt (7Cells) 2~15Ah
G100-36L	100~240V	42.0V 2.0A	37 Volt (10Cells) 2~12Ah
G100-48L	100~240V	54.6V 1.7A	48 Volt (13Cells) 2~10Ah

General Specification for G100-24L

Input Voltage: AC 100~240V 50/60Hz 100-240VAC,50-60Hz
Input Current: Max. 1.6A Max. 1.6A
Output	G100-12F	G100-12L	G100-24F	G100-24L	G100-36L	G100-36F	G100-48F	G100-48L
C.V	14.4V	16.8V	28.8V	29.4V	42.0V	43.2V	54.0V	54.6V
C.C	5.0A	4.5A	2.8A	2.8A	2.0A	2.0A	1.7A	1.7A
Operating	-20ºC~40ºC
Cooling	No fan designing, natural convection. Do not cover the charger.
Charge process	Auto 4 stages: Pre-CC-CV-Cutoff Cut-off when charge finished.
Battery	25.9V 7 Cell Li-ion/Polymer Battery-pack.
Size	170 x 70 x 51mm
Enclosure	ABS+PC Plastic housing, inlet type C8 or C14
Weight	400g

An example shows the duration of 80% state charged for an empty battery.

Charger of Series G100-XXL

Charger Models	Input	Output	Suit for Battery
G100-12L	100~240V	16.8V 4.5A	14.8 Volt (4Cells) 4~25Ah
G100-24L	100~240V	29.4V 2.8A	26 Volt (7Cells) 2~15Ah
G100-36L	100~240V	42.0V 2.0A	37 Volt (10Cells) 2~12Ah
G100-48L	100~240V	54.6V 1.7A	48 Volt (13Cells) 2~10Ah

Prod Model:	G100-XXL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
For Use:	Standard Battery
Case:	PC+ABS Plastic
Color:	Black
Customized:	Yes
Recovery Function:	Yes
Short Circuit Protection:	Yes
MCU Controller:	Yes
Reverse Potection:	Yes
LED Dispaly:	Yes
Delivery Date:	2-3weeks
Type:	Li-Polymer Battery
Charger Type:	Li-ion Battery Charger
Charger Application:	Electric Wheelchair,Scooter,Tool,E-Bike
Nominal Voltage:	12/25/37/48V
Compatible Battery Type:	12V~48V
Size:	170 X 70 X 51mm

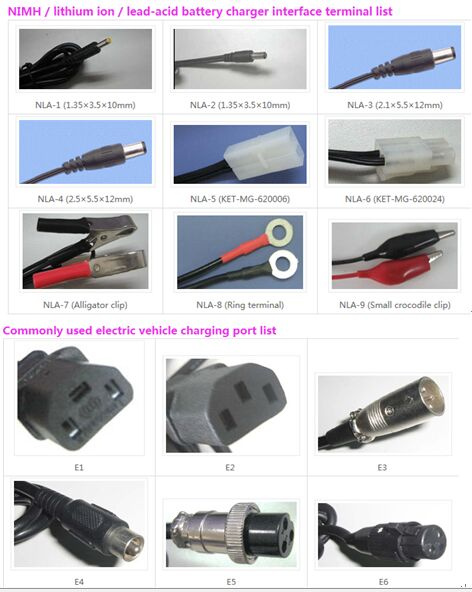

Socket Type:	UL, VDE, PSE, UK, SAA...

Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
