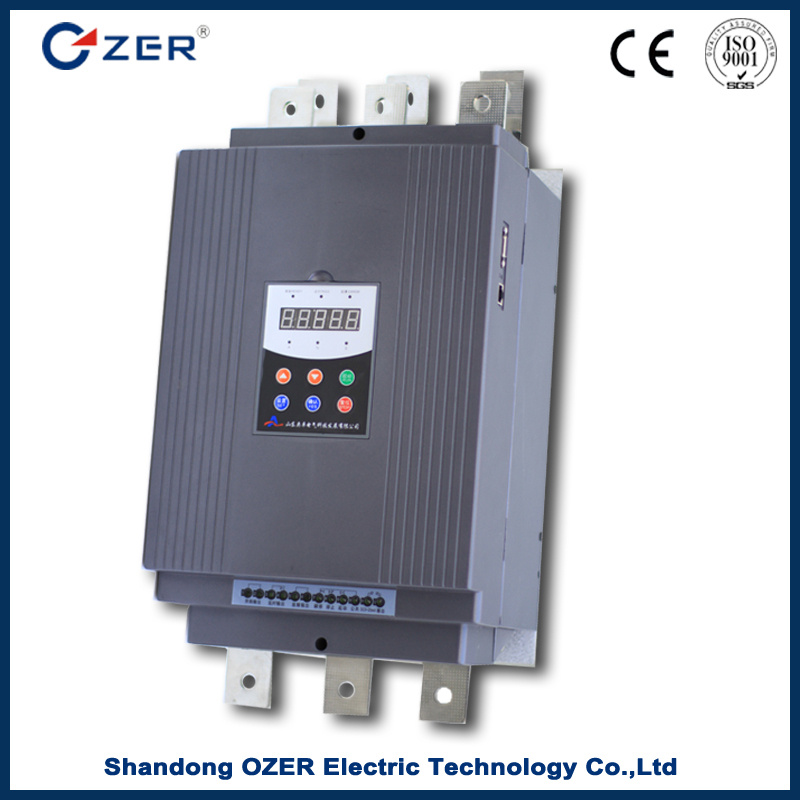

Smart Soft Starter for Motor Start

Smart Soft Starter for Motor Start
Price: US $ 260-18200/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: AZPR-3000
Control Power: AC380 20% Fluctuation 50Hz/60Hz
Motor Power: 15---355kw(Rated Voltage 380V)
Protection Class: IP20
Nominal Current: 30A—700A, a Total of 17 Ratings
Warranty: 12moths
Delivery Detail: 3~7 Days After Payment
Application: High Frequency Converter Transducer
Output Type: Triple
Principle Of Work: Vector Control Transducer
Switch Mode: PWM Control
Main Circuit Type: Voltage
Brand: Ozer

Product Description

AZPR3000 Series Soft Starter is a fusion can be the latest motor control theory and electrical protection technology and new equipment of modern computer technology, is the star / delta conversion, the ideal son even buck, buck magnetic motor starter equipment and other alternative products, effective reduce the motor starting current, reduce distribution capacity, effectively prevent power grid capacity increase investment, reduce the start-up capability of the motor and load equipment and extend the service life of the motor and related equipment. Soft stop function effectively solve the parking problem surge inertial system, it is the traditional boot device can not be achieved, with six unique boot mode, able to adapt to complex motor and load conditions, to achieve the perfect start effect, with a sound and reliable protection, effective protection of the safe use of electric motors and related equipment, motor soft starters intelligent application of network technology makes motor control technology to adapt to the higher power requirements of the rapid development of automation technology.

Product parameter:
ItemsContent
Control PowerAC380 20% fluctuation,50HZ/60HZ
Three-phase power supplyAC380 20% fluctuation,50HZ/60HZ
Nominal current30A-700A,A total of 17 ratings
Motor Power15---355KW(Rated voltage 380V)
Applicable motorThree-phase asynchronous motor
Start modeSuddenly soft start, current limit start, voltage ramp start
Parking InformationFree stop, soft stop (1-600 seconds adjustable)
Relay outputDelay running output; fault output; full voltage bypass output
Start frequencyDo frequent start, we recommend no more than 10 times per hour
Protective functionInput phase, output overload, overcurrent, overheating, etc.
Protection classIP20
cooling methodNatural cooling
MountingWall-mounted


Environmental conditions
Ambient temperature -10 ºC ~ + 50 ºC, relative humidity <95% 15-25 ºC, non-flammable, explosive, corrosive gas, no conductive dust, indoor installation, vibration <0.5G altitude of over 2000 meters readily applicable

Product spectification:
Specifications Modelrated power(kw)Current RatingDimensions

Mounting dimensions

net weight
W1H2dW2H2D
AZPR-30111123146270162132249M6<3.5
AZPR-30151530146270162132249M6<3.5
AZPR-301818.537146270162132249M6<3.5
AZPR-30222243146270162132249M6<3.5
AZPR-30303060146270162132249M6<3.5
AZPR-30373775146270162132249M6<3.5
AZPR-30454590146270162132249M6<3.5
AZPR-305555110146270162132249M6<3.5
AZPR-307574150146270162132249M6<3.5
Specifications Modelrated power(kw)Current RatingDimensions

Mounting dimensions

net weight
 W1H1DW2H2D
AZPR-307575150260530211196380M8<20
AZPR-309090180260530211196380M8<20
AZPR-3115115320260530211196380M8<20
AZPR-3132132264260530211196380M8<20
AZPR-3160160320260530211196380M8<20
AZPR-3085185370290560240260470M8<23
AZPR-3200200400290560240260470M8<23
AZPR-3250250500290560240260470M8<23
AZPR-3280280560290560240260470M8<23
AZPR-3320

320640330600240300510M8<26
AZPR-3400400800330600240300510M8<26
AZPR-35005001000330600240300510M8<26

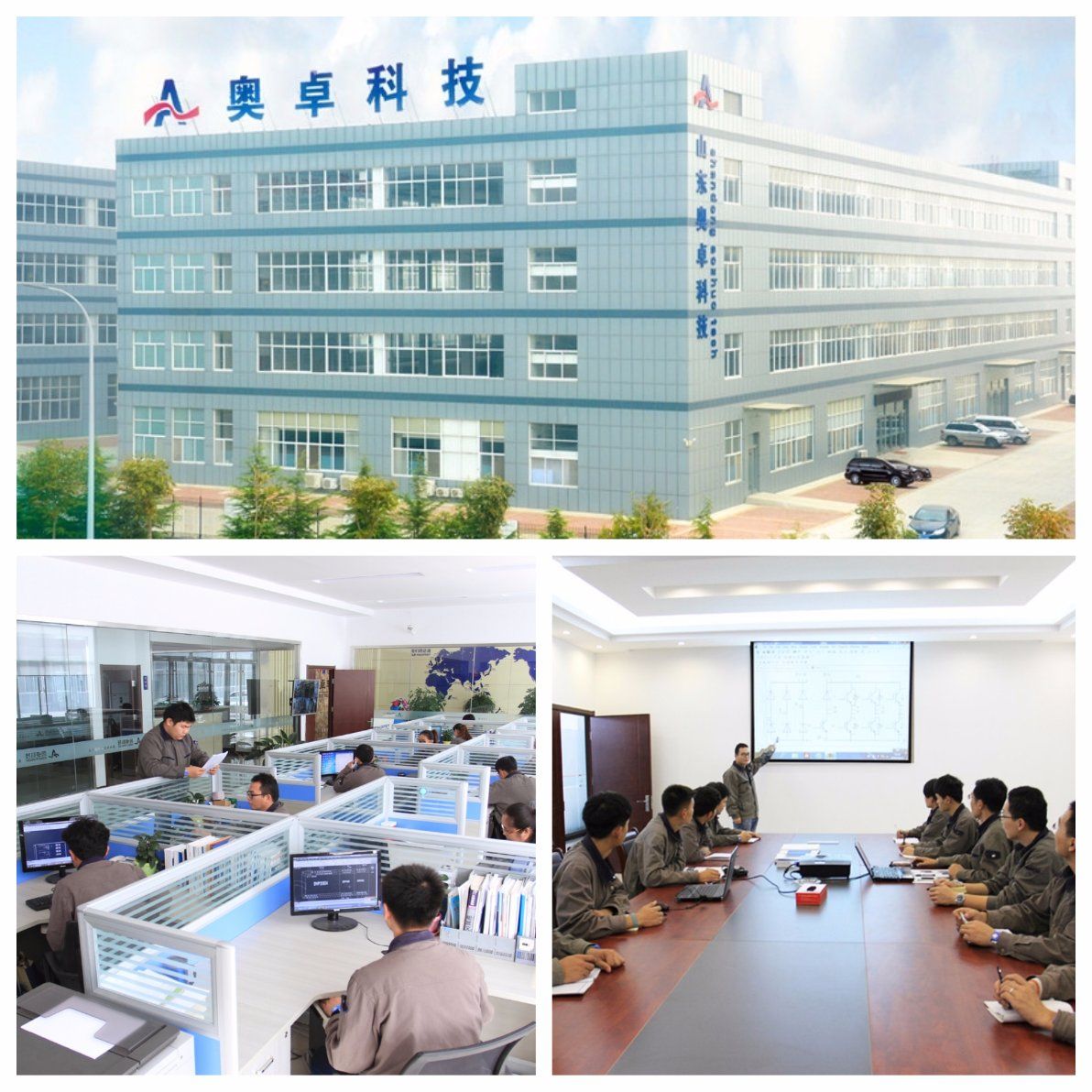

Company profile

Shandong Ozer Electric Technology Co.,Ltd, which is a private joint-equity enterprise integrating development, production and sales of software and equipment in the field of energy saving and electric automation control. The product covers smart soft starter,frequency converter, PLC and DCS control system; the company possesses first-rate talents, technologies and equipment, and powerful product R&D center, and the technical level always ranks top in China.
We have rich experience in design of various types of VFD for various applications viz. the overseas market of ozer has covered lots of countries and regions over Southeast Asia, South Asia, the Middle East, Africa and Europe etc.





Product Certifications:

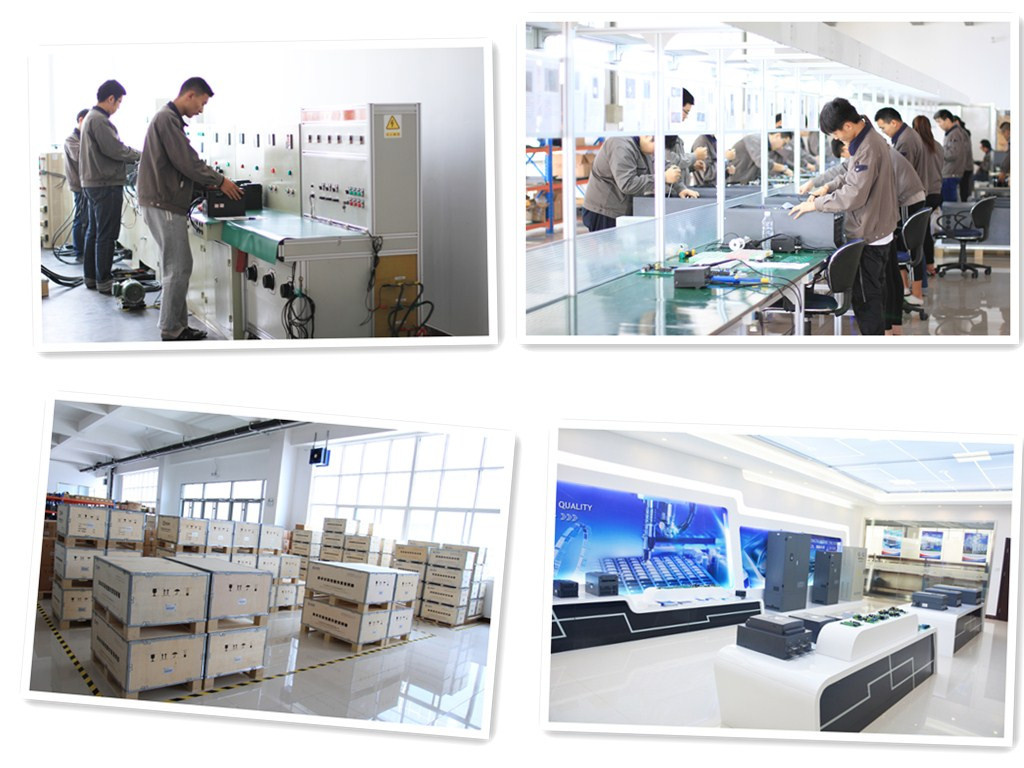

Workshops and packing :
