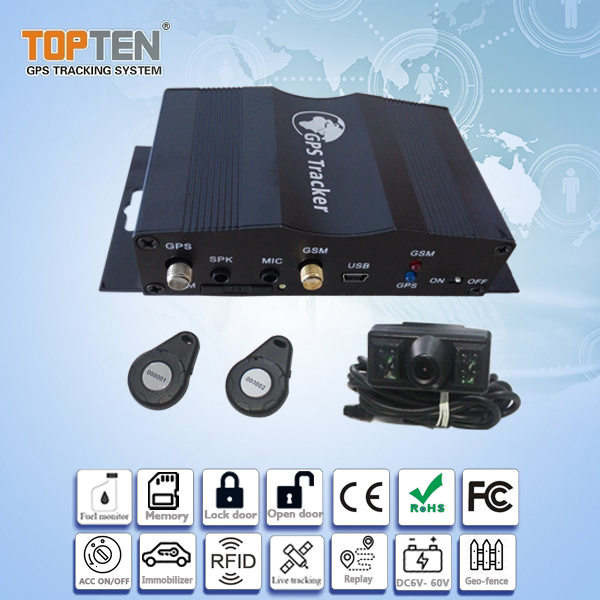

Smart Vehicle GPS Tracker with Camera Tk510
(all gps device with CE,FCC,ISO9001)TK510 Car/Truck GPS tracker is the most advanced & cost-effective solution for vehicle security, real-time tracking & fleet management.
It has the following unique functions:

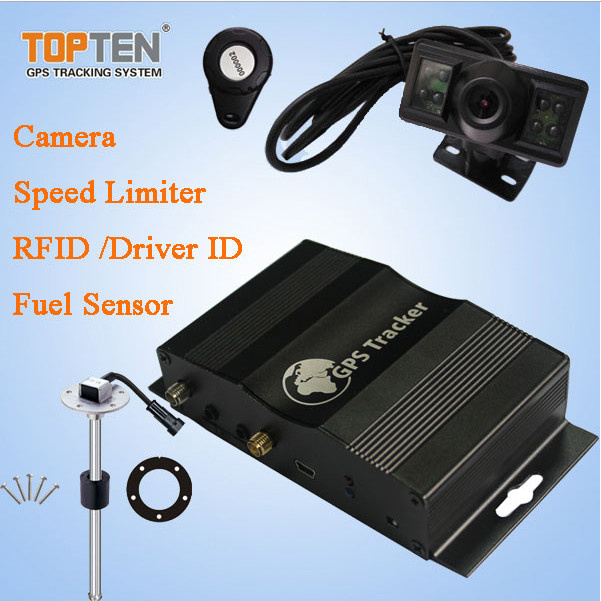

Camera for snapping & monitoring via MMS, email or platform;
RFID car alarm system with long-distance tag;
Crash alarm, fuel leaking alarm, speed limiter & fatigue driving alarm.Feature for TK510 vehicle gps tracker:1. Track on SMS, Web or APP;
2. RFID for personnel identification, supports 2.4G active RFID reader & Mifare1 IC card reader
3. Support 2.4G keyless alarm functions, arm/disarm by SMS/web/calling/RFID tag;
4. Check the car's real physical address (such as city & street name.);
5. Check the location by LBS directly even there is no any GPS signal;
6. Prompt inputs(input1~input5) status detection;
7. Voice monitoring & 2-way talking(optional);
8. Engine on alarm, door open alarm, power failure alarm, vibration alarm, movement alarm, Geo-fence alarm, over-speed alarm, SOS alarm, anti-tamper alarm;
9. Crash alarm, when there is crash & it can detect it automatically;
10. Fatigue driving alarm, if continuous driving time is over the limitation, the alert will be triggered;
11. Track by time interval or by distance;
12. Stop the car safely by SMS or Web;
13. Snap photo and send out via MMS &Email when some alarms happen, snap the photo via platform (option);
14. Speed limiter, when the speed is over limitation, the siren will sound to warn driver & relay will response to slow down the car automatically;
15. Lock/unlock the car door remotely by SMS/platform or automatically according to the status of arm/disarm;
16. Upgrade the normal car alarm with GPS tracking function
17. Support analog input for fuel monitoring, fuel loss alarm;
18. I/O: 5 digital inputs, 5 digital output, 2 analogue inputs
19. Voltage:10V-60VDC, suitable for motorcycle, car or big trucks;
20. Smart Power save design for protection of vehicle battery;
21. Trace optimization when vehicles turns a corner;
22. 8M-bit offline data logger, it can store up to 9,090 waypoints;
23. User-defined SMS contents in different languages;
24.Industrial design with high performance ARM7 processor;
Power Supply | +6.0 ~+45VDC/1.5A |
| Backup Battery | Rechargeable 3.7V 500mAh Li-ion battery |
| Dimension | 110mm x 80mm x 30mm |
| Weight | 180g |
| operating temprature | -20 ~ 85ºC |
| Humidity | 0 ~ 95% |
| Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz |
| GPS chipset | U-blox7 chipset |
| GPs sensitivity | -162dBm |
| Channels | 56 channels |
| Position accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| LED | 2 LED lights to show GPS/GSM working status. One SOS button |
| Button | SOS |
| Interface | 5 inputs,5 outputs, 4 A/D ports, MIC & Speaker port, camera port, RS232
port, SD card slot |

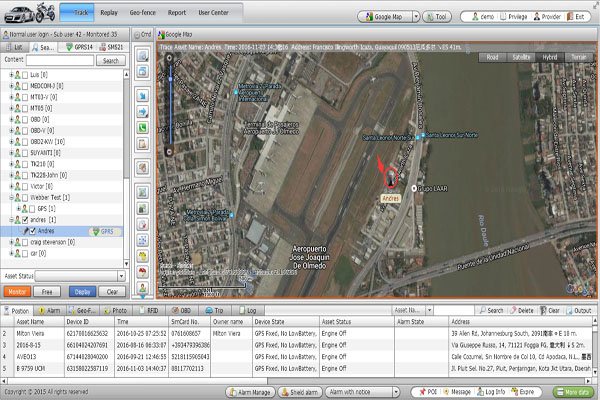

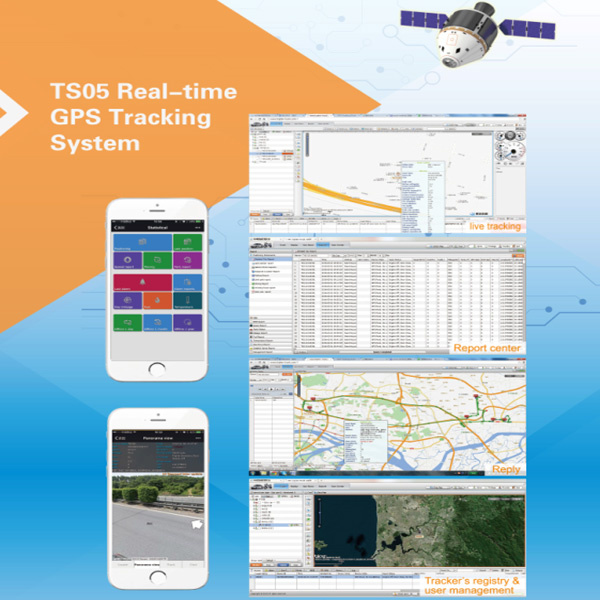

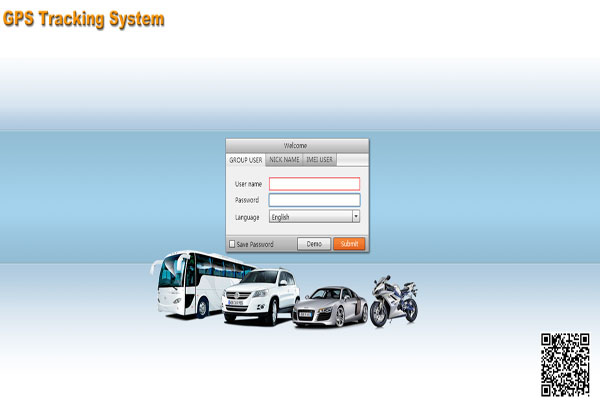

Platform Tracking System: www.topten-track.com username: abcdeee, password: 111111

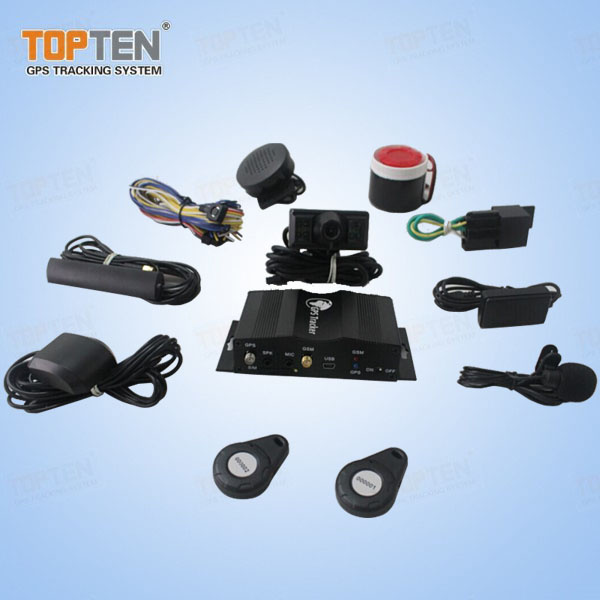

Packing List: | Main unit | 1pc |
| GSM antenna | 1pc |
| GPS antenna | 1pc |
| SOS button | 1pc |
| Relay | 1pc |
| Wiring | 1set |
