SMD 1ws Surface Mount Power Resistor

Name: SMD 1ws Surface Mount Power Resistor
Brand: all-electronics-online.com
SKU: 791900745
Availability: InStock
Rating: 4.6 (104 reviews)

Price:	US $ 0.02-0.05/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMD-1WS
Product Name:	SMD-1ws Surface Mount Power Resistor
Quality Certification:	ISO9001: 2008
Environmental Certification:	ISO14000
Rated Power:	1W
Dielectnic Strength:	500V
Tolerance:	5%
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	SMD Resistor
Material:	Wire-wound Resistor
Package Type:	Surface Mount
Brand:	Liwang

Product Description

Features of SMD-1WS surface mount power resistor:

High temperature resistance and good insulation
This special design for automatic surface gelling homework
High stability and high reliability.
Resistance tolerance: ±5%

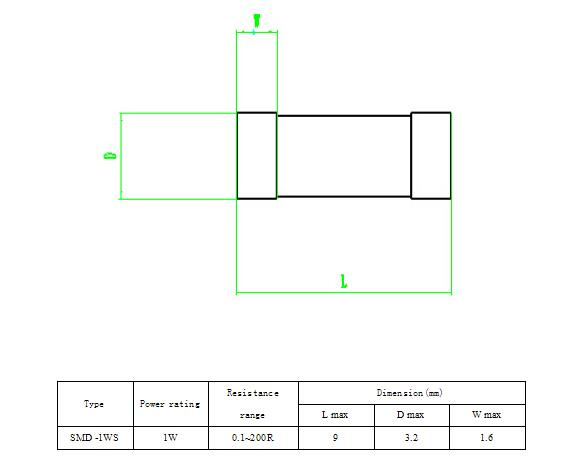

Dimensions of SMD-1WS surface mount power resistor:

Item	Requirements
Short time overload	2.5 times RCWV 5s ΔR≤±(5%R+0.1Ω)
Moisture resistance	ΔR±(5%R+0.1Ω)
Resistance to soldering heat	350ºC±5ºC 3s±0.5s
Temp cycling	ΔR±(2%R+0.05Ω)
Dielectric with Standing Voltage	500V
Insulation resistance	100MΩ
Temp Coefficient(ppm/ºC)	400PPMºC
Operating Temp Range	-55ºC~+125ºC
Effect of soldering	95% COVERAGE MIN
Load life	1000H; 1.5H"ON", 0.5H "OFF"

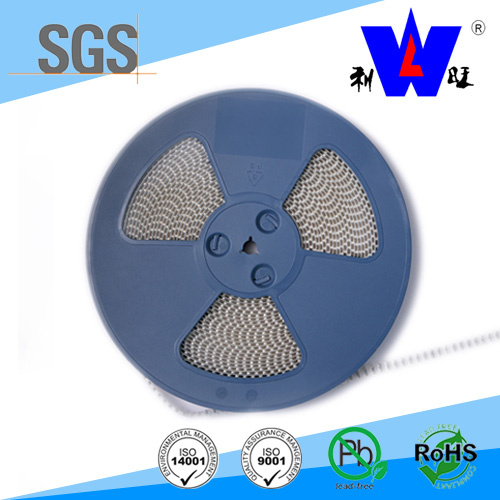

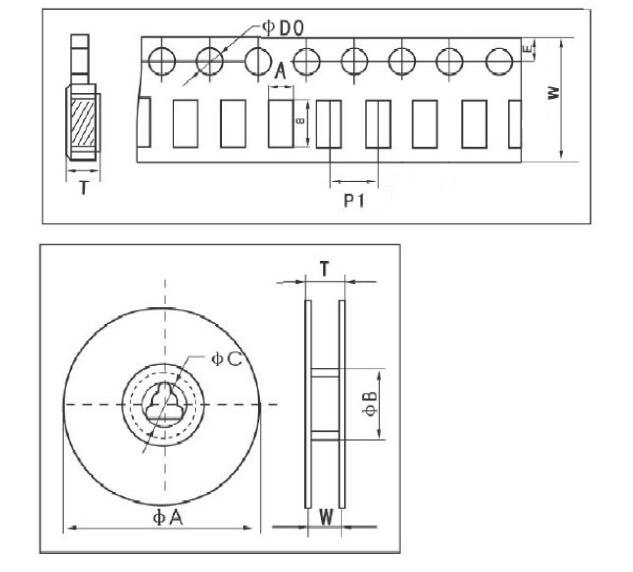

Packaging of SMD-1WS surface mount power resistor:

Advantage of our company:
1. Competitive price
2. High stability and high quality
3. Prompt shipment
4.professional & experienced management team
5.on-time delivery

Selling point of our company:

1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand.

Don't hesitate to contact us if you have any interest in our products,welcome to provide us your specification,we will submit the quotation shortly.

It's our pleasure to be on service of you.We look forward to receiving your reply.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
