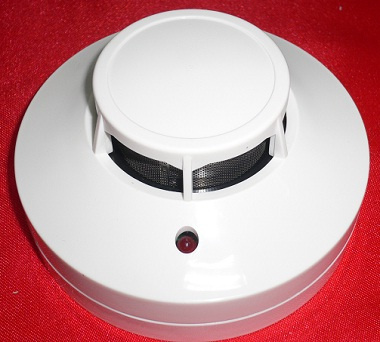

Smoke/Fire Detector/Sensors for Alarm Systems (TA-2988)

Name: Smoke/Fire Detector/Sensors for Alarm Systems (TA-2988)
Brand: all-electronics-online.com
SKU: 681606242
Availability: InStock
Rating: 4.8 (113 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Alarm Smoke Detector TA-2988

For more details, please:
Contact: Tina
Sype: Dana_z88
TEL: 0086 -13316516142

Introduction
TA-2988 series optical smoke detectors are designed to respond to a wide spectrum of fires and ease installation. Every unit is individually tested and calibrated to ensure high reliability and prevent false alarms
Advanced photoelectric smoke sensing technology
Durable sensor head; Excellent smoke access
Ar (auto reset) function for security systems(optional for 4 wire models)
N/c (normal/close)-n/o (normal/open) selectable relay output
Easy installation and maintenance
Modern design (white and beige colors)
Freq.: 3~5 sec
Sensor base: Standard and shottky diode
Remote led
Comply with en54 and ce
Smoke sensitivity: EN 54-5/7: 2000 standard
Detection range: 100 square meters rating for smoke sensor; 50 square meters rating for heat sensor
Start-up current: 70 μ A maximum
Alarm impedance: For 2-wire models: 100Ω +3v max; 560Ω +3v max (red led open circuit)
Alarm indicator: Led continuously emitting red light
Temperature range: -10 ° C to 50 ° C
Remote output: 15 ma max, diode gate
Humidity: 0 to 95% rh, noncondensing
Alarm contact: For 4-wire: N/o or n/c operation
Form a: 1.0a@30vdc/0.5a@125vac
Dimensions: 10mm (dia) x 46mm (ht) with base
Weight: 130g/set with base

specification:
Name:	smoke/fire detector/sensors(TA-2988)
Model:	PARADOX 643LCD
operating voltage:	DC 12V-24V
Monitoring current:	≤50μA
Alarm current:	≤20mA
Freq	3~5 sec
smoke sensitivity:	EN 54-5/7:2000 standard
alarm contact:	for 4-wire: n/o or n/c operation
detection range:	100 square meters rating for smoke sensor; 50 square meters rating for heat sensor
humidity:	0 to 95% rh, noncondensing
dimensions:	10mm (dia) x 46mm (ht) with base
temperature range:	-10to 50centigrade
remote output:	15 ma max, diode gate
weight:	130g/set with base
Operating environment:	temperature"-10-+50 centigrade
Operating environment:	relative humidity:≤95%(40±2centigrade)
connection method:	Two-wire and non-polarity system
suitable situations:	Hotel,apartment, office,machinery room and entertainment places
suitable situations:	The places having risk of the electric fire.
None-suitable situations:	The places where smoke detained is usual
	The places where black smoke may be produced in the fire.
	The places there are the dust,fop,steam,oily fog and other decay gas

Prod Model:	TA-2988
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Gas
Type:	Sensor
