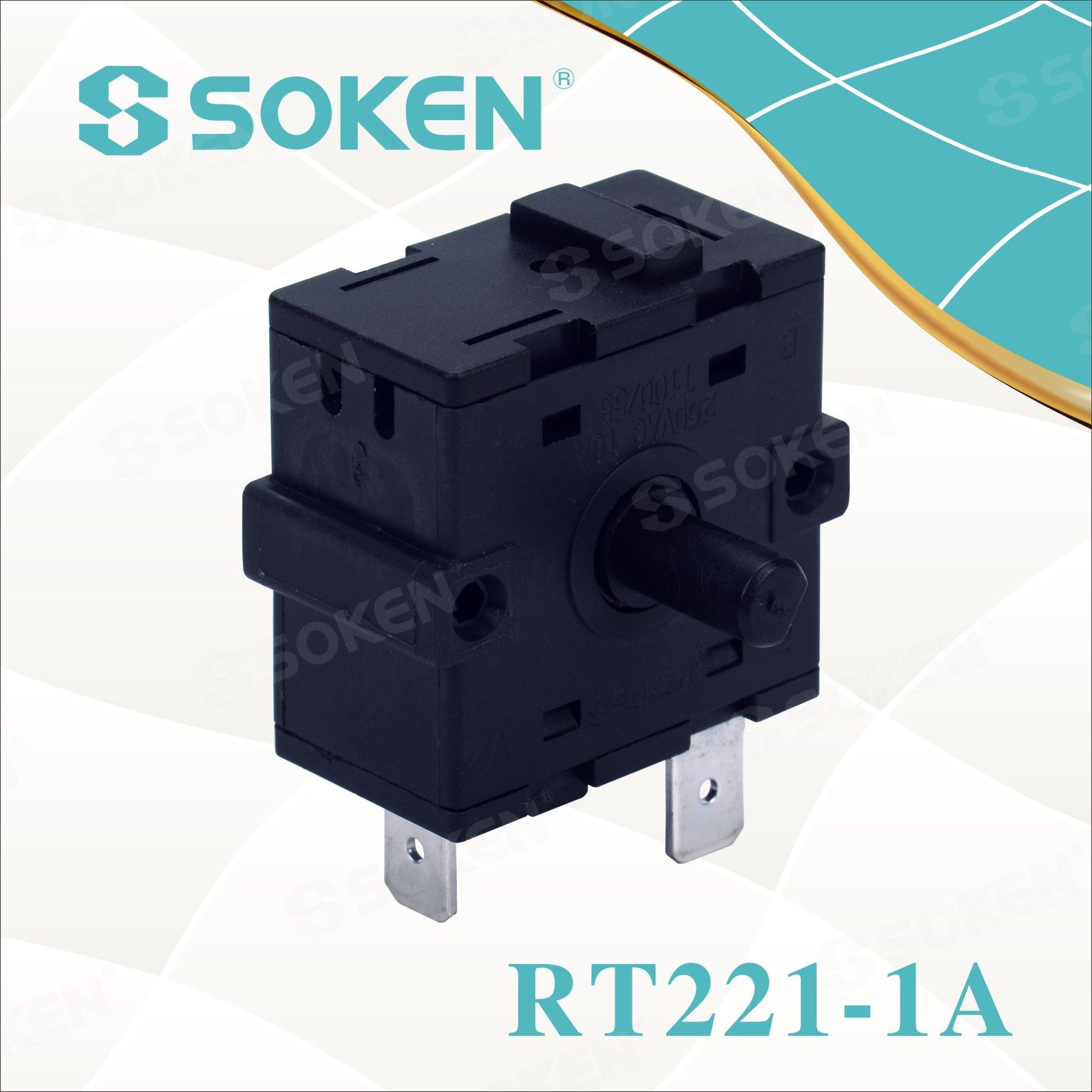

Soken Rotary Switch

Soken Rotary Switch
Price: US $ 0.3-0.4/Piece
Min Order: 1000/Piece
Pay Type: T/T,D/P,Western Union
Specification
Rating16A 250VAC
Operating
temperature
-25~85ºC
Contact resistance100mΩ Max
Insulation resistance 100mΩ Min
Electrical life10000cycles(16A 250VAC)
Applicable standardIEC61058-1

Material list
Contact leg        Brass T=0.8mm
ContactSilver alloy
TerminalsBrass T=0.8mm
CasePA66
GearPA66

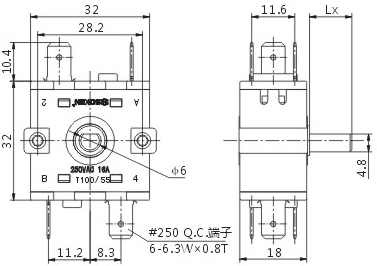

Drawing

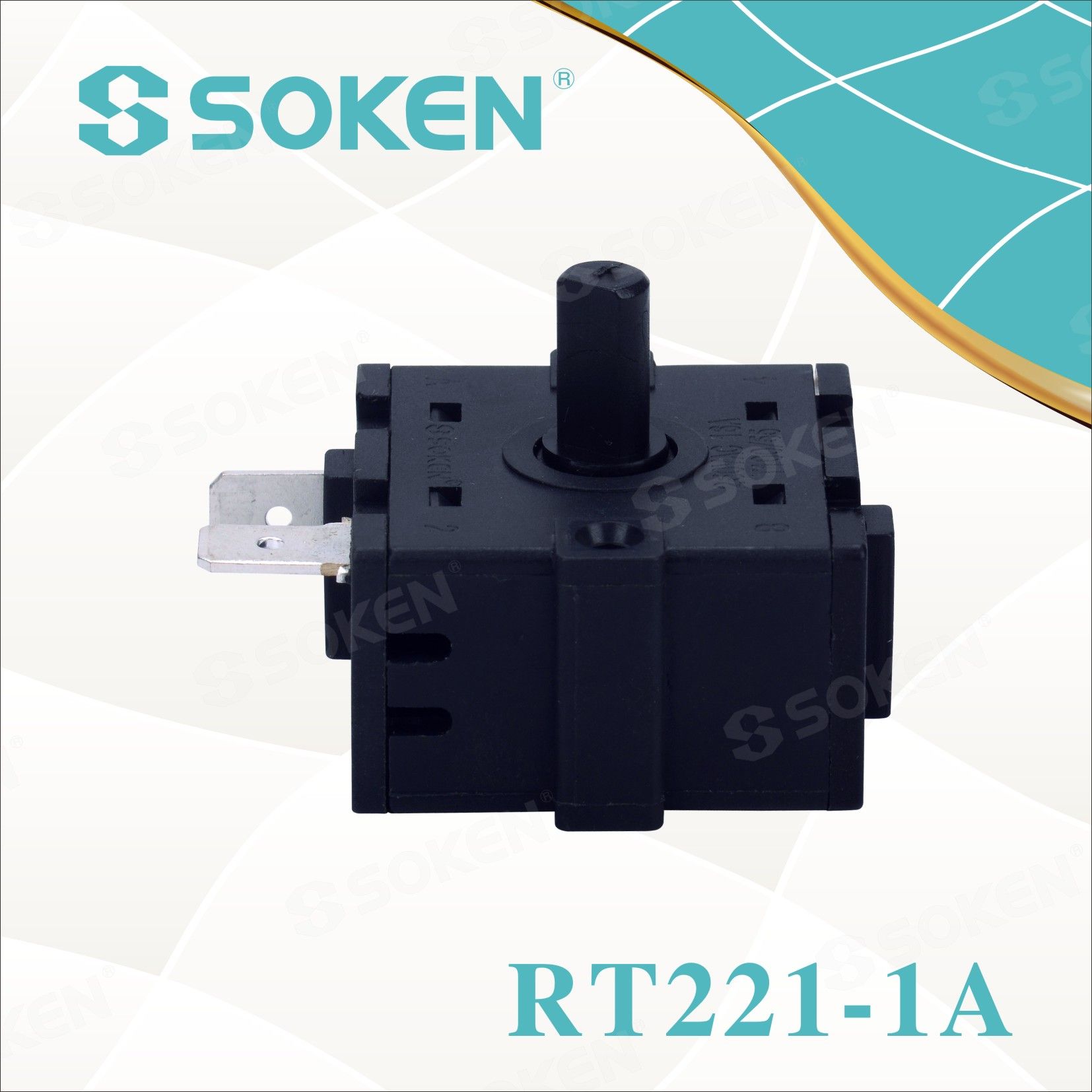

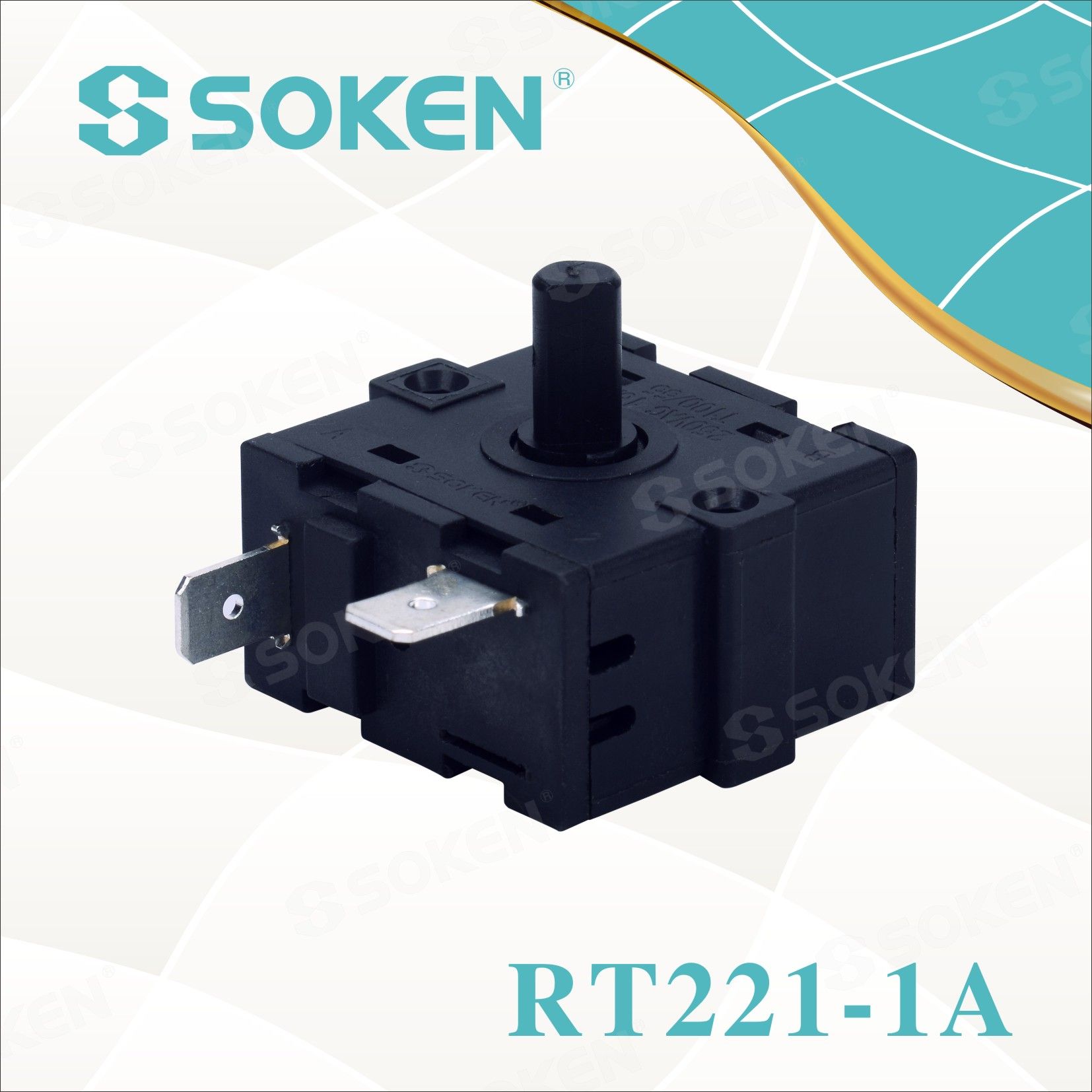

Product display

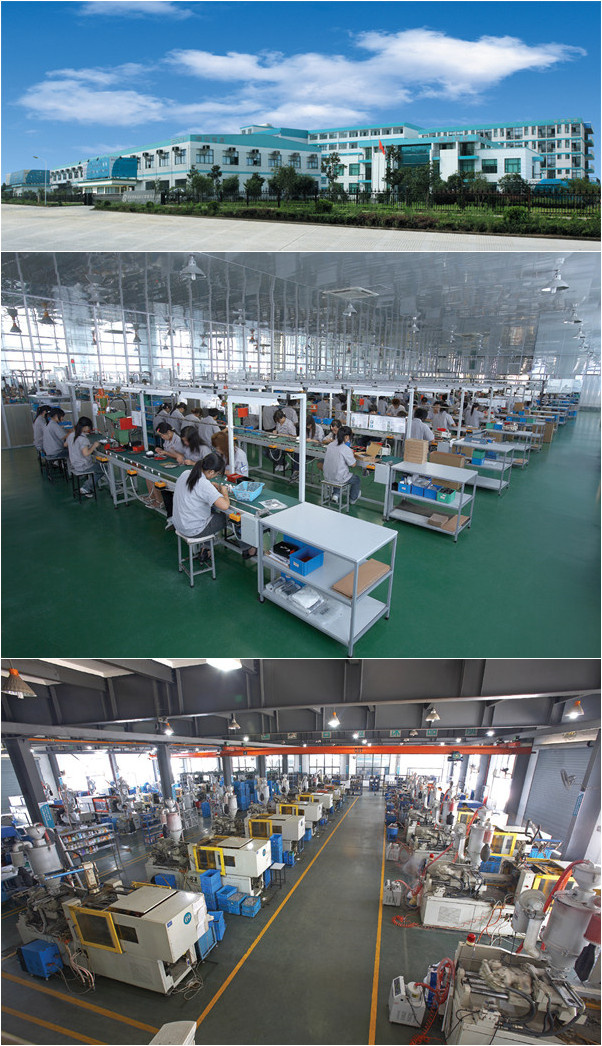

Company introduction
Ningbo Master Soken Electrical Co., Ltd. established in 1996, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus.
Prod Model: RT221-1A
Voltage: 250VAC
Current: 16A
Function: 2 Position
Shaft: 11.4/15/18/23/26mm
Main Material: PA66
Terminal: QC Pin
Certficate: TUV/VDE/Ktl/CQC
Rotary Number: Single Button
Ningbo Master Soken Electrical Co., Ltd, is one of the leading membership of the association of China's Electrical Accessories & Automatic Controls of CEEIA. It boasts of an expertise on professionally researching, designing as well as producing various switches which include Rocker switch, Rotary switch, Push-button switch, Key switch and Indicator. These switches are widely used in different fields, such as Home Appliance, Industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus, etc. It also provides customized services according to customers' specific demands.

Our company is located in Xikou, Ningbo, a city lies in the south of Yangtze River Delta and famous for its national 5A level scenery. Its advantageous geographic location gives it a superb rich human and cultural environment and moreover advanced transportation network. Covering a gross area of 25000 square meters and 16000 square meters construction area, the company has more than 600 employees, including over 50 R&D staff and technicians. The annual output has reached 150 million pieces, ranking highly among its counterparts in the same domestic industry field.

Our company has obtained ISO 9001 certification in July, 1999 and ISO 14001 certification in October, 2004. The producing systems have become more developed with the PDCA cycles. "SOKEN", our brand, is famous in Zhejiang province for its good quality products from Ningbo. So far, we have built a laboratory under the conformance to UL and VDE inspection standard. Meanwhile, most of our products have been approved by UL, VDE, TUV, ENEC, KEMA, K, CQC accreditation and compliant to RoHS testing criteria.
