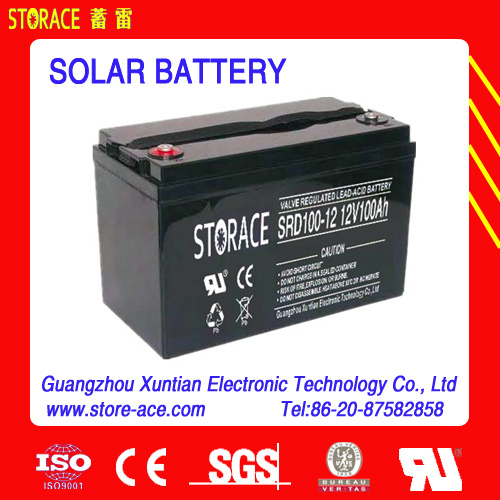

Solar Battery 12V100ah Deep Cycle Battery

Name: Solar Battery 12V100ah Deep Cycle Battery
Brand: all-electronics-online.com
SKU: 734907815
Availability: InStock
Rating: 4.4 (87 reviews)

Price:	US $ 86-112/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	30/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Our batteries including: Lead Acid Battery, Sealed lead acid battery, VRLA battery, SLA battery, AGM battery, deep cycle battery, solar battery, gel battery, 12V battery, 6V battery, 2V battery, mintenance free battery, storage UPS battery, valve regulated lead acid battery and so on.

Valve regulated lead acid series UPS batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System.

VRLA/SLA UPS Battery SR100-12 12V100ah Industrial Maintenance Free 12V Battery

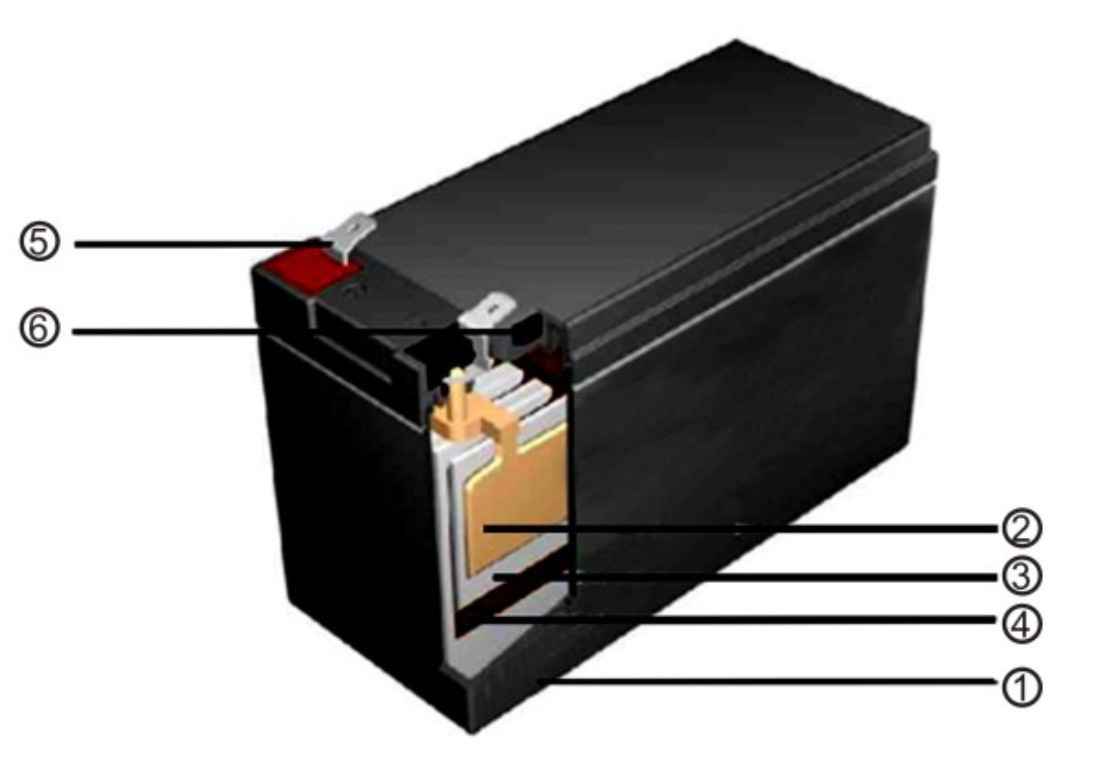

Battery Structure

1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Postive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Application
UPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.

Characteristics
1. Excellent safety performance
2. Good dischargeing performance
3. Good stock-proof performance
4. Good impact-proof performance
5. Good resistance to overdischarge
6. Good resistance to overcharge
7. Good resistance to high current.

Capacity 77° F(25º C)	20 hours rate(5.2A 10.8V)	104Ah
	10 hours rate(10A 10.8V)	100Ah
	5 hours rate(18.3A 10.5V)	91.5Ah
	1 hour rate(75A 9.6V)	75Ah
Internal Resistance	Full charged battery 77° F(25º C): 4.5mΩ

Capacity affected by Temperature (10 hour rate)	104° F(40º C)	102%
	77° F(25º C)	100%
	32° F(10º C)	85%
	5° F(-15º C)	65%
Self-Discharge 68° F(20º C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77° F(25º C): 900A(5S)
Charge (Constant Voltage)	Float: 13.6 to 13.8V/77° F/(25º C)
	Cycle: 14.4 to 14.7V/77° F/(25º C)
	Max Current: 25A

Prod Model:	SRD100-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size 1:	331173213mm
Size 2:	407174209mm
Weight:	30.00kg/32.00kg
Color:	Black / Dark Gray
Cell:	6
Sealing:	Glue Sealing
Separator:	AGM
Plate:	Flat Plate
Terminal Type:	Lead
Accessory:	Screws
Type:	Lead-Acid Batteries
Usage:	Solar Power
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Rectangle

Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.

Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.

After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.

Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
