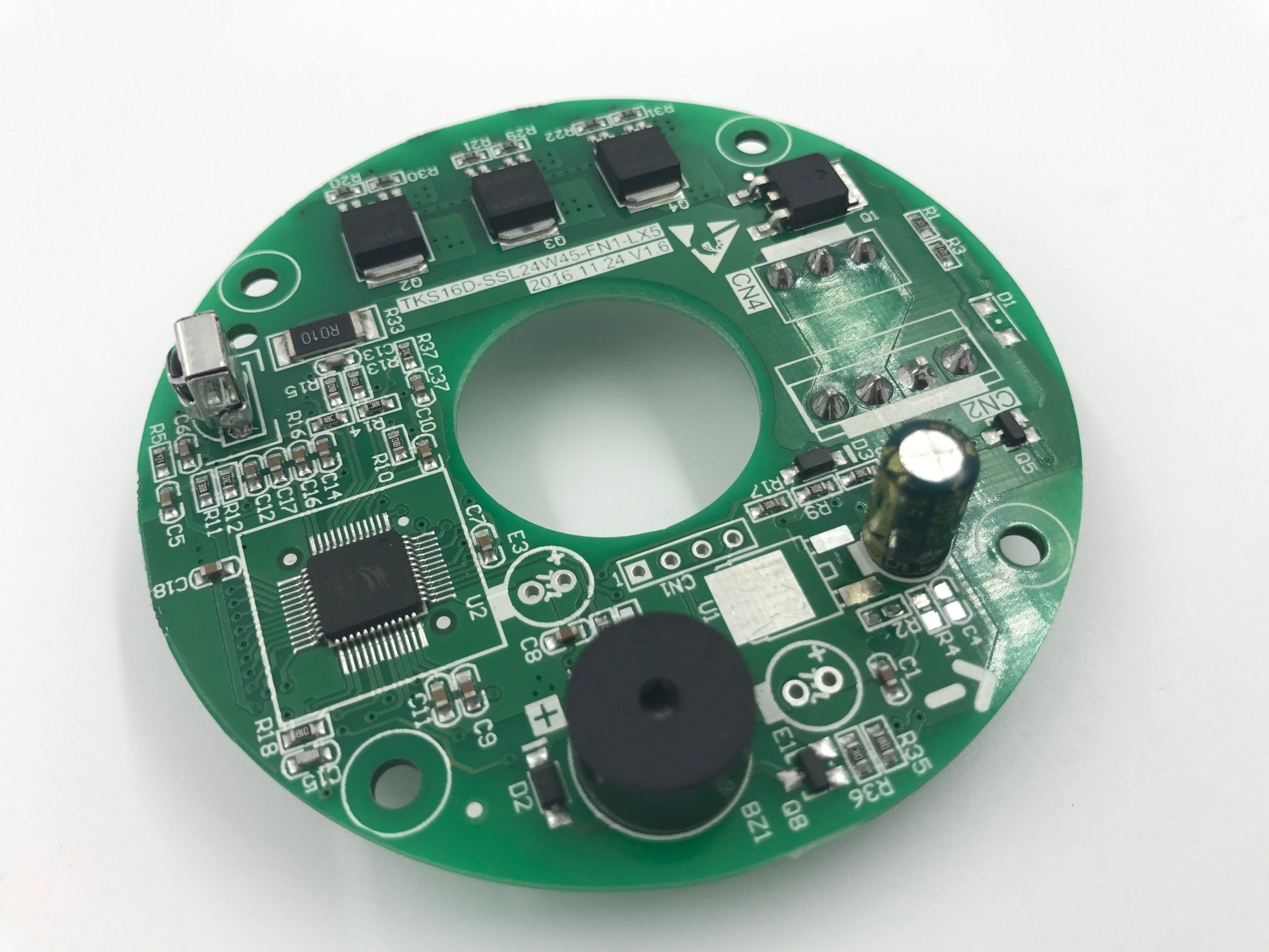

Solar Fan Diver Ceiling Fan DC12V PCB

Name: Solar Fan Diver Ceiling Fan DC12V PCB
Brand: all-electronics-online.com
SKU: 834841355
Availability: InStock
Rating: 5 (139 reviews)

Price:	US $ 2.2-2.5/Piece
Min Order:	2500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Copper PCB Board for Ceiling Fan from China

Performance data:
Control way: Sin wave control, FOC
Hall sensor: Sensorless
RPM: 0-400
Speed control: IR/RF/PWM/VSP/SPI
Speed feedback: Yes
Forward/Reverse function: No
Can be with LED light: Yes

Rated spec.:
Input voltage: 12V
Power:36W

Protection data:
Working voltage: 12V
Current limit protection: 3.8A
Over current protection: 6A
Phase failure protection: Yes

Product features:
Super silent
Switch buzzer tone

Mechanical size:
D:75mm
d:24mm

Prod Model:	DCR 12VP
MOQ:	2500PCS
High Temperature Protection:	Y
Wrong Connect Protection:	Y
Output Type:	Triple
Voltage:	18V
Fob Port:	Shunde
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	FR-4
Material:	Complex
Application:	Ceiling Fan
Brand:	Jlaihome / OEM
