| Prod Model: |
MC4 |
| Products Name: |
Solar PV Connector Mc4 High Effiency |
| Rated Current: |
30A(2.5~6mm2) |
| Rated Volatage: |
1000V DC |
| Flame Class: |
UL94-V0 |
| Insulation Material: |
PPO |
| Protection Degree: |
IP67 |
| Suitable Cable: |
Od 4.5-8.5(2.5-6mm2) |
| Connecting System: |
Crimp Connection |
| Temperature Range: |
-40~+150 |
| Safety Class: |
II |
| Type: |
Socket Terminals |
| Material: |
Copper |
| Application: |
Conduct Electricity |
| Certification: |
TUV |
| Brand: |
Meanray/OEM |
Product Description

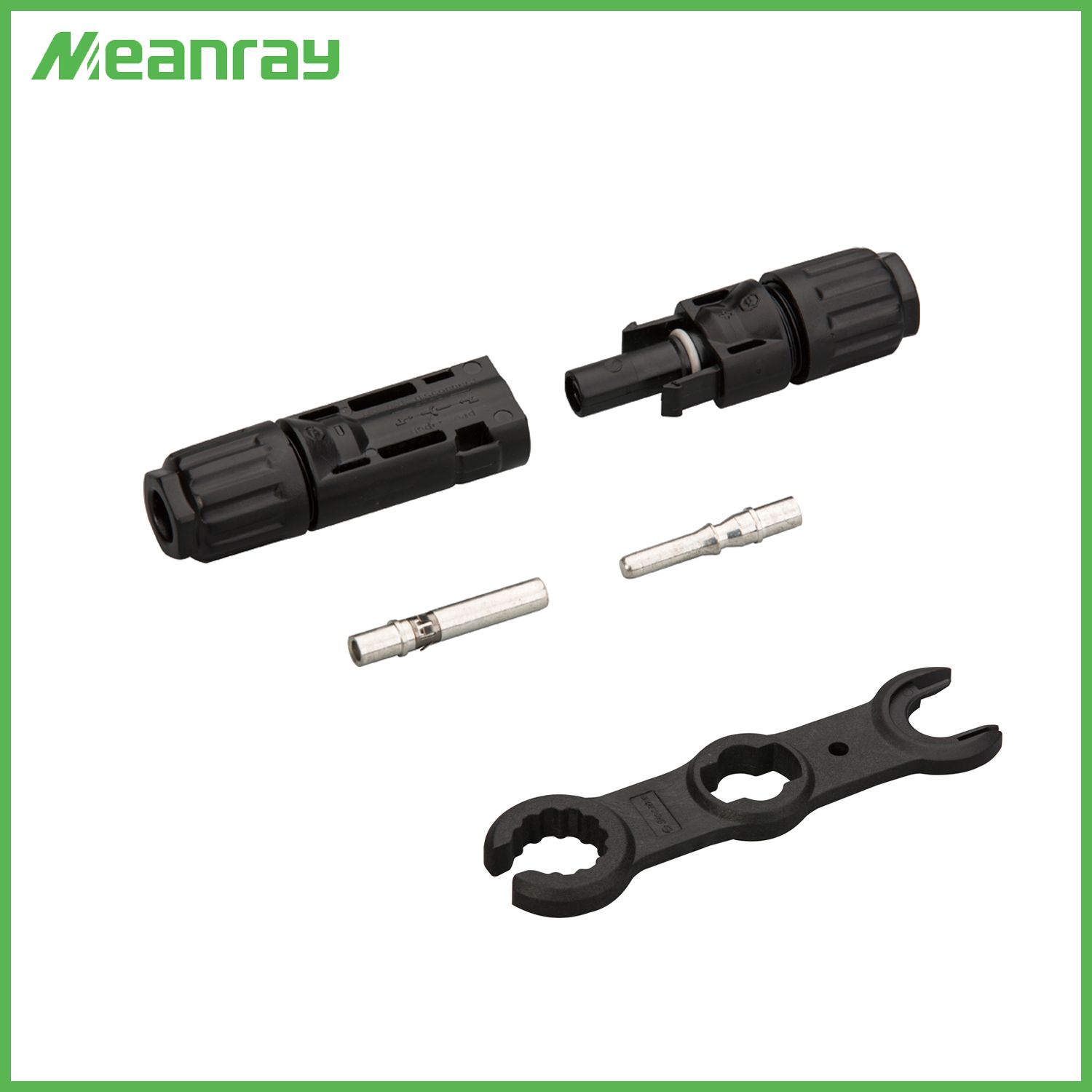

Solar PV Connector Mc4 IP 67 MC4 Connector
MC4 Connector for Photovoltaic Description:a. Application:Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
b. Construction:MC4 Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.
MC4 Connector for Photovoltaic Advantages: a.Simple on-site processing
b.Mating safety provided bykeyed housings
c.Multiple plugging and unplugging cycles
d.Accomodates PV cable with different insulation diameters
e.High current carrying capacity
f. TUV and UL approved

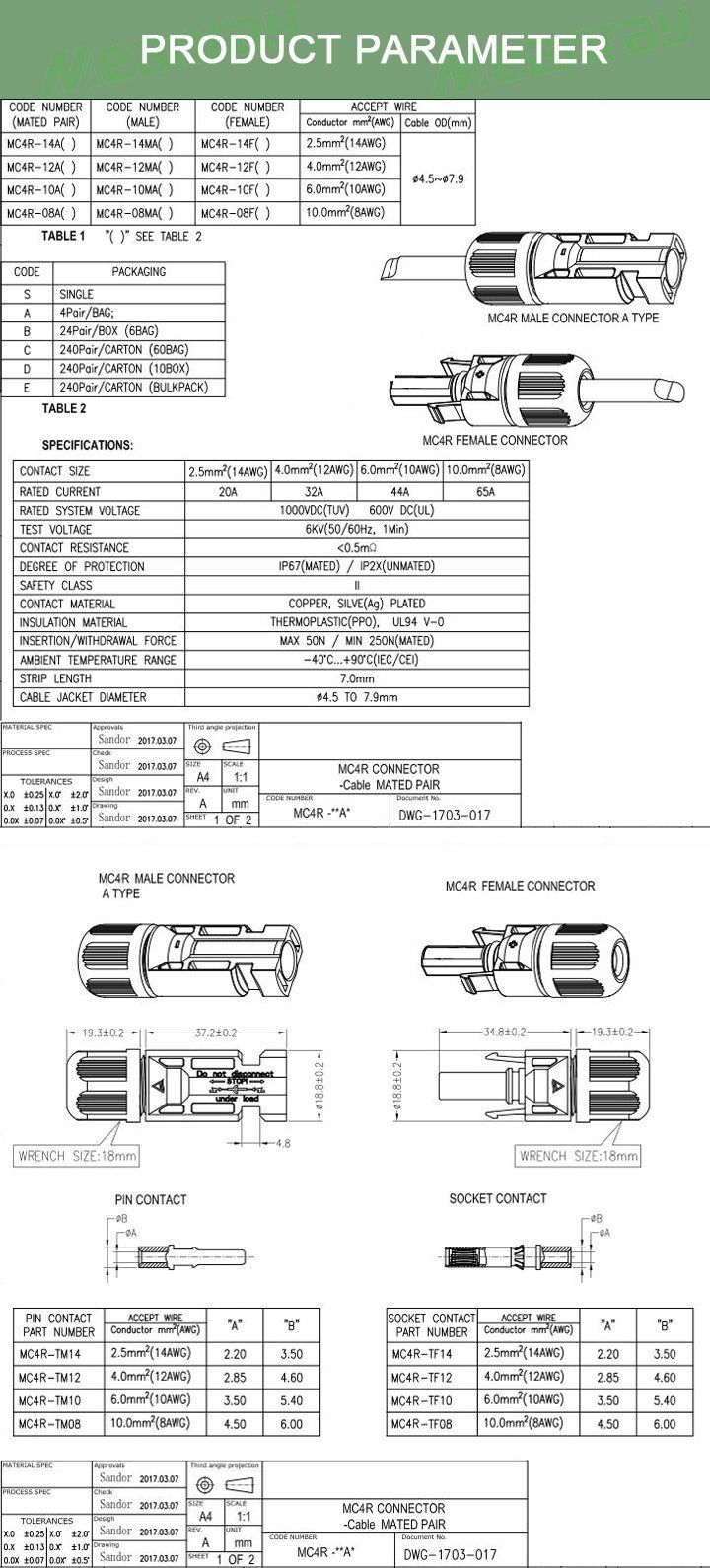

MC4 Connector for Photovoltaic Technical Data:| Product Name | MC4R Connector |
| Rated Current | 30A(2.5~6mm2) |
| Rated Voltage | 1000V DC |
| Test Voltage | 6000V(50HZ, 1min) |
| Overvoltage category/Pollution degree | CAT III/2 |
| Contact resistence of plug connectors | 1 mΩ |
| Conatct material | Copper, Ag plated |
| Insulation material | PPO |
| Degree of protection | IP20/IP67 |
| Flame class | UL94-V0 |
| Safety class | II |
| Suitable cable | 2.5-6mm2 |
| Insertion force/Withdrawal force | ≤50N/ ≥50N |
| Connecting system | Crimp connection |
| Temperature range | -40ºC~+125ºC |
| Packing unit | 1000pcs |
| Minimum order quantity | 1000pcs |
| Weight per Piece (excluding packing) | 25g |
| Custom tariff number | 8536690000 |
| Country of origin | China |
MC4 Connector for Photovoltaic Connector FAQ:Q: If I'm interested in your Sloar Connectors when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 8hours.

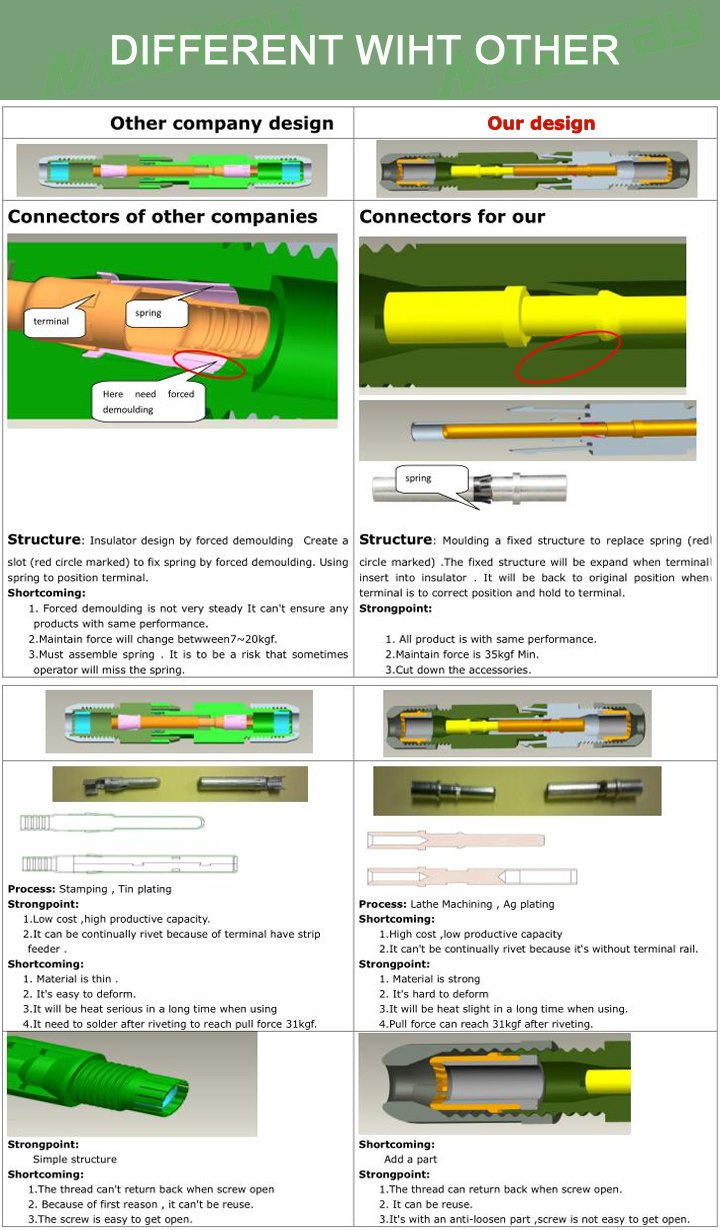

Q:Your Solar Connectors seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our Solar Connectors is special for Solar system all the parts in the Connectors are high quality customized.
Q:Can I get a sample before the order because I really don't how is your Solar Connectors quality?
A:Of course!We also think sample order is the best way to build the trust.
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise within in 15days.
Zhejiang MEANRAY is committed to the field of new energy, specializing in solar photovoltaic and wind power products. It is a company which engaged in research and development, production, sales and after-sales. After years of intensive development in the field of new energy and electrical industry, it has become the main manufacturer of new energy electrical appliances in China, and has become the international famous brand OEM partner.

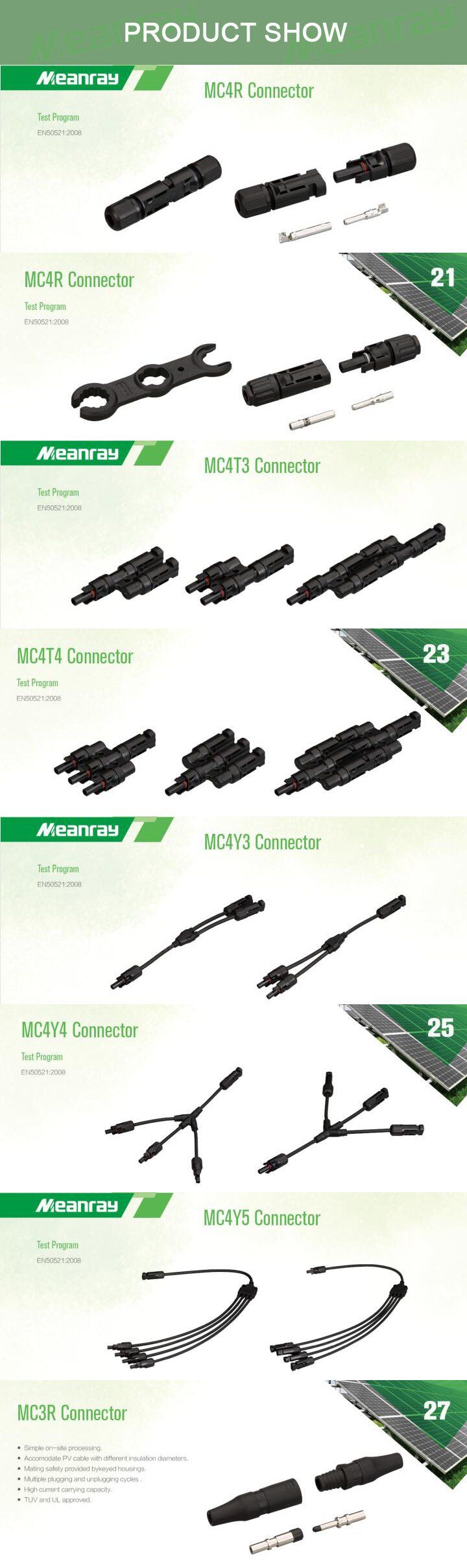

The wide range products under our manufacturing covers DC Circuit Breaker, Surge Protector Device, DC MCCB, Fuse, Isolator switch, PV Combiner box, Solar Cable, MC4 Connector, Distribution Box and Switch. All products are in strict accordance with the international Electrotechnical Commission standards and national and industry standsard production. Products have passed CE, CB, SAA, NEMKO, VDE, CCC certificates. Products are widely used in solar power, wind power, metallurgy, electromechanical, railway, ship, port, petrochemical, iron and steel, coal mines, residential areas, shopping malls and other industries of power supply control system.
The company has a modem management team and scientific research personnel. In line with people-oriented, relying on new technology and new products, adhere to the excellent quality and advanced products performance to meet the constantly changing market demand. Now has exported to Europe Spain, Italy, Holland, Southeast Asia, Australia, the Middle East and other international markets.
In the face of a new future, the company will adhere to the purpose of "honesty, steadfast, quality and trust", relying on advanced modern enterprise management, deepening the internal management of enterprises, comprehensively promoting the quality assurance system, and developing the spirit of "serving customers". Adhering to the concept of "service and trust", the professional service team participates in the whole process. Strive to bring high quality shopping experience to each customer. Strive to create a new era of shopping.
Save limited energy, clean the world...MEANRAY together with you.
