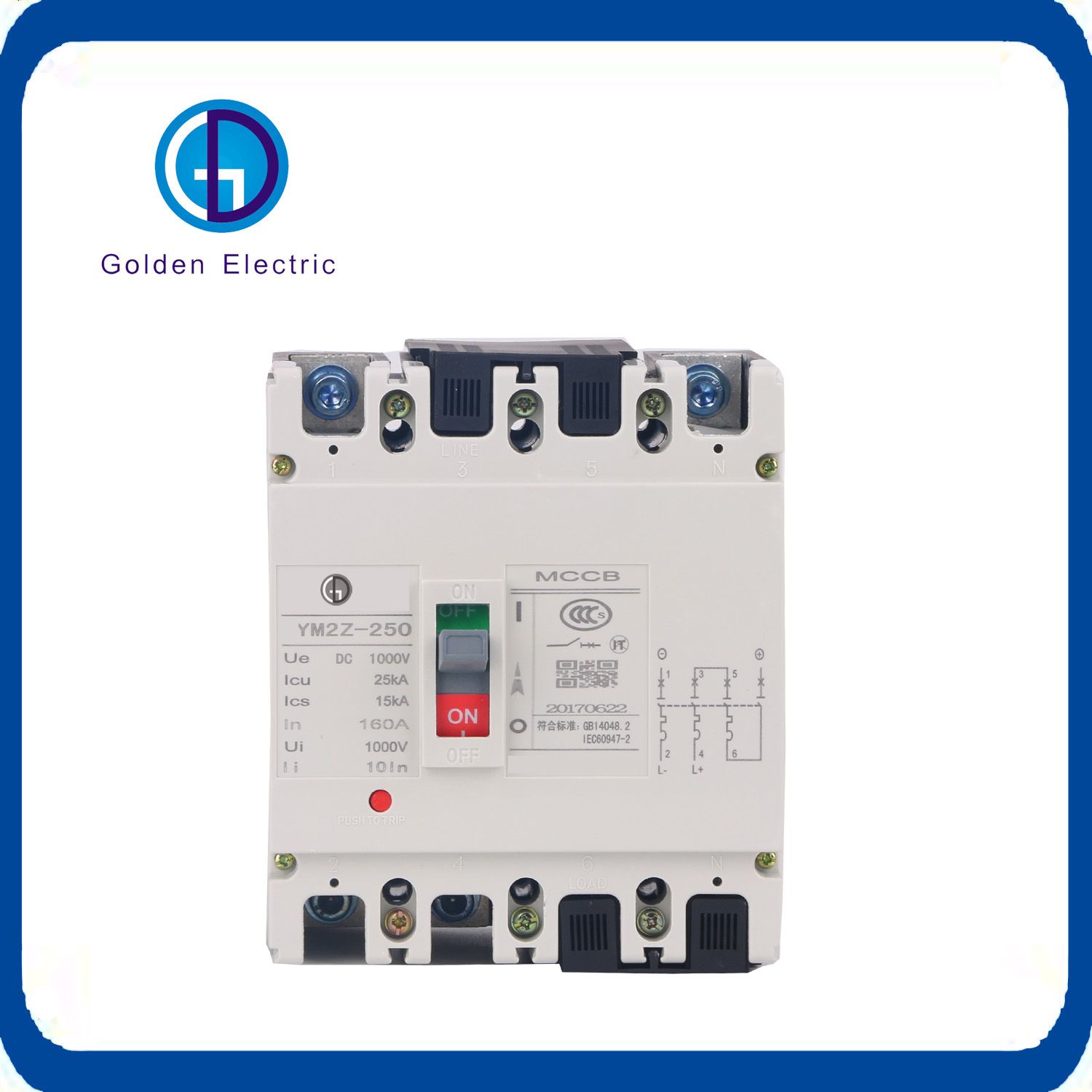

Solar Special Breaker 800V Ce Certificate DC MCCB
| Price: |
US $ 40-300/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Moulded Case Circuit Breaker 2p 250V DC MCCB
Product Description
DC MCCB Application:
YM2Z series Moulded Case Circuit Breaker is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is apply to rating current 1250A or less,direct current rating voltage 1500V or less.Products according IEC60947-2, GB14048.2 standard.
DC MCCB Parameters:| Item | DC MOULDED CASE CIRCUIT BREAKER |
| Code | YM2Z-125 | YM2Z-250 | YM2Z-400 | YM2Z-630 | YM2Z-800 | YM2Z-1250 |
| Pole | 2P,3P,4P | 2P,3P,4P | 3P,4P | 3P,4P | 3P,4P | 3P,4P |
| Voltage | 250VDC,
550VDC,
750VDC,
1000VDC | 250VDC,
550VDC,
750VDC,
1000VDC | 750VDC,
1000VDC | 750VDC,
1000VDC | 750VDC,
1000VDC | 750VDC,
1000VDC |
| Current | 16A,20A,
25A,32A,
40A,50A,
63A,80A,
100A,125A | 100A,125A,
140A,160A
180A,200A,
225A,250A | 250A,315A
350A,400A | 400A
500A
630A | 630A
700A
800A | 800A,
1000A,
1250A |
| Standard | IEC/EN60947 |
| Breaking Capacity | 8kA,10KA | 8kA,10KA | 15KA | 15KA | 15KA | 15KA |
| Characteristic Curve | C |
| Working Temperature | "-5°"to +40° |
| Protection Degree | IP20 |
| Electrical life | More than 8000times |
| Mechanical life | More than 2000times |
| Installation | 35MM DIN RAIL |
| Accessory | YES |
| Installation Altitude | ≤2000M |
DC MCCB Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
DC MCCB Shipping:
1. Shipment port:guangzhou
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
We are one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4
| Prod Model: |
DC MCCB |
| Product Name: |
AC/DC Series Moulded Case Circuit Breaker MCCB |
| Rated Current: |
63A 80A 100A 125A 250A 160A,200A,225A,250A,400A, |
| Ue Rated Operating Voltage(DC): |
3p 750V/4p 1000V |
| Rated Insulation Voltage Ui(VDC): |
DC1000V |
| Rated Impact Voltage Uimp(Kv): |
8kv |
| Ultimate Breaking Capacity ICU(Kv): |
25kv |
| Trip Type: |
Therminal-Magnetic |
| Ambient Temperature: |
-20~70 |
| Altitude: |
2000m |
| Instalation: |
Fixed,Plug in |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
4 |
| Certification: |
CCC |
