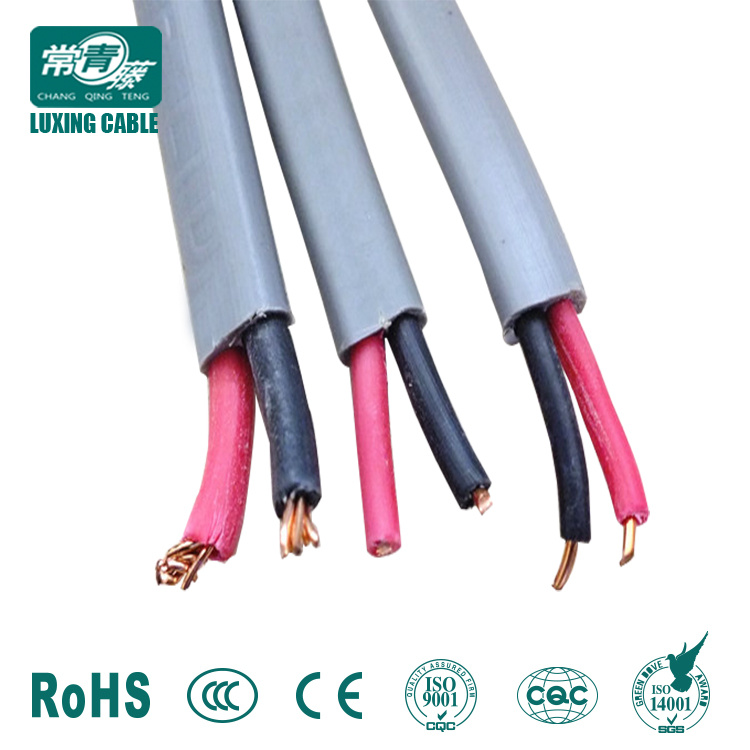

Solid Copper Conductor 1.5mm 2.5mm 4mm Twin and Earth Cable 2 Core or 2+1 Core Flat Cable
| Price: |
US $ 0.1-3/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
ITEM NAME : Solid Conductor 1.5mm 2.5mm 4mm twin and earth cable
Conductors
Uncoated copper per ASTM-B3, ASTM-B787, and ASTM-B8
Applications
600 volt building wire for use in commercial and industrial applications as specified in the NEC®.
8-1 AWG is marked VW-1. 1/0 - 1000 MCM rated for CT use; 8 AWG-1000 MCM in black; rated
sunlight-resistant. Pulling lube is not required with SLPTM (self-lubricating polymer).
Insulation
Color-coded, heat and moisture resistant PVC (polyvinyl chloride)
twin and earth cable Specification
Voltage Rating 600/1000 V
Temperature Range -10°C to 70°C
Core colour : black, blue, brown, green/yellow, grey, orange, pink, purple, red, white, yellow
Twin and earth cable connstruction
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 5.
Insulation: PVC compound
Twin and earth cable colour code
Insulation colour as per bs7671
with earth conductor
without earth conductor
2Cores :Brown,Blue
3Cores : Yellow/Green,Brown Blue Brown,Gray,Black
4Cores : Yellow/Green,Brown,Gray,Black Brown,Gray,Black,Blue
5Cores : Yellow/Green,Brown,Gray,Black,Blue Brown,Gray,Black,Blue,Black
above 5 Cores : Yellow/Green,Black Numbered Black Numbered
twin and earth cable Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5s max.
Minimum bending radius: 6 x Overall Diameter| Size Conductor | Strands Insulation | Thickness |
| 2x1.5mm2 | 7/0.52mm | 0.6mm |
| 2x2.5mm2 | 7/0.68mm | 0.7mm |
| 2x1.5mm2+1.5mm2 | 7/0.52mm | 0.6mm |
| 2x2.5mm2+2.5mm2 | 7/0.68mm | 0.7mm |
| 2x4mm2+2.5mm2 | 7/0.85mm+7/0.68mm | 0.8mm |
| 2x6mm2+2.5mm2 | 7/1.04mm+7/0.68mm | 0.8mm |

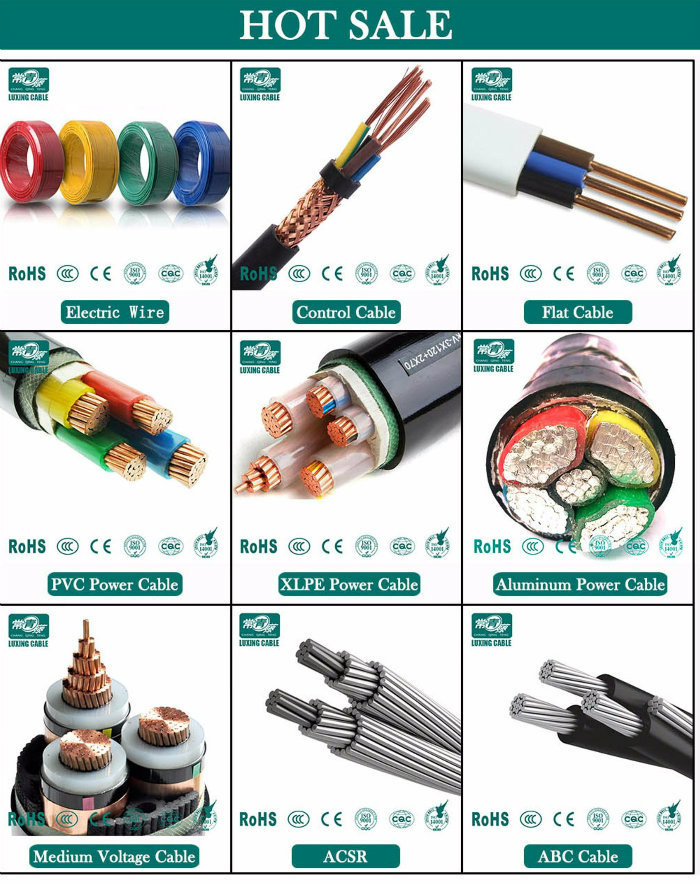

Luxing Factory Mainly Produce | 300/500V 450/750V electrical wire | AAC conductor |
| 600/1000V PVC insulated cable | AAAC conductor |
| 600/1000V XLPE insulated cable | ACSR conductor |
| 1.8/3KV to 26/35KV power cable | OPGW |
| Armored underground cable | ABC cable |
| Control cable and instrumentation cables | Rubber cable |

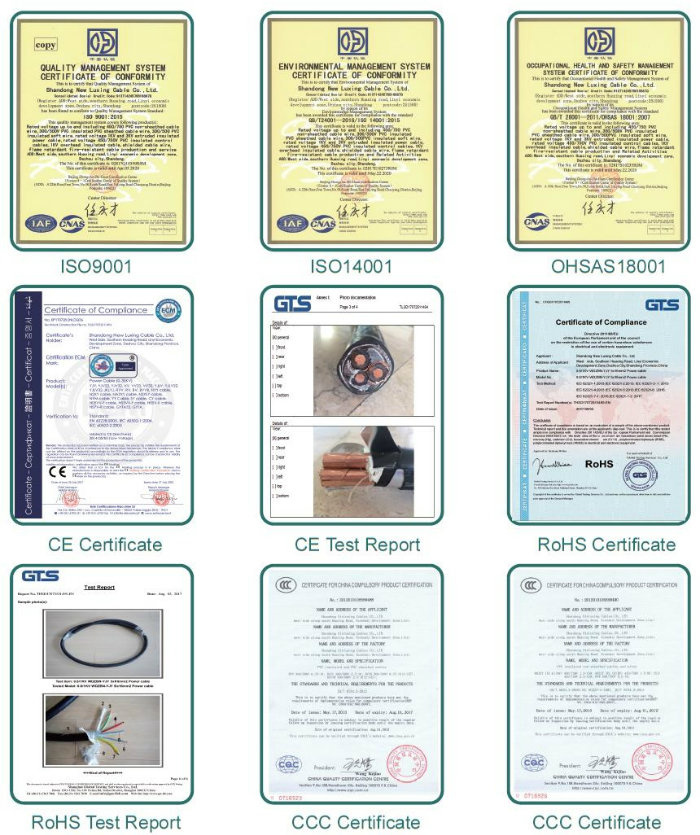

Certificates

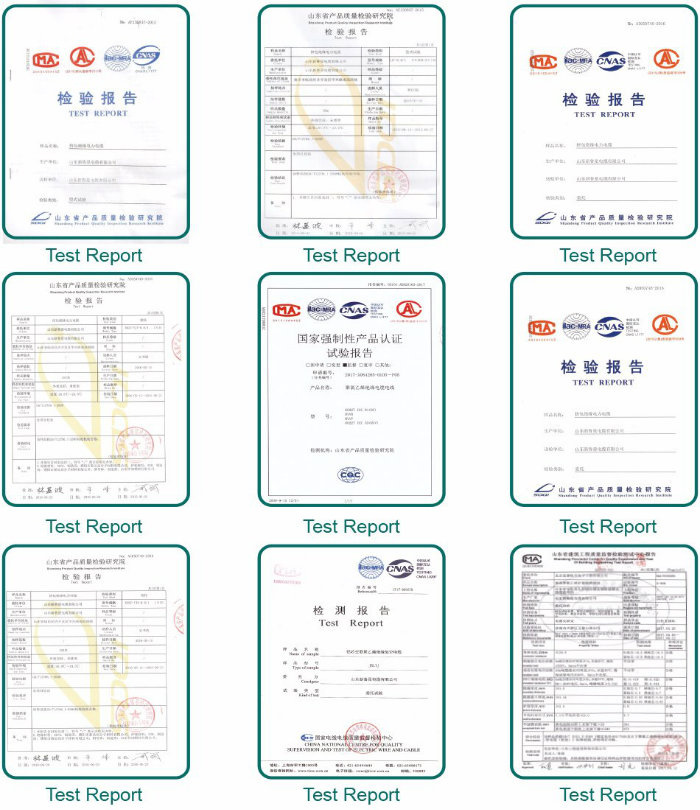

Test report
Packaging & Shipping
Contact Information
| Prod Model: |
twin and earth cable |
| Product Name: |
1.5mm 2.5mm 4mm Twin and Earth Cable |
| Rated Voltage: |
300/500V 450/750V |
| Usage: |
Fixed Wiring |
| Conductor: |
Copper |
| Insulation: |
PVC |
| Sheath: |
PVC |
| Standard: |
IEC602007 |
| Certifications: |
ISO Ce CCC RoHS |
| MOQ: |
100 Meter |
| Delivery: |
3-10 Working Days |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Fixed Wiring |
| Range Of Application: |
Lsoh / Flame Retardant |
| Brand: |
Chang Qing Teng |
