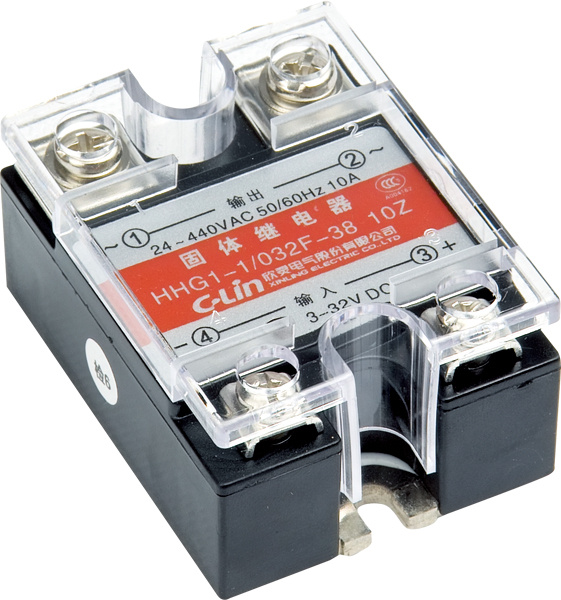

Solid State Relays SSR (HHG1-1/032F-22 10-100A; HHG1-1/032F-38 10-100A)

Name: Solid State Relays SSR (HHG1-1/032F-22 10-100A; HHG1-1/032F-38 10-100A)
Brand: all-electronics-online.com
SKU: 694668725
Availability: InStock
Rating: 5 (121 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Description

solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.

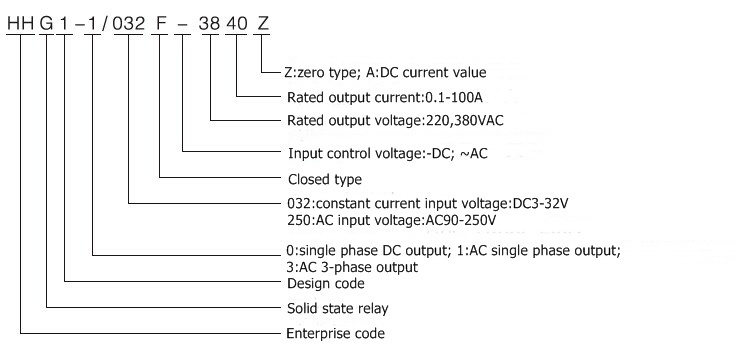

Model Explanation

Specification

Model	HHG1-1/032F-22 10-100A (SSR-DA)
	HHG1-1/032F-38 10-100A (SSR-DA)
Control Voltage	032:3-32VDC
Control Current	6-35mA
Make-on Voltage	3VDC
Break-off Voltage	1VDC
Reverse Voltage	32VDC
Load Voltage	22:30-240VAC;38:40-440VAC
Load Current	10, 15, 20, 25, 30, 40, 60, 80, 100A
Instant Voltage	22:600VAC; 38:900VAC
Voltage Drop	<1.6VDC
On-off Time	≤10mS
Leakage Current	≤10mA
Dielectric Strength	≥2500VAC
Insulation Resistance	500MΩ,500VDC
Ambient Temperature	minus30 to 80ºC
Indicate Methods	LED

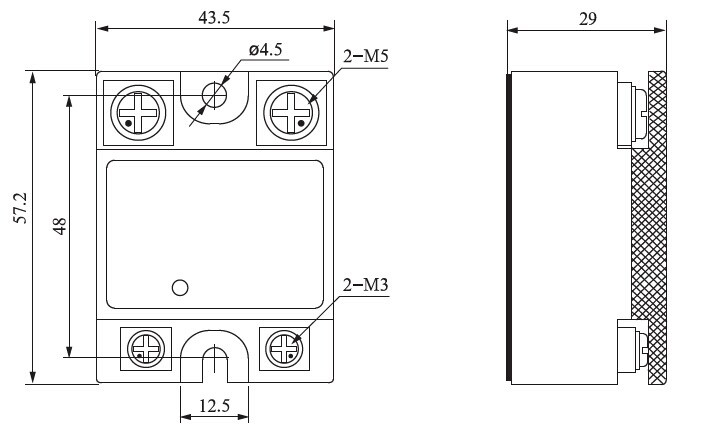

Outline Dimension

Notes for Inquiry

Please specify the control voltage, load voltage, and load current so that we can quote for you soon

Prod Model:	HHG1-1/032F-22 10-100A; HHG1-1/032F-38 10-100A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
