| Prod Model: |
SiC heating element |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Sic Heating Element |
| Brand: |
Chida |
| Specific Gravity: |
2.6-2.8g/cm3 |
| Diameter: |
8mm Min |
| Length: |
3000mm Max |
| Working Temperature: |
1400c Max |
| Sample: |
Available |
| Usuage: |
Glass, Ceramic, Powder Metallurgy and Machinery |
Product Description
Specification

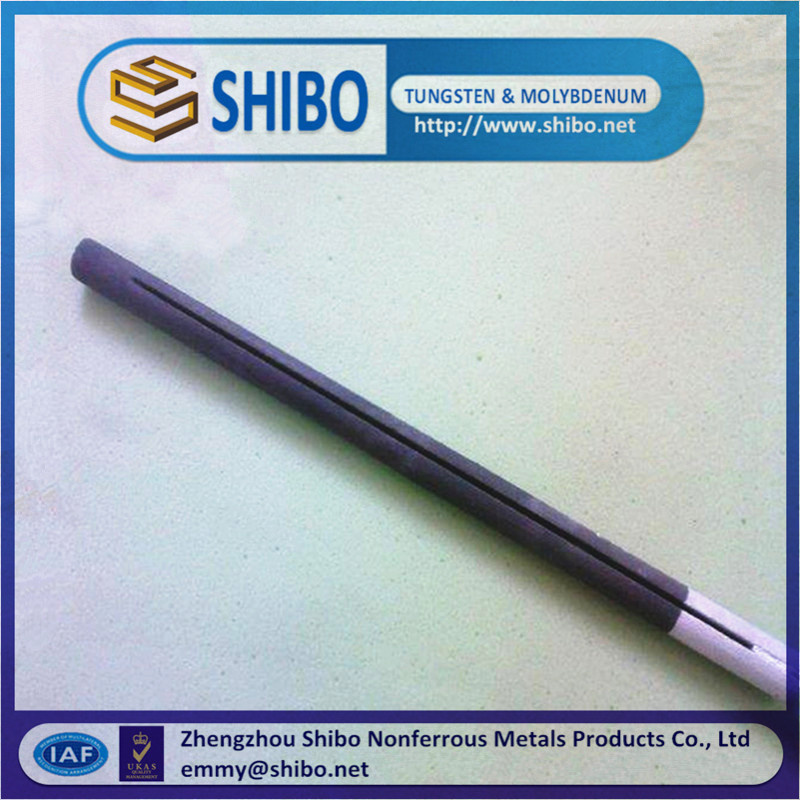

1. Name: SiC heating element
2. Type: ED, SC, SCR, Dumbbell, U, W and other special shape
3. Production process: Made into blank, silicided under high temperature and re-crystallized.
4. Character: High-applied temperature, anti-oxidization, anti-corrosion, long service life, little deformation, easy installation and maintenance.
Available
diameter | 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 30mm, 31.8mm, 35mm, 38.1mm, 40mm, 44.5mm, 50mm, 54mm |
| |
| Spec | Out
diameter | Length of hot
zone(HZ)(mm) | Length of cold
zone(CZ)(mm) | Overall
length(OL)(mm) | Range of
resistance (ohms) |
| 12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 |
| 14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 |
| 16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 |
| 18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 |
| 20 | 200-800 | 250-600 | 700-2000 | 0.6-6.0 |
| 25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
| 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
| 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 |
| 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 |
| 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 |
| 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
| 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 |
| | We can produce according to you need specifications. |
| |
| Application | Used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy, glass, and machinery. |
We are a entity factory, with more than 17 years of production experience. and we can produce various specifications of SiC products according to your requirements.

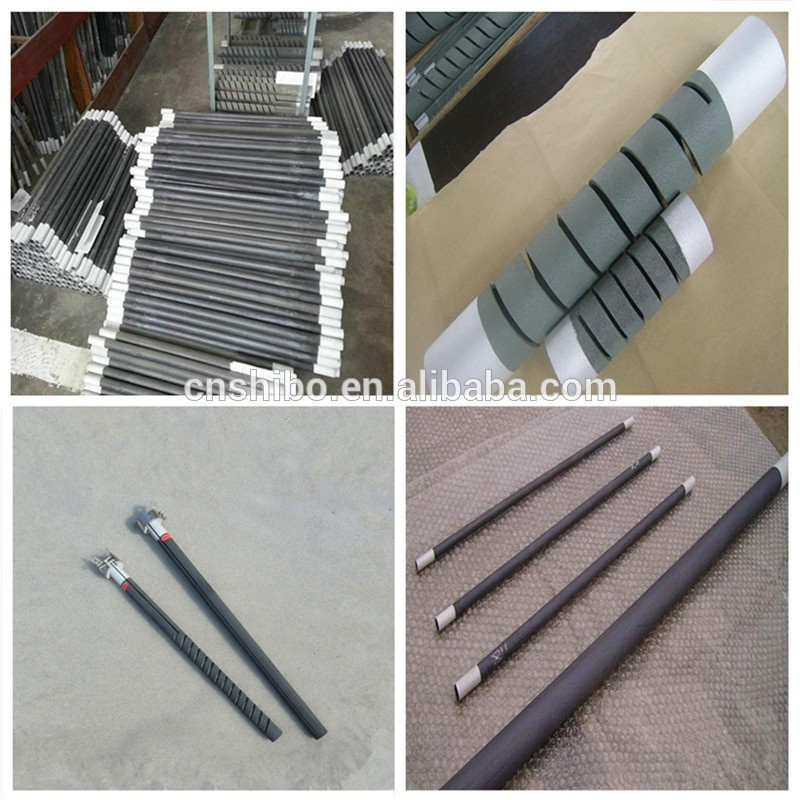

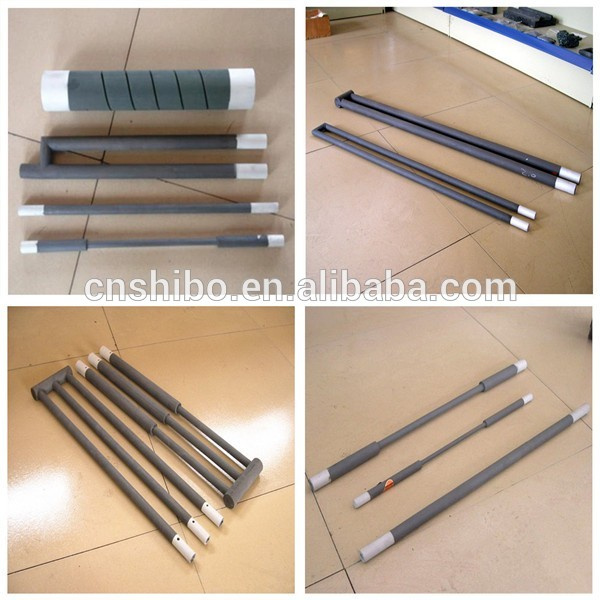

Products Picture
When you place an order , please give following information:
OD: Outer Diameter;
HZ: Length Of Hot Zone;
CZ: Length Of Cold Zone;
OL: Overall Length.
Our Main Products
1) Molybdenum products: plates, rods, crucible, tube, wire, boat, electrode, reflector screen and cover plate, etc.
2) Lab furnace: Box type muffle furnaces, tube vacuum furnace, box furnace, atmosphere furnace, and accessories.
3) MoSi2 heating elements and SiC heating elements.
4) Tungsten products: plate, bars, crucible, tube, wire, electrodes, reflector screen and cover plate etc.
5) Sapphire heat field: reflection shield, cover plate and so on.
6) Tungsten copper alloy products: bar, pipe, plate, and other.
7) Alumina Ceramic Tubes.
8) Thermocouple.
9) Chromel-filament.
10) And other related products.
Payment Methods: 1) L/C; 2) T/T; 3) Western Union
Packaging & Shipping
1) Packing: from the inside to outer packaging, is foam sponge, carton, wooden case.
2) transport modes: Sea or Air transportation, TNT, DHL express or FedEx.
3) Please make sure the 'shipping address' is your confirmed address.
4) We do check everything in good condition before we ship your parcel out.
5) We will process your order ASAP after payment is confirmed.
About us
1.We are a entity factory, with more than 17 years of production experience.
2. Our company has passed ISO9001 quality management system certification and CE certification. Well-equipped, quality first-class, Its leading "Chida" brand product enjoys high reputation for its high quality in domestic and abroad.
3. Our company is high & new technology enterprise specially engaged in developing, manufacture and selling Heating Element (MoSi2 and SiC heating elements), tungsten (W) and molybdenum (Mo) material products, Sapphire heat field, laboratory electric furnace and its accessories etc.
4. With the advantages in Technology, equipment, scale and management, Our company lies in the leading station of this field. Owing to the keen consciousness of quality and commercial reputation, the products are exported to USA, Europe, Middle East, South East, Asia, Russia and Korea etc around the world.
5. Our eternal faith is "Seeking for living with the quality, getting reputation with honesty, seeking for development with mutual benefit".
Please contact us freely if you have any problem, we are sure any of your questions will get our prompt attention and reply.

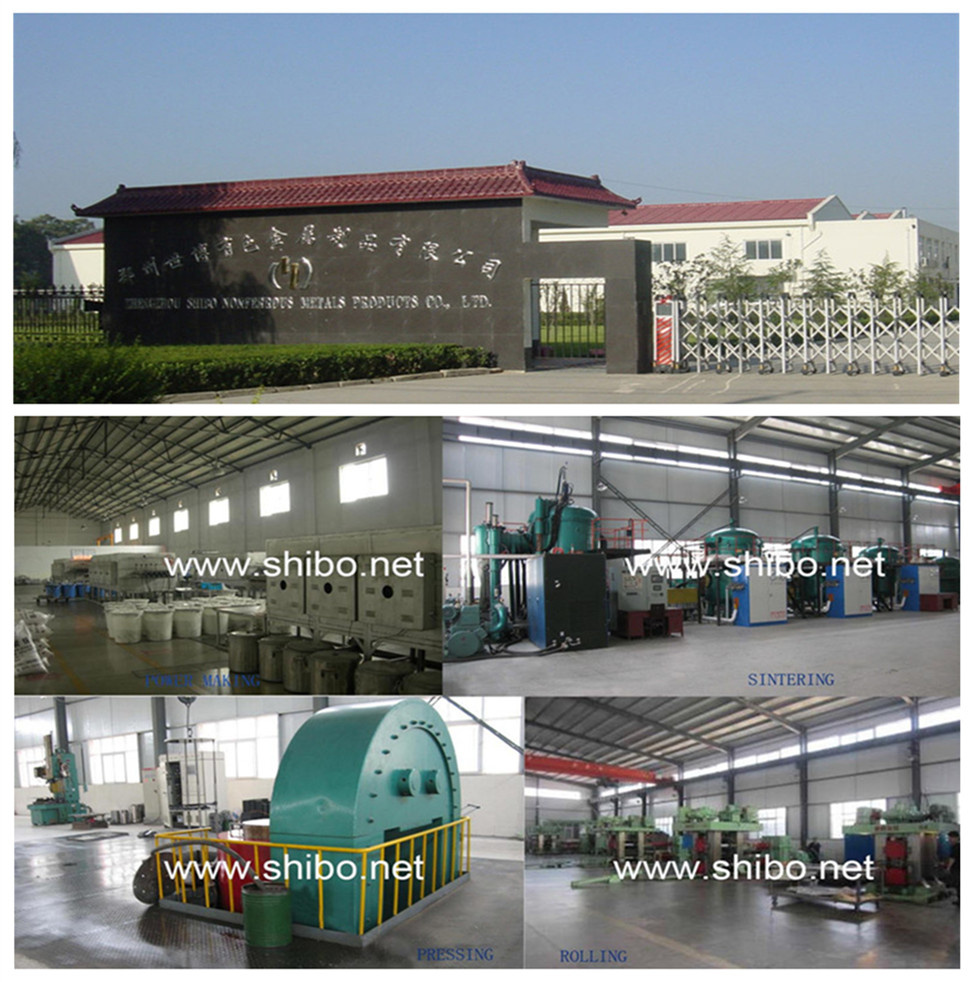

Zhengzhou Shibo Nonferrous Metals Products Co., Ltd., is the High & New technology Enterprise specially engaged in developing, manufacturing and selling nonferrous metals products, electric heating elements, furnace and fire-proof material products.
