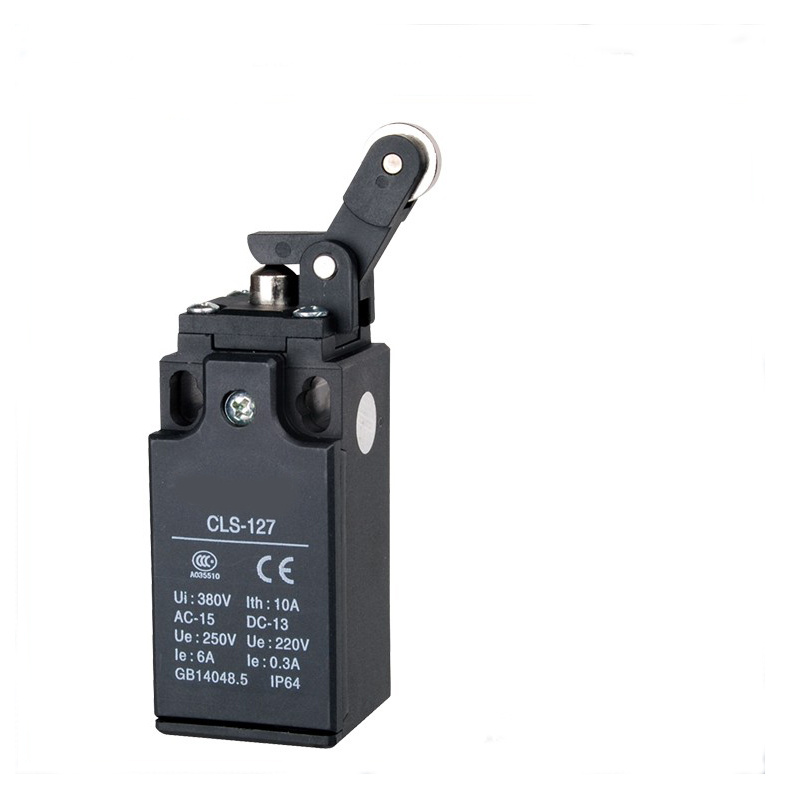

Spring Limit Switch Cls-127

Name: Spring Limit Switch Cls-127
Brand: all-electronics-online.com
SKU: 834725015
Availability: InStock
Rating: 4.4 (138 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CLS-127
Max Current:	10A
Contact Form:	No/Nc
Max Voltage:	AC/DC 250V
Life:	10,000,000

Product Description

Econmical and plastic type
Stainless steel roller,punch and spring
Swing amplitude,extra large 95 degree

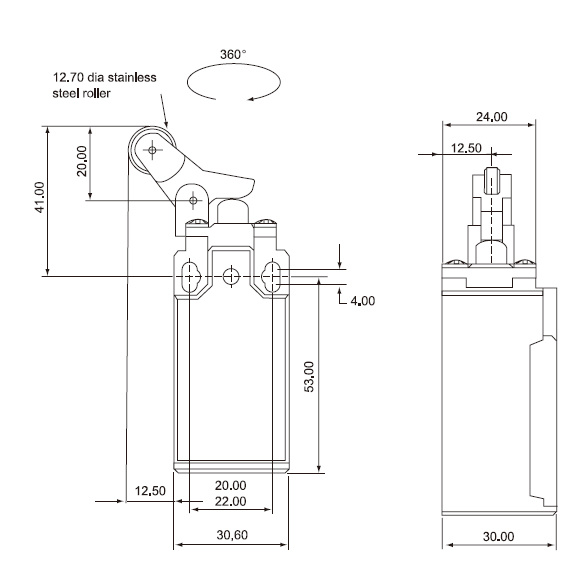

Standard size configuration M20*1.5 for conduit connector

Model	CLS	101	103	111	121	127
Model	CLS	301	303	311	321	327
Operating force	OF(Max.)	700g	700g	700g	500g	700g
Release force	RF(Min.)	200g	200g	200g	100g-cm	200g
Pre-travel	PT(Max.)	1.8mm	1.8mm	1.8mm	20°	1.8mm
Tripping position	TP±10%	2.0mm	2.0mm	2.0mm	22.5°	2.0mm
Movement differential	MD(Max.)	1.2mm	1.2mm	1.2mm	10°	1.2mm
Over travel	OT(Min.)	4.0mm	4.0mm	4.0mm	75°	4.0mm
Total travel	TT(Min)	5.8mm	5.8mm	5.8mm	95°	5.8mm
Rotary indexing					22.5°
Model	CLS	131	161	171	181	191
Model	CLS	331	361	371	381	391
Operating force	OF(Max.)	500g-cm	100g	100g	100g	500g-cm
Release force	RF(Min.)	100g-cm	40g	40g	40g	100g-cm
Pre-travel	PT(Max.)	20°	30mm	30mm	30mm	20°
Tripping position	TP±10%	22.5°	22.5°	22.5°	22.5°	22.5°
Movement differential	MD(Max.)	10°	14°	14°	14°	10°
Over travel	OT(Min.)	75°	20mm	20mm	20mm	75°
Total travel	TT(Min)	95°	50mm	50mm	50mm	95°
Rotary indexing		22.5°				22.5°

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
