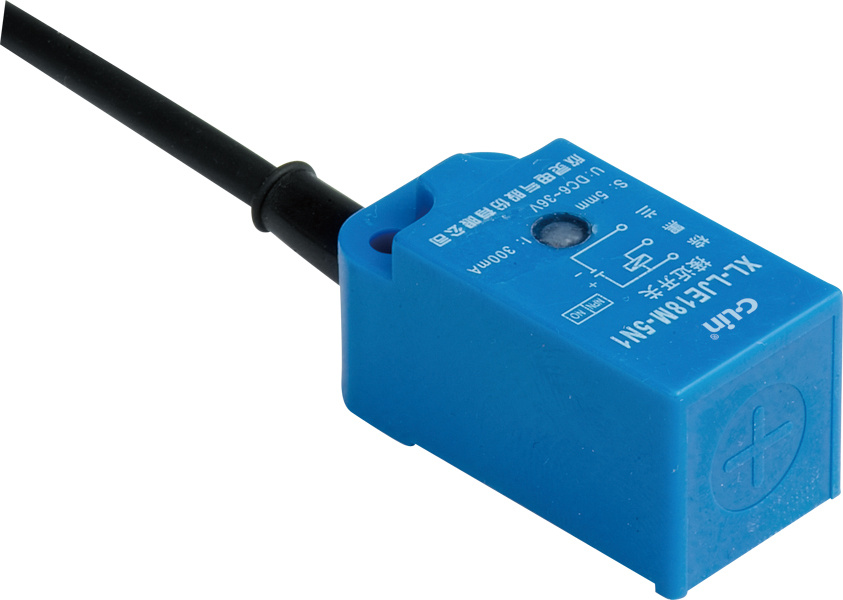

Square Type Inductive Proximity Switch/Sensor (LJE18M Series)

Name: Square Type Inductive Proximity Switch/Sensor (LJE18M Series)
Brand: all-electronics-online.com
SKU: 694486425
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LJE18M Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation:	Non-Flush
Working Temperature:	-20 to +70 Degrees
Measuring Material:	Metal ( Iron, Steel, Copper etc.)
Length Of Output Wire:	Routine:1.5m ( Other Length Can Be Customized)
Size:	18X18X36mm
Output:	Switching Sensor
Usage:	Position Sensor
Theory:	Magnetic Sensor
Material:	Heat-Resisting ABS

Product Description

Description

Proximity switch is one of position switches. When it operates, no need to make a mechanical contact. It is also called no-contact switch. As soon as the detected object approaches tothe surface of the sensor distance range. It begins to act with no-contact, no-pressure form, then drive AC or DC electrical or computer equipment to provide control instructions.

Clin brand proximity switches convers: inductive proximity switches, capacitive proximity switches, hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco, railway, war industry and so on.

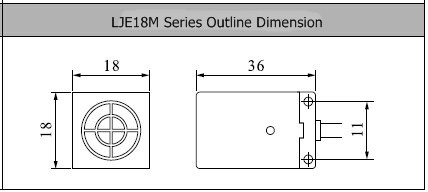

Dimension

Type			LJE18M Square Type
Operating State of Output			non-flush
3-wire DC6-36V	NPN	NO	LJE18M-5N1
		NC	LJE18M-5N2
		NO+NC	LJE18M-5N4
	PNP	NO	LJE18M-5P1
		NC	LJE18M-5P2
		NO+NC	LJE18M-5P4
2-wire DC6-36V	NO		LJE18M-5D1
	NC		LJE18M-5D2
2-wire AC90-250V	NO		LJE18M-5A1
	NC		LJE18M-5A2
Detection distance			5mm±15%

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
