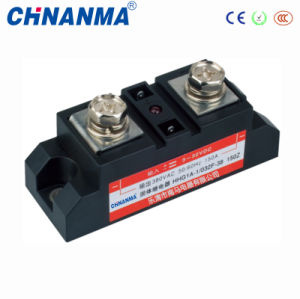

SSR Optoelectronic Devices Lsolation Industrial SSR-M Series Solid State Relay 200A

SSR Optoelectronic Devices Lsolation Industrial SSR-M Series Solid State Relay 200A
Price: US $ 8.5-10/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.

Specification


Model
HHG1-1/032F-22 2A (SSR-DA)
HHG1-1/032F-38 2A (SSR-DA)
HHG1-0/032F-20 2A (SSR-DD)
Control Voltage032:3-32VDC
Control Current6-35mA
Make-on Voltage3VDC
Break-off Voltage1VDC
Reverse Voltage32VDC
Load VoltageAC:22:30-240VAC,38:40-440VAC
DC:20:12-200VDC
Load Current2A
Instant VoltageAC:22:600VAC;38:900VAC
DC:20:220VDC
Voltage DropAC:<1.6VAC,DC:<1.2VDC
On-off TimeAC:≤10mS,DC:≤5mS
Leakage Current AC:≤10mA, DC:≤5mA
Dielectric Strength≥1500VAC
Insulation Resistance500MΩ,500VDC
Ambient Temperatureminus30 to 80ºC
Indicate Methods/



. Description of solid state relay

Control Voltage
90-250VAC
Control Current5-30mA
Turn-on Voltage90VAC
Turn-off Voltage10VAC
Load Voltage22:30-240VAC,38:40-440VAC
Load Current10A,15A,20A,25A,30A,40A,60A,80A
Transient Voltage22:600VAC,38:900VAC
On-state Voltage Drop<1.6VAC
ON-OFF Time≤10mS
Off-state Leakage Current≤10mA
Dielectrics Voltage-resistance≥2500VAC
Insulation Resistance500MΩ 500VDC testing
Ambient temperature-30~80?
Dimensions63L*45W*26H
Indicated MethodsLED
InstallationScrew fixing




FAQ

Q1. Can I have a sample order for Toggle Switch?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Prod Model: SSR-DA

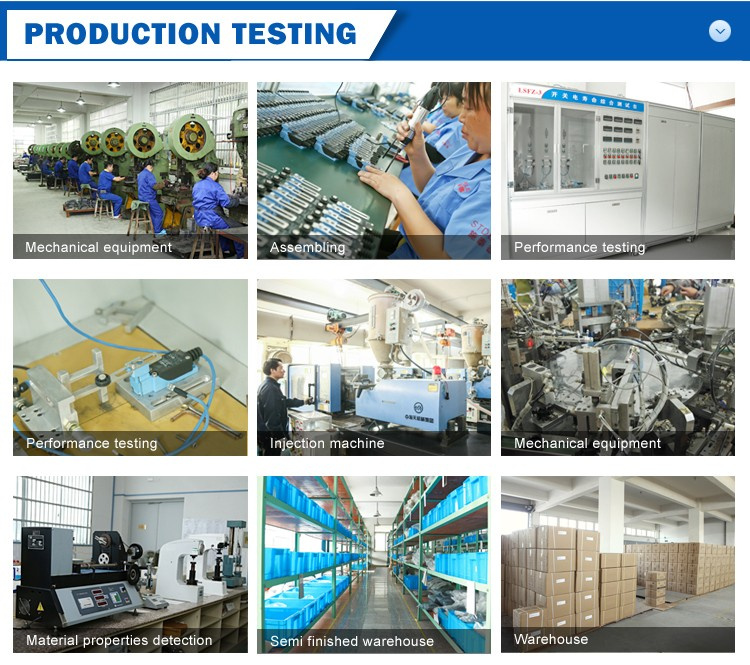

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
