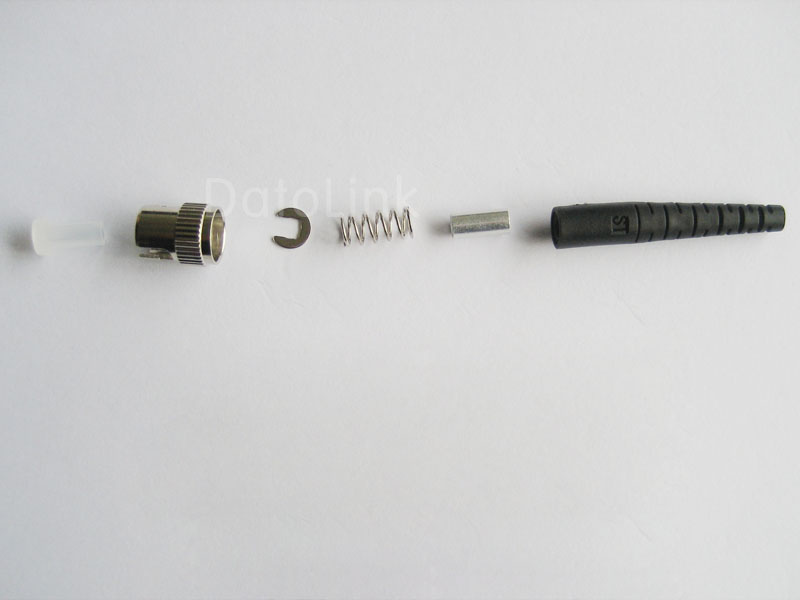

Product Name: ST/UPC Fiber Optic ConnectorST stands for Straight Tip - a quick release bayonet style Connector developed
by AT&T. STs were predominant in the late 80s and early 90s.
ST Connectors are among the most commonly used Fiber optic connectors in
networking applications. They are cylindrical with twist lock coupling, 2.5mm
keyed ferrule. ST Connectors are used both short distance applications and
long line systems. The ST connector has a bayonet mount and a long
cylindrical Ferrule to hold the fiber. Because they are spring-loaded, you have
to make sure they are seated properly. They are easily inserted and removed
due to their design. If you experience high Light loss, try reconnecting. ST
connectors come in two versions: ST and ST-II. These are keyed and
spring-loaded. They are push-in and twist types. They are rated for 500 mating
cycles. The typical Insertion Loss for matched ST connectors is 0.25 dB.
Features:Low insertion loss and high return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignmentconctor
Applications:Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV, FTTH, FTTB, FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation
Availability:-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Clips are available for SC and LC duplex connectors
Housing kits without ferrule are available.
-PC, UPC and APC are available
| Specifications |
| Single mode | Multimode |
| Insert Loss | ≤0.20dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC) |
|
| ≥55 dB (UPC) |
|
| ≥65 dB (APC) |
|
| Durability | <0.20 dB typical change, 1000 mating |
|
| Operating Temperature | From -40 to + 80 degree | From -40 to + 80 degree |
| Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: ≤1.0μm | 125μm, Concentricity: 1≤3μm |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: 1≤3μm |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | 128μm, Concentricity: 1≤3μm |
Packaging & Delivery Packaging Detail: Transparent plastic bag or upon customer's request 100 pieces /plastic bag Delivery Detail: Around 7 days after receipt of formal order Why you choose us ?1.Factory, OEM/ODM available2.Steady quantities supply, Strict quality control3.Excellent Datolink or your own brand box/roller design and package4.Stirictly conform to ISO, Rohs CE certificates5.Long time experience at domestic and export market Welcome you visit our factory !Relying on good prestige, creditable quality, perfect service and reasonable price, our company win the confidence of customers. We sincerely welcome old and new customers home and abroad to visit our manufactory and bulid the long term business relationshiop with us ! FAQ :1.Are you factory ?Yes,we are factory ,our factory located in Shenzhen ,Longgang district .2.What products your factory mainly produce ? Our factory mainly produce LC,SC,FC,ST Connector patch cord ,pigtail ,SFP transceiver module and other fiber optic components . Datolink brand, OEM/OEM fiber optic patch cable manufacturer, factory in Shenzhen, China,more information ,please don't hesitate to contact us!
