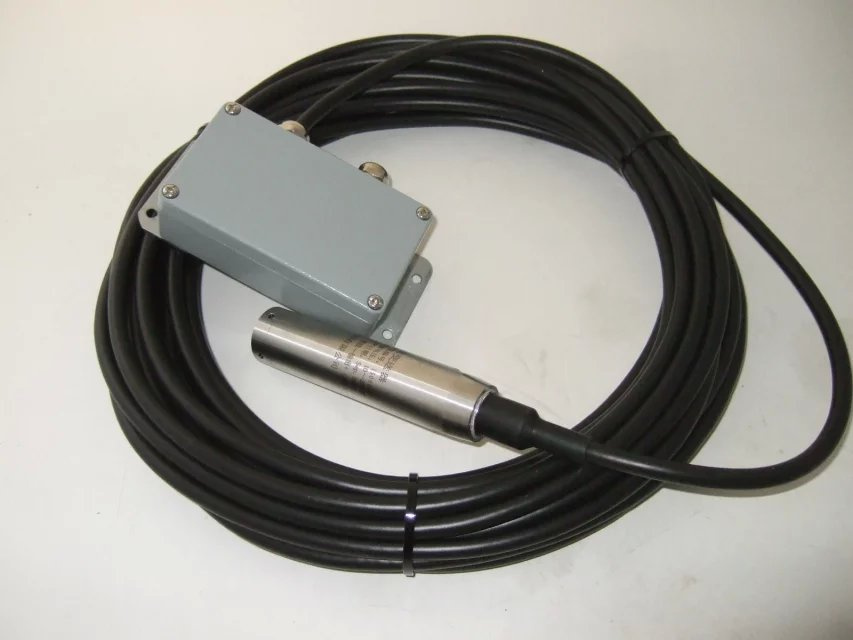

Stainless Steel Cable Connection Digital Fuel Level Sensor

Name: Stainless Steel Cable Connection Digital Fuel Level Sensor
Brand: all-electronics-online.com
SKU: 784311425
Availability: InStock
Rating: 4.3 (77 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Introduction:
TL4700 level transmitter is the full stainless steel construction and full-sealed submersible intelligent level transmitter with high accuracy. It uses high reliable and stable pressure sensor, intelligent processing circuit, precise digital temperature compensation and linearity correction technics for production.

The water-proof cable connects with housing sealed, with vented tube putting in, the submersible level transmitter could be used in the water or liquid in a long time. Integrated construction and standard output signal could provide easy operation and good automatic control.

With 2-wire working, compact size, light weight and easy installation and operation, TL4700 Intelligent Level Transmitter is widely used for industry field instead of normal 2-wire 4~20mADC analog output transmitter.

Features:
Ouput signal 4~20mADC, 2-wire
Digital temperature compensation
RS485, HART, MODBUS (customized)
Netting application
Full stainless steel construction

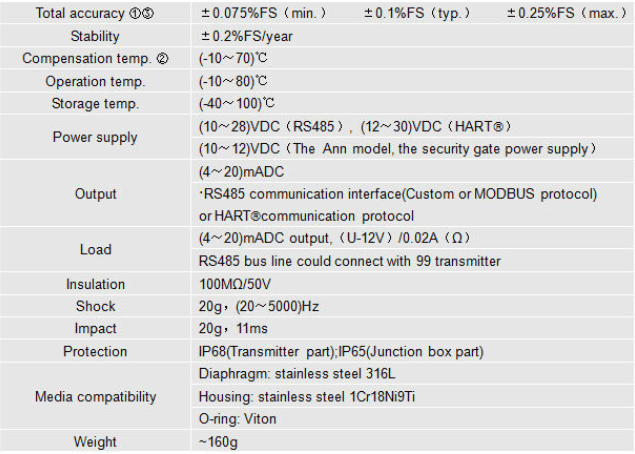

Specification

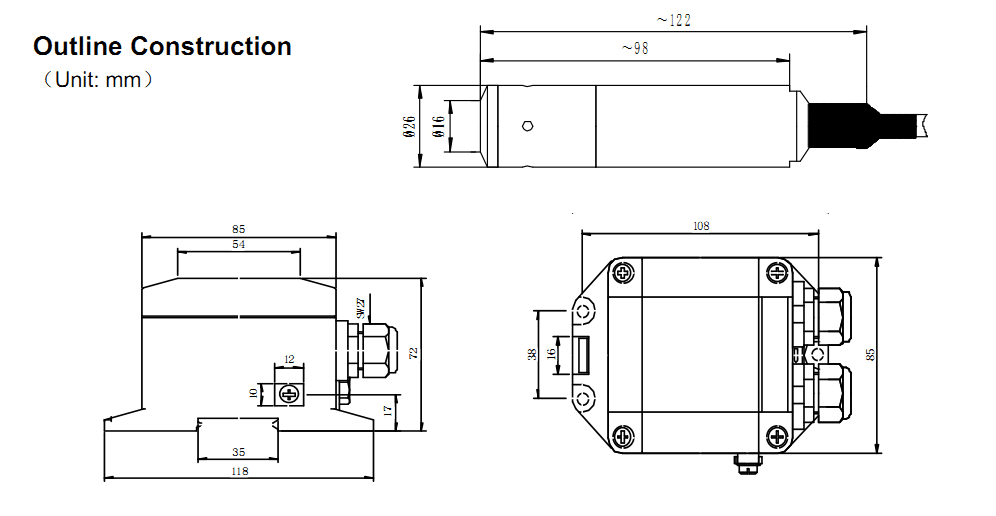

Outline Construction

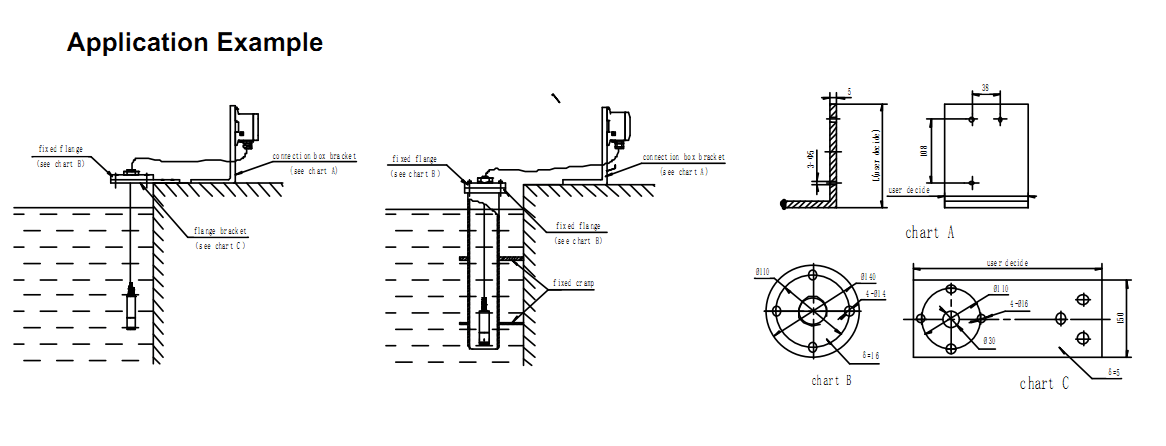

Application

Prod Model:	TL4700
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	0.075%S/(Min)
Pressure Range:	3.5mh2o.....200mh2o
Supply Voltage:	12-32V
Electric Connection:	Cable Connection
Output Signal Type:	Digital/Analoge

Established in 2009, Traclogis is dedicated to provide Fuel control system and Fuel consumption monitoring solution and GPS-GSM/GPRS vehicle monitoring and fleet management solutions that has a transformative effect on the way business optimize their fleet and mobile assets.

With the development of modernization in industry and agriculture, and the wide use of industry monitoring and automatic management, the wireless control system is expanding rapidly, especially in irrigation works and electronic power, fuel consumption, with the strong demands from the market, Traclogis started the remote fuel monitoring solution study in 2009, based on the experience of fleet management solutions, we have released the complete solution of remote fuel monitoring solution successfully, which has helped our customers saving a lot of cost on the management of fleet and industrial equipment operation.

Traclogis is dedicated to enhancing the value of its customers' business through intelligent integration of location technology, information and services, according to the requests from the market, we can fulfill the needs of all sizes of companies,

No matter you are just going to enter into the fleet management industry or you have done successfully in this field, Traclogis can always be your partner.

Traclogis' strategy is to help our customers to lower threshold of entering into fleet management field, as well as saving cost for the fleet managers, Traclogis is ideally to provide full range of solutions to satisfied our clients, which include also OEM project according to customer's requests.
