Stainless Steel Float Level Switch with Cable (CX-FLM-FYKG-1)

Prod Model:	CX-FLM-FYKG-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Mode:	Optional
Float Ball Size:	Optional
Temperature:	-20~100c
Switch:	Nc/No
Power Supply:	220V
Accuracy Error:	±2mm (in Water)

Product Description

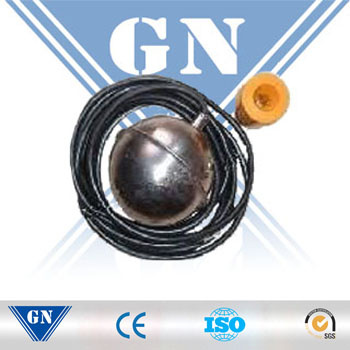

CX-FLM-FYKG-1 Stainless steel float level switch with cable


Brief introduction
1.Good effect for anti-corrosive function
2. SS304 stainless steel float  and CCC certificate normal high –quality rubber or PVC material cable
3.Can make sure the long term ,safety and stable usage

Main features
1.Good design and strict produce technics
2.Adopt stainless steel material ,high mechanical strength and good sealing
3.Cable adopt special material, it have high oil ,acid ,alkali ,corrosion resistance
4.The ON or OFF switch control signal is very reliable and stable ,without any error movement
5.Easy to install, convenient to debug ,fast fluctuation shift, random to select the control range

Main parameters

Rating current and voltage	10(8A)250V-10(4A)380V
Rating power	1KW
Working temperature	-20ºC-150ºC
Accuracy	±0.05m
Working pressure	1atm.
Medium	Rinsing, sewage ,oil
Cable length	Standard is 5m (can customize in other length)

Note:1.High temperature type :SS304 stainless steel float, mercury switch contact , high flexible silicone cable can reach the -20~150ºC .
     2.Normal temperature type :SS304 stainless steel float ,reed switch or mercury switch contact , CCC certificate high –quality rubber cable
      3.t can customize the anti-corrosive stainless steel float switch (just for normal temperature type switch)
