Stainless Steel Intelligent Flow Switch (MFM500A)
Introduction

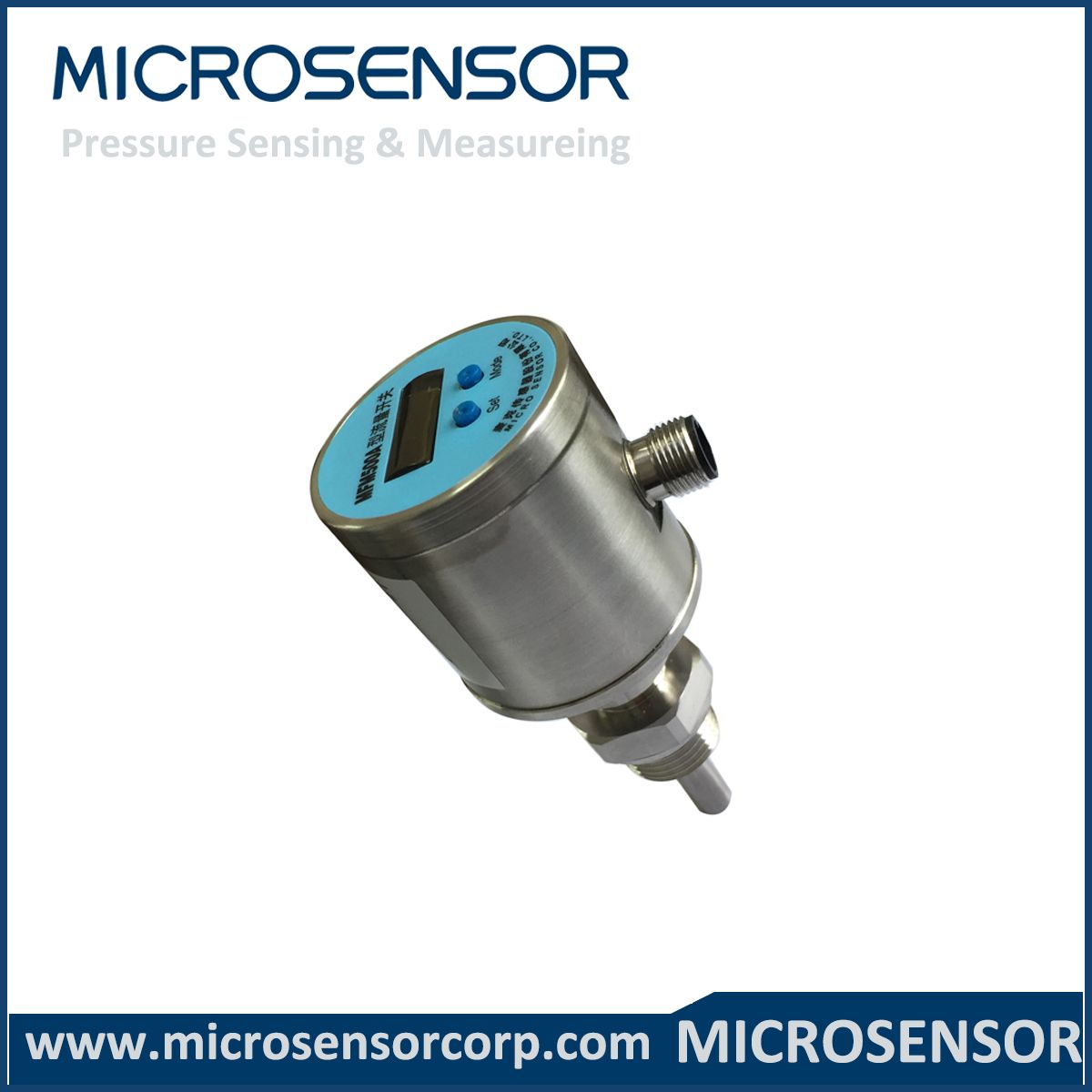

MFM500A Flow Switch is an intelligent thermal diffusion principle-based flow monitoring sensor. It can ensure measurement accuracy in the case of water temperature change and is available for real-time monitoring of pipe water flow.
With self-luminous OLED screen, it allows switchable display between the progress bar and digital display numbers. MFM500A supports quick action point set, also it has display inversion function that enables installation in any direction, and no need for frequent adjustment and maintenance.
Applications:
1. Power generation,
2. Metallurgy
3. Steel
4. Paper
5. Boilers etc.
Features:
·Optional power supply 24VDC or 220VAC
·OLED screen, switchable display between the progress bar and digital display
·All stainless steel housing, IP67 protection
·Temperature compensation
·2-way PNP ¦ 2-way NPN ¦ 1 relay output are optional
·No moving parts, maintenance-free
·Switch output, control point setting continuously on panel
·Compact size, support inverted display
·Mounting joint can be equipped with different interfaces for a variety of pipe diameters requirement
Specification:Measure Range:1cm/s~150cm/s (water); Optimal Range: 3cm/s~100cm/s (water) Power Supply: (24±4.8)V DC / 220VAC Working Current: ≤ 60mA Switch Accuracy: ±10cm/s Hysteresis: ±2cm/s~±8cm/s Initial Time: 2s~15s, 8s(typ.) Switch-off Time:1s~15s, 2s(typ.) Switch-on Time:1s~13s, 2s(typ.) | Output Signal: 1 relay2 NPN2 PNP Output Function: NO, NC(optional) Relay Characters: Switch voltage: ≤ 250V AC / 30V DC Switch current: ≤3A Transistors Characters: Switch Voltage Drop: ≤ 1.5V Switch Current: ≤ 400mA Display: OLED indicator, resolution 128×32 Electric Protection: Reverse, short-circuit, Over-voltage | |
Housing: S.S. Button: PP Probe: S.S. Installation: Joint mounting + adaptor Endurance Pressure: 10MPa Set: Button Electric Connection: M12×1 5-pin plug Gross weight : 265g | Water Temp. : -20ºC~80ºC Storage Temp. : -30ºC~85ºC Working Temp. : -20ºC~70ºC Protection: IP67 Temperature Compensation: 5ºC~50ºC(water) Electromagnetic Compatibility: GB/T17626.2/3-2006, GB/T 17626.4-2008 Shock: ≤3g (GB/T JJG 882-2004) Impact: ≤ 50g/11ms (GB/T 2423.5-1995) |
Note: The above specification test medium is water; 5cm/s~100cm/s; 20ºC(Factory defaults)

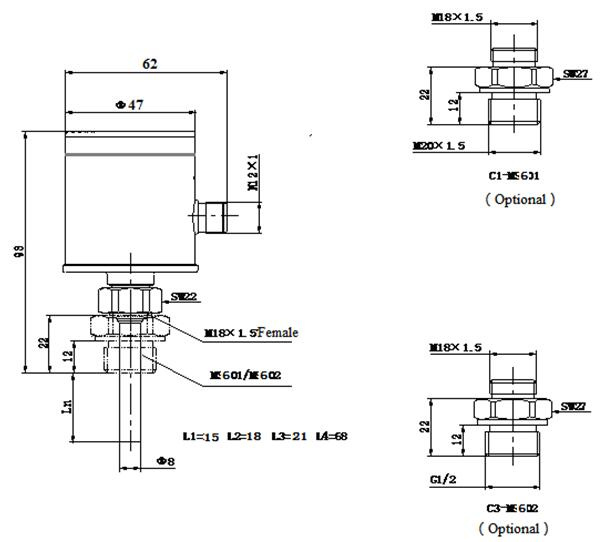

Outline Construction:
(Unit:mm)
Order Guide:MFM500A | Flow Switch | |
| | Code | Power Supply | |
| DC | 24VDC | |
| AC | 220VAC | |
| | | Code | Process Connection | |
C1 | M20×1.5 male adaptor(MS601) | |
C3 | G1/2 male adaptor(MS602) | |
| | Code | Output | |
J | 1×Relay Output | |
N | 2×NPN Transistor Output | |
P | 2×PNP Transistor Output | |
| | Code | Probe Length | |
L1 | 15mm | |
L2 | 18mm | |
L3 | 21mm | |
L4 | 68mm | |
| |
MFM500A DC C3 J L1 Whole Spec. | |
