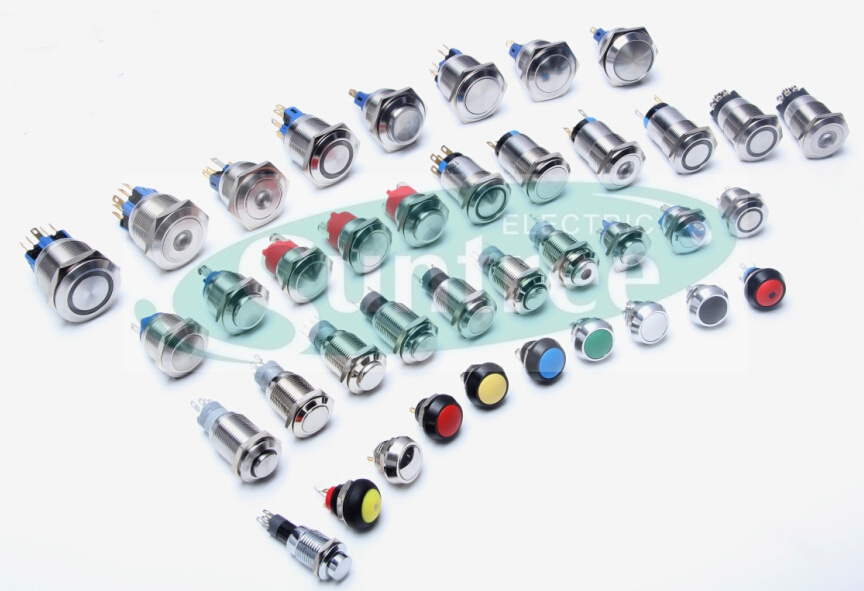

Stainless Steel Metal Waterproof 12 Volt Illuminated Push Button Switch
| Price: |
US $ 4/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Stainless Steel metal waterproof push button switch 12 volt illuminated pushbutton switch
Front Shape Flat
Terminal Screw/ Pin(2.8X0.5)
Max.Switch Rating 2A 48VDC
Contact Resistance ≤50MΩ
Insulation Resistance ≥1000MΩ
Dielectric Strengh 2000VAC
Operation Temp.-20~+55
Mechanical Life 1, 000, 000cycles
Electrical Life 200, 000cycles
Contact Material Silver Alloy
Latching type:When you push, the actuator is on and locked;When you push second, the actuator return to the original position.
Momentary type:When you push the actuator, button is on;After your fingers remove, the actuator returns and is off.
16mm Technical Data
Type | S16-F | S16-F-R | S16-F-D |
Illuminated Options | Non-Illuminated | Ring | Dot |
Max. Panel Thickness: | 0.394" (10.0mm) |
Terminal | Pin(2.8x0.5) |
Max. Switch Rating | 5A/ 250VAC |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000mΩ |
Dielectric Strengh | 2000VAC |
Operation Temp. | -20°C ~ +55°C |
Mechanical Life | 1,000,000cycles |
Electrical Life | >50,000cycles |
Contact Material | Silver Alloy |
Torque | 5 ~ 14Nm |
Operation Pressure | 3 ~ 8N |
Protection | IP65 |
Material | Actuator | Stainless Steel/ Anodized Aluminum |
Body | Stainless Steel/ Anodized Aluminum |
Base | PA |
Color | Type | LED (ratings @ 20mA) |
Color | R-Red | Y- Yellow | O- Orange | G- Green | B- Blue | W- White |
Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 |
Forward Volatge | 1.8~2.6 | 2.8~3.6 |
Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. |
6V/ 12V/ 24V/ 36V/ 110V/ 230V |
Life | Approx. 40, 000hours |
19mm Technical Data
Type | S19-F | S19-F-R | S19-F-D |
Illuminated Options | Non-Illuminated | Ring | Dot |
Max. Panel Thickness: | 0.394" (10.0mm) |
Terminal | Pin(2.8x0.5) |
Max. Switch Rating | 5A/ 250VAC |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000mΩ |
Dielectric Strengh | 2000VAC |
Operation Temp. | -20°C ~ +55°C |
Mechanical Life | 1,000,000cycles |
Electrical Life | >50,000cycles |
Contact Material | Silver Alloy |
Torque | 5 ~ 14Nm |
Operation Pressure | 3 ~ 8N |
Protection | IP65 |
Material | Actuator | Stainless Steel/ Anodized Aluminum |
Body | Stainless Steel/ Anodized Aluminum |
Base | PA |
Color | Type | LED (ratings @ 20mA) |
Color | R-Red | Y- Yellow | O- Orange | G- Green | B- Blue | W- White |
Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 |
Forward Volatge | 1.8~2.6 | 2.8~3.6 |
Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. |
6V/ 12V/ 24V/ 36V/ 110V/ 230V |
Life | Approx. 40, 000hours |

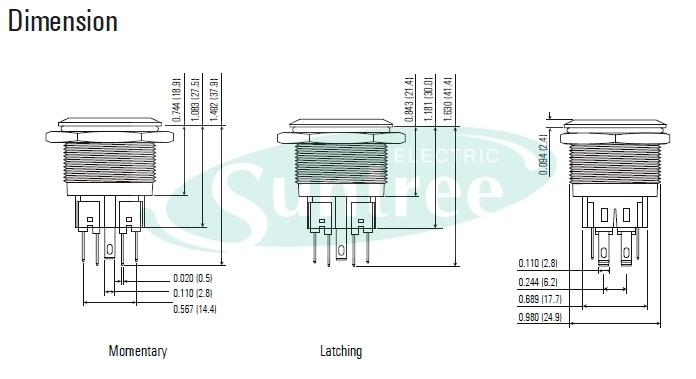

19mm Dimension

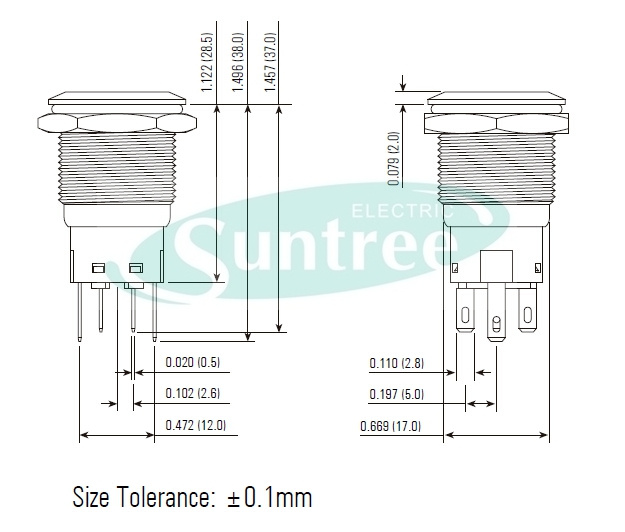

22mm Dimension

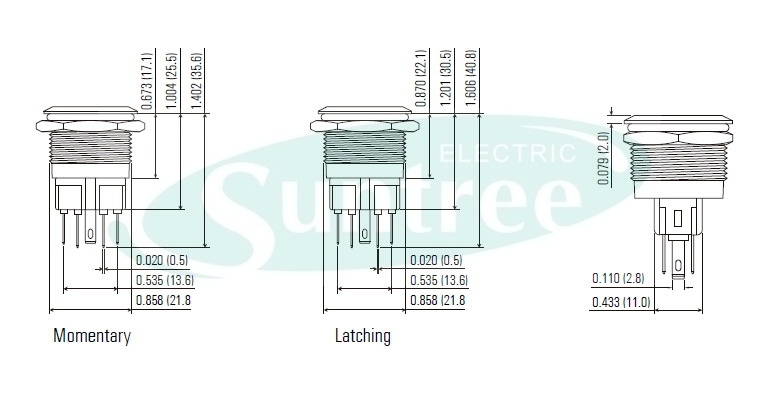

25mm Dimension
25mm Technical Data
Type | S25-F | S25-F-R | S25-F-D |
Illuminated Options | Non-Illuminated | Ring | Dot |
Max. Panel Thickness: | 0.394" (10.0mm) |
Terminal | Pin(2.8x0.5) |
Max. Switch Rating | 5A/ 250VAC |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000mΩ |
Dielectric Strengh | 2000VAC |
Operation Temp. | -20°C ~ +55°C |
Mechanical Life | 1,000,000cycles |
Electrical Life | >50,000cycles |
Contact Material | Silver Alloy |
Torque | 5 ~ 14Nm |
Operation Pressure | 3 ~ 8N |
Protection | IP65 |
Material | Actuator | Stainless Steel/ Anodized Aluminum |
Body | Stainless Steel/ Anodized Aluminum |
Base | PA |
Color | Type | LED (ratings @ 20mA) |
Color | R-Red | Y- Yellow | O- Orange | G- Green | B- Blue | W- White |
Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 |
Forward Volatge | 1.8~2.6 | 2.8~3.6 |
Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. |
6V/ 12V/ 24V/ 36V/ 110V/ 230V |
Life | Approx. 40, 000hours |
12mm push button switch momentary 1NO
Distinctive Features:
The Anti vandal switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.
Features:
- Variety of Material
- 1,000,000 cycles momentary
- Anti-Vandal IK09/ Sealed IP65
- Square and round versions available
Functions:
- Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
| Type | 12-B-S | 12-B-A | 12-F-A |
| Actuator Options | Round | Square |
| Max. Panel Thickness: | 0.236″ (6.0mm) |
| Terminal | Screw/ Pin(2.0×0.5) | Pin |
| Max. Switch Rating | 2A/ 48VDC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000mΩ |
| Dielectric Strengh | 2000VAC |
| Operation Temp. | -20°C ~ +55°C |
| Mechanical Life | >1,000,000cycles |
| Electrical Life | >200,000cycles |
| Torque | 5 ~ 14Nm |
| Operation Pressure | ~5.5N |
| Operating Stroke | ~2.5mm |
| Protection | IP65 |
| Material | Contact | Silver Alloy |
| Actuator | Stainless Steel/ Brass/ PBT |
| Body | Stainless Steel/ Brass/ Zin-Al Alloy |
| Base | PBT |
| Color | Actuator | red green yellow blue green red |
16mm push button switch momentary 1NO:
Technical Data:
| Type | SUN16-F | SUN16-B | SUN16-H |
| Actuator Options | Flat | Domed | High Flat |
| Max. Panel Thickness: | 0.236″ (6.0mm) |
| Terminal | Screw/ Pin(2.8X0.5) |
| Max. Switch Rating | 2A/ 48VDC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000mΩ |
| Dielectric Strengh | 2000VAC |
| Operation Temp. | -20°C ~ +55°C |
| Mechanical Life | 1,000,000cycles |
| Electrical Life | >50,000cycles |
| Contact Material | Silver Alloy |
| Torque | 5 ~ 14Nm |
| Operation Pressure | approx. 5.5N |
| Protection | IP65 |
| Material | Actuator | Stainless Steel/ Nickel plated brass/ *Gold plated Brass/ *Anodized Aluminum |
| Body | Stainless Steel/ Nickel plated brass/ *Gold plated Brass/ *Anodized Aluminum |
| Base | PBT |
Type | S22-F | S22-F-R | S22-F-D |
Illuminated Options | Non-Illuminated | Ring | Dot |
Max. Panel Thickness: | 0.394" (10.0mm) |
Terminal | Pin(2.8x0.5) |
Max. Switch Rating | 5A/ 250VAC |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000mΩ |
Dielectric Strengh | 2000VAC |
Operation Temp. | -20°C ~ +55°C |
Mechanical Life | 1,000,000cycles |
Electrical Life | >50,000cycles |
Contact Material | Silver Alloy |
Torque | 5 ~ 14Nm |
Operation Pressure | 3 ~ 8N |
Protection | IP65 |
Material | Actuator | Stainless Steel/ Anodized Aluminum |
Body | Stainless Steel/ Anodized Aluminum |
Base | PA |
Color | Type | LED (ratings @ 20mA) |
Color | R-Red | Y- Yellow | O- Orange | G- Green | B- Blue | W- White |
Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 |
Forward Volatge | 1.8~2.6 | 2.8~3.6 |
Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. |
6V/ 12V/ 24V/ 36V/ 110V/ 230V |
Life | Approx. 40, 000hours |
| Prod Model: |
S22 S19 S16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waterproof: |
IP65 IP67 |
| 1no 1nc: |
2nc 2no |
| Color: |
Red Green Blue Whiter Yellow Yellow Orange |
| Flat Round: |
High Round |
| Momentary: |
Latching |
| DOT Illuminated: |
Ring Illuminated |
| Stainless Steel: |
Anti-Vandal |
| Contact Resistance: |
≤50m |
| Dielectric Strengh: |
2000VAC |
| Operation Temp.: |
-20°c ~ +55°c |
| Kind: |
Single-pole on-off Switch |
| Type: |
No Nc |
| Usage: |
All |
| Brand: |
Suntree/OEM |
