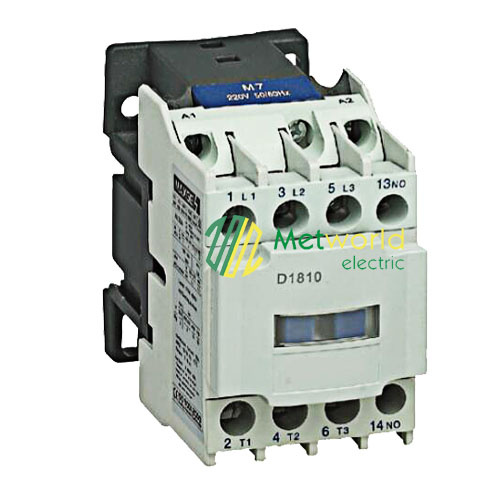

Stc1-D/W Series AC Contactor D09W

Prod Model:	D09W D12W D18W D25W etc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Operational Current 380V:	9
Rated Insulation Voltage(V):	690V
Rated Conventional Heating:	20
Power Of Controlled Motor220V:	2.2
Operating Frequency Electric AC-3:	1200
Operating Frequency Life AC-3:	300
Power Of Controlled Motor380V:	4
Power Of Controlled Motor660V:	5.5
Electric AC-3:	1000
Mechanical Life:	10
Size:	Subminiature
Theory:	Thermal Relay
Usage:	Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay, Contactor
Protective Characteristics:	Open Relay
Load:	Medium Power Relay
Action Principle:	Electromagnetic Type

Product Description

STC1-D/W series AC contactor is used for long-distance making and breaking in circuit freqency AC 50HZ or 60HZ rated voltage up to 690V and rated current up to 12A the product in combination with suitable thermal overload protects overload circuit the product confirm IEC60947-4-1

model	D09W	D12W	D18W
rated operational current 380V	9	12	18
rated conventional heating current	20	20	32
Rated insulation voltage(V)	690	690	690
power of controlled motor220V	2.2	3	4
operating frequency electric AC-3	1200	1200	1200
operating frequency life AC-4	300	300	300
electric life AC-3	1000	1000	1000
electric life AC-4	200	200	200
mechanical life	10	10	10

Shipping:

1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable

Warranty:
We provide 1 year warranty.

Why Choose Us?

1. Client's benefit first
2. Reputation
The reputation of our company is much more previous than the profit of business!
3. Specialized
Have been focusing on this line especially for more than 10 years!
4. Fully guaranteed quality
5. Competitive price
