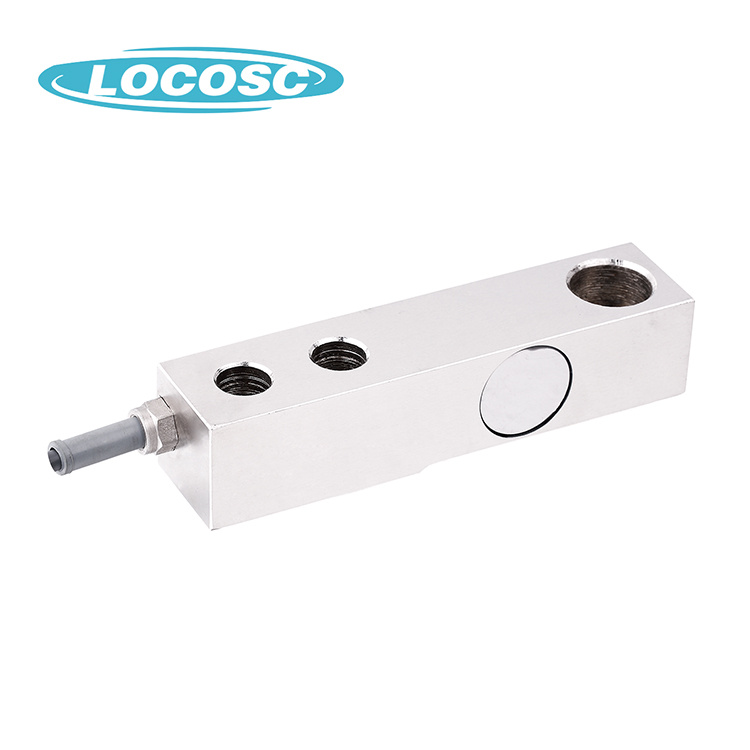

Steel Shear Beam Load Cell with OIML Ntep Approval

Name: Steel Shear Beam Load Cell with OIML Ntep Approval
Brand: all-electronics-online.com
SKU: 838702085
Availability: InStock
Rating: 4.7 (118 reviews)

Price:	US $ 10-50/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Packaging Details :Foam and carton
Delivery Time 25 days or order

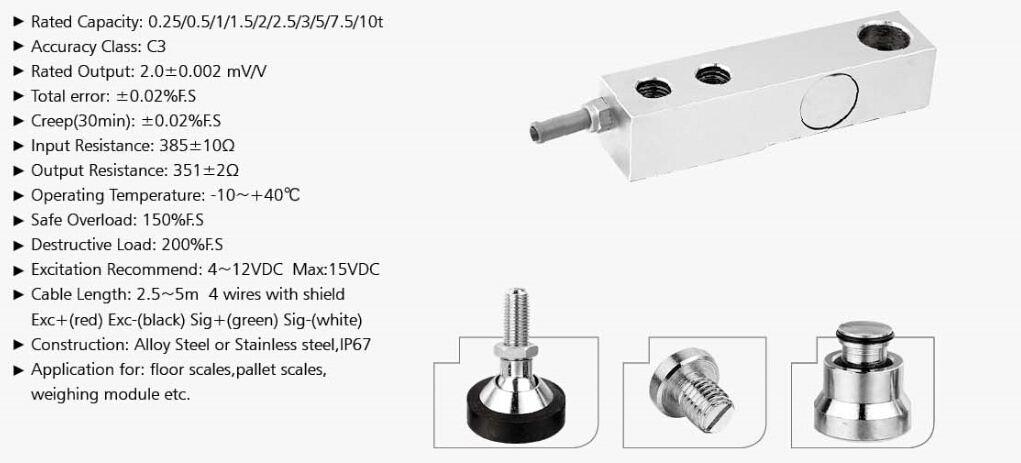

Rated Capacity	0.25/0.5/1/1.5/2/2.5/3/5/7.5/10t
Accuracy Class	OIML C3 NTEP:III,nmax:5000,Multiple Cell
Rated Output	2.0 ± 0.002mV/V
Total error	±0.02%F.S
Creep(30min)	±0.02%F.S
Input Resistance	385±10Ω
Output Resistance	351±3Ω
Operating Temperature	-10 - +40ºC
Safe Overload	150%F.S
Destructive Load	200%F.S
Excitation Recommend	4-12VDC Max:15VDC
Cable Length	2.5~5m 4 wires with shield Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction	Alloy Steel or Stainless steel,IP67

1. What essential information is needed for product selection?
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.

2. How will you ensure quality of your products?
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.

3. What terms of payment is acceptable?
T/T

4. When production could be arranged?
As soon as the payment was received.

Prod Model:	LP7110A
Out-Wire:	4-Wire with Screen
Material:	Alloy Steel or Stainless Steel
