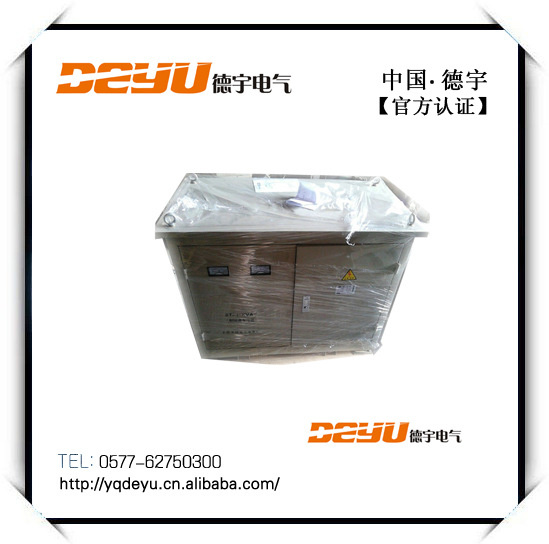

Product details
1. Input rated voltage: 380V or 220V phase 660V can be customized according to the needs
2 operating frequency: 50Hz-60Hz
3: The efficiency of ≥ 95%
4 temperature: <60
5. The 5 waveform distortion: <0.1%
6 pressure test: 2500V, 1 minutes without breakdown
About us
Wenzhou Deyu Electric Co., Ltd. Was founded in 1987, has been engaged in the manufacture of transformer. After years of efforts of all staff, the good faith management, in the same industry has become the scale and strength of well-known companies.
The products of the company to pursue "stability to take 100 points", and with the progress of science and technology, the continuous improvement of product performance and appearance, to the stable quality and honest service to win the trust of customers, and establish long-term friendly relations of cooperation with our customers, and create a better future!
| Capacity(KVA) | Voltage | Connection group name | Size and shape | Installation dimension | |
| Open type | Protective type | Open type | Protective type | K×J |
| input | output | | Bmax | Dmax | Emax | Bmax | Dmax | Emax | A±5 | C±5 | A±5 | C±5 | 8×16 |
| 0.15 | 660 | 380 | Y/yn0(Y/Y0) | 200 | 105 | 140 | 260 | 180 | 160 | 125 | 77 | | |
| 0.3 | 400 | 220 | Y/d | 180 | 110 | 180 | 260 | 180 | 160 | 75 | 70 | | |
| 0.5 | 380 | 110 | D/y | 180 | 115 | 180 | 260 | 200 | 120 | 75 | 75 | | |
| 0.75 | 200 | 36 | Y/d | 230 | 130 | 200 | 260 | 250 | 260 | 110 | 85 | | |
| 1 | | | | 230 | 140 | 200 | 315 | 200 | 260 | 110 | 90 | | |
| 1.5 | | | | 230 | 155 | 200 | 355 | 290 | 280 | 110 | 105 | | | 10×12 |
| 2 | | | | 270 | 165 | 250 | 180 | 130 | | |
| 2.5 | | | | 270 | 175 | 250 | 370 | 290 | 300 | 180 | 140 | | |
| 3 | | | | 270 | 185 | 250 | 180 | 150 | | |
| 4 | | | | 300 | 180 | 285 | 510 | 400 | 550 | 200 | 140 | 420 | 220 |
| 5 | | | | 300 | 200 | 285 | 200 | 155 |
| 10 | | | | 370 | 210 | 240 | 560 | 430 | 600 | 265 | 160 | 470 | 230 | Φ12 |
| 15 | | | | 420 | 245 | 390 | 600 | 440 | 620 | 310 | 180 | 580 | 240 |
| 20 | | | | 540 | 320 | 450 | 650 | 440 | 650 | 340 | 185 | 770 | 300 |
| 30 | | | | 540 | 380 | 480 | 870 | 500 | 780 | 340 | 210 | | |
| 40 | | | | 750 | 350 | 520 | 960 | 500 | 810 | 420 | 170 | 870 | 350 |
| 50 | | | | 180 |
| 60 | | | | 800 | 450 | 650 | 1000 | 810 | 810 | 420 | 195 | 900 | 350 |
| 80 | | | | 205 |
| 100 | | | | 860 | 450 | 650 | 1050 | 810 | 810 | 420 | 220 | 960 | 350 |
| 125 | | | | 860 | 500 | 700 | | | | | | | |
| 160 | | | | 950 | 600 | 800 | | | | | | | |
| 200 | | | | 1000 | 680 | 850 | | | | | | | |
| 250 | | | | 1050 | 700 | 850 | | | | | | | |
