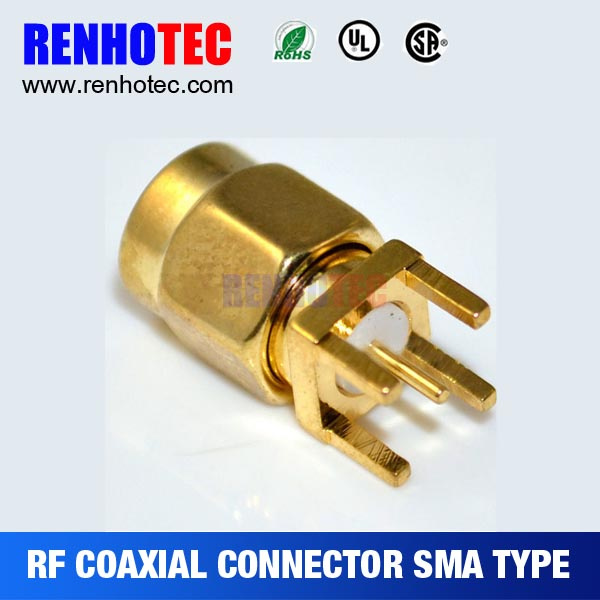

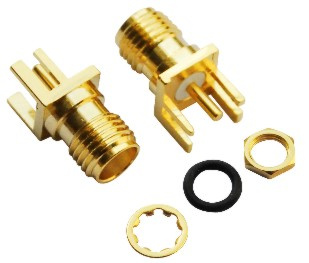

Straight Connector Female Gender PCB Edge Mountable Terminal Electronics RF SMA
Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.

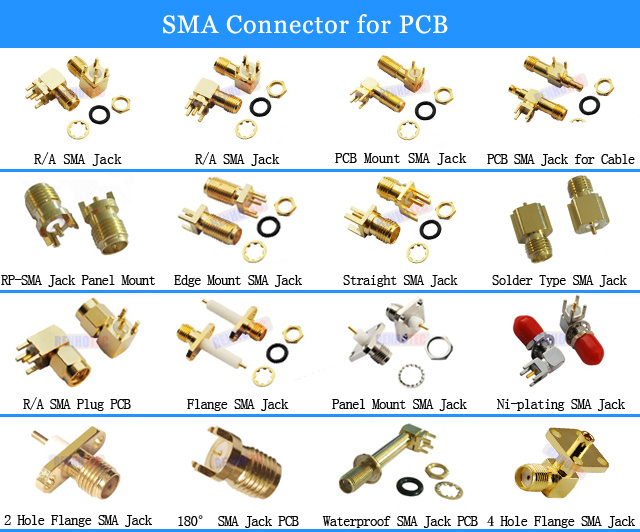

Renhotec offers many types of SMA connectors. PCB mount SMA female connector/ SMA type male cable connector/Flange chassis mount SMA connectors/ Straight right angle SMA connector/ Crimp solder SMA connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
| Major Technical Characteristics |
| Temperature Range | -5 degree to +155 degree
(PE cable -40 degree to +85 degree ) |
| Vibration | 100m/S2 (10 to 2000 Hz), 10G |
| Impendance | 50ohm |
| Frenquency Range | DC-12.4GHz( Semi-Rigled Cable DC-18GNz) |
| Working Voltage | 335V r.m.s at sea level |
| Workstandinging Voltage | 1000V r.m.s at sea level |
| Center Contact Resistance | ≤3Mohm |
| Outer Contact Resistance | ≤2.5Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.28N |
| Coupling Nut Retention Force | ≥180N |
| Insertion Loss | ≤0.15dB/6GHz |
| VoltaggeStanding Wave Ratio : |
| Straight | ≤1.10+0.02f |
| Right Angle | ≤1.20+0.03f |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass |
| Contact | Brass |
| Insulator | PTFE |
| Suitable cable |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |

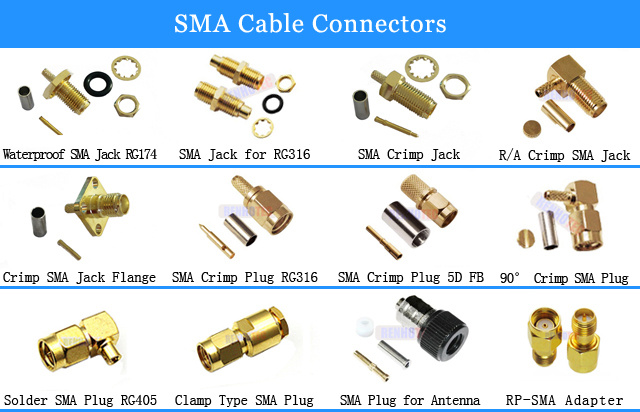

More SMA Connectors for Reference
Related RF Coaxial Connectors
Packing:
Normal packing: 100 pcs per tray or polybag ,1000pcs per carton.
Private packing and label service are available as per your requirement.
