| Prod Model: |
HT-5R5-605UY |
| Qualification: |
Reach-RoHS |
| Type: |
Supercapacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Manufacturing Material: |
Activated Carbon |
| Capacitance: |
6f |
| Tuning: |
Super Capacitor |
| Usage: |
Backup Power |
| Filter: |
Super Capacitor |
Product Description
Product Description
Jinzhou Kaimie Power Co., Ltd

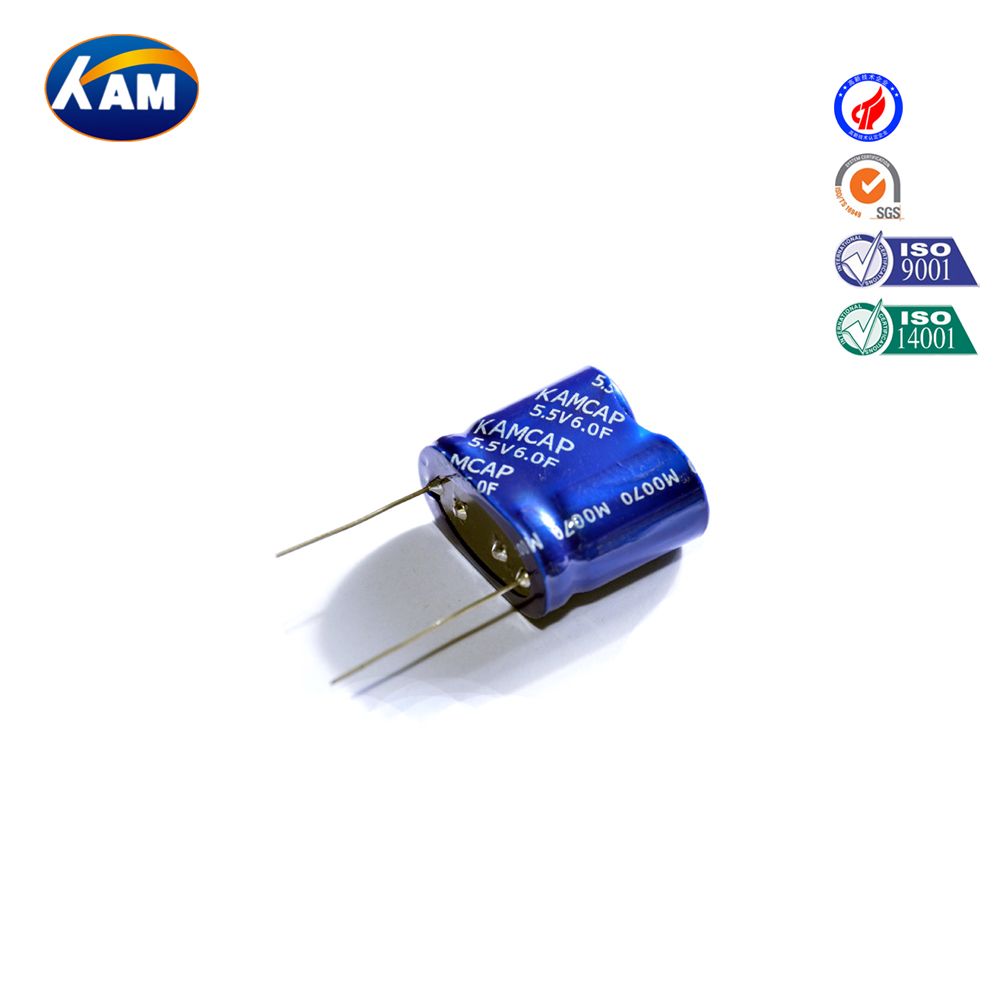

Combined high temperature 85 Degrees Celsius series 5.5V 6F super capacitor

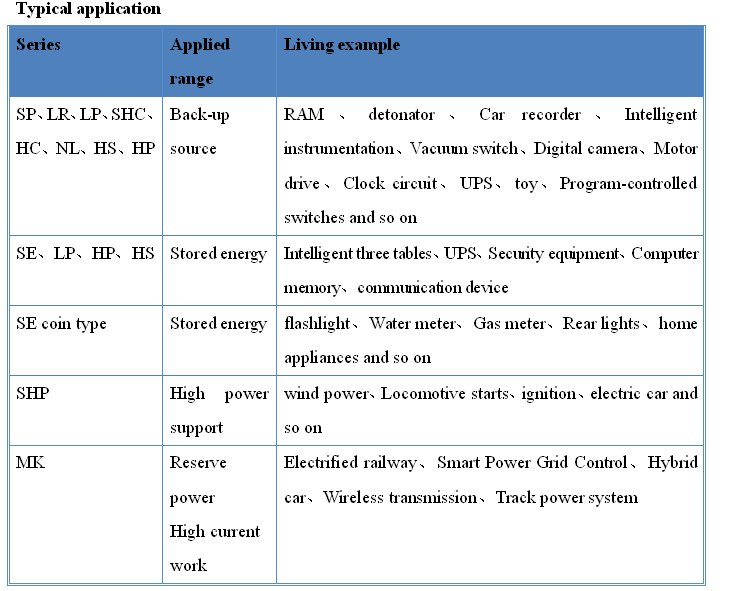

Performance characteristicsStandard energy series / standard power seriesTypical applicationRAM ,Detonator,Car recorder,Intelligent instrumentation,Vacuum switch, Digital camera, Motor drive, Clock circuit,UPS,Toys, Program-controlled switches and so on.Comply with ROHS standards, no Cd, Pb and other pollutants;High quality, reasonable price, help you to lowest your production cost.
Series of specifications| Series name | HT Series |
| Type name | HT-5R5 |
| Rated voltage VR | 5.5V |
| Surge voltage | 5.8V |
| Capacity range | 0.47F~10F |
| Use temperature range | -40 ~ +85ºC |
| Product life | Room temperature cycle life:25ºC,VR to 1/2VR Circulated between 1 million times,Capacity decay≤30%,ESR change≤4 times |
| | High temperature durable life:85ºC,maintain VR,1000 hours .Capacity decay≤30%,ESR change≤4 times |
Product performance table
HT-5R5Product type
| Capacity F
| ESR mΩ | 24h Leakage current
μA
| Product size mm |
| DC | AC 1kHz | Width T | Length W | Height H | Pitch P |
| HT-5R5-Z474VY | 0.47 | 900 | 600 | 10 | 8.5 | 17 | 16 | 12 |
| HT-5R5-Z105VY | 1.00 | 450 | 300 | 20 | 8.5 | 16.5 | 23 | 12 |
| HT-5R5-Z105VY | 1.00 | 420 | 280 | 20 | 10.5 | 21 | 23 | 16 |
| HT-5R5-Z155TY | 1.50 | 360 | 240 | 30 | 8.5 | 16.5 | 23 | 16 |
| HT-5R5-Z155VY | 1.50 | 300 | 200 | 30 | 10.5 | 21 | 23 | 16 |
| HT-5R5-Z205VY | 2.00 | 210 | 140 | 40 | 13 | 26 | 24 | 18 |
| HT-5R5-Z355UY | 3.50 | 180 | 120 | 70 | 13 | 26 | 24 | 18 |
Learn about the latest data ,Please contact me.
Phone: +86 416 4341210
In addition to conventional models, we can according to user requirements for special design.Packiaging & DeliveryPlastic tube, standard export carton
Delivery Detail:2~15 days after order
100% On-time shiping.1. All goods can be ship out by Air, Sea, Express(DHL, FeDex, TNT, UPS, EMS, SF)
2. Super capacitors got products certification from authority.
Our advantages
Strict production process control:
Always follow 6S standard, ISO9001,ISO14001,TS16949,REACH, RoHS requirement to keep product in quality.
Advanced technology:
Our single capacitors rate voltage is up to 3.0V,high temperature is up to 85C.
KAMCAP technique upgrade rapidly and surprise our customers every year.
Professional team:
Our R&D staff have more than 15 years experience in super capacitors filed and have rich experience in developing, designing and producing super capacitors.
100% full inspection
Every single capacitors are fully inspected by its unique processand the percent of pass is 100%.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.Q: How long is your delivery time?
A: Generally it is 2-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?
A: Yes, we can offer free samples .Q: Can your factory print my logo on the goods ?
A: Yes, we can print your own logo on the goods or the packing box.
Jinzhou Kaimei Power Co. Ltd located in jinzhou City. Liaoning province, China is a professional manufacturer of supercapacitor. The company is mainly engaged in developing, manufacturing and selling supercapacitors and has been awarded the title of "high-tech enterprises" by the government of Liaoning Province.
The company introduced many professional production and test equipments such as automatic winding machine, automatic jacketing machine laser spot welder, automatic separator, ARBIN test equipments for supercapacitor. With all these advanced machines, we can produce more than 100 specification of supercapacitors and can supply special products according to the customer's requirements. We have already obtained the ISO9001: 2008 International Quality System Certification and ISO14001: 2004 Environmental Management System Certification. Our products meet the requirements of RoHS, REACH, TUV and UL as well as TS16949 have already be sold to all over the world.
Our company has our own R&D centers, all our products were developed by ourselves. We have proprietary intellectual property rights for our supercapacitors. We have obtained 8 patents of invention and 6 utility model patents during the past several years. Now we are doing the Ministry of Science and Technology 's project "Development and research for supercapacitor system(State 863 projects).
After many year's development, now our company has already became the largest, most competitive manufacturer of supercapacitors with various specifcations in China. "To make the best supercapacitor and be the world class manufacturer" is the eternal goal of KAM. To supply our customers with high quality products, professional technical support and perfect services are our consistent pursuit.
