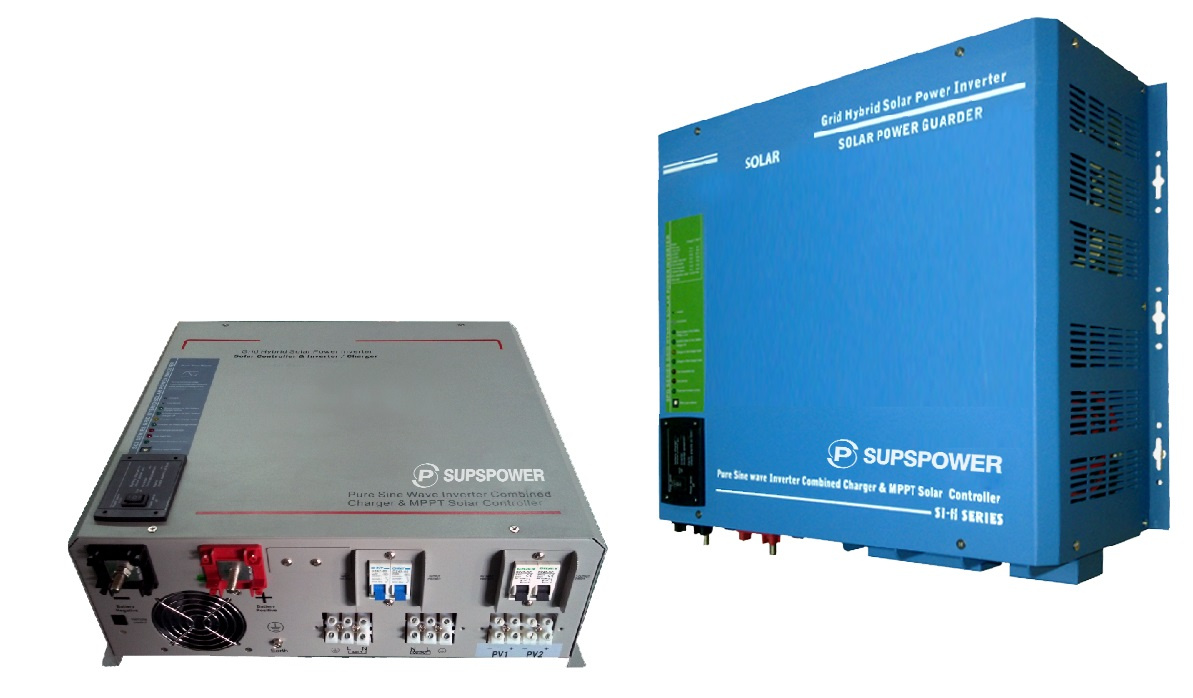

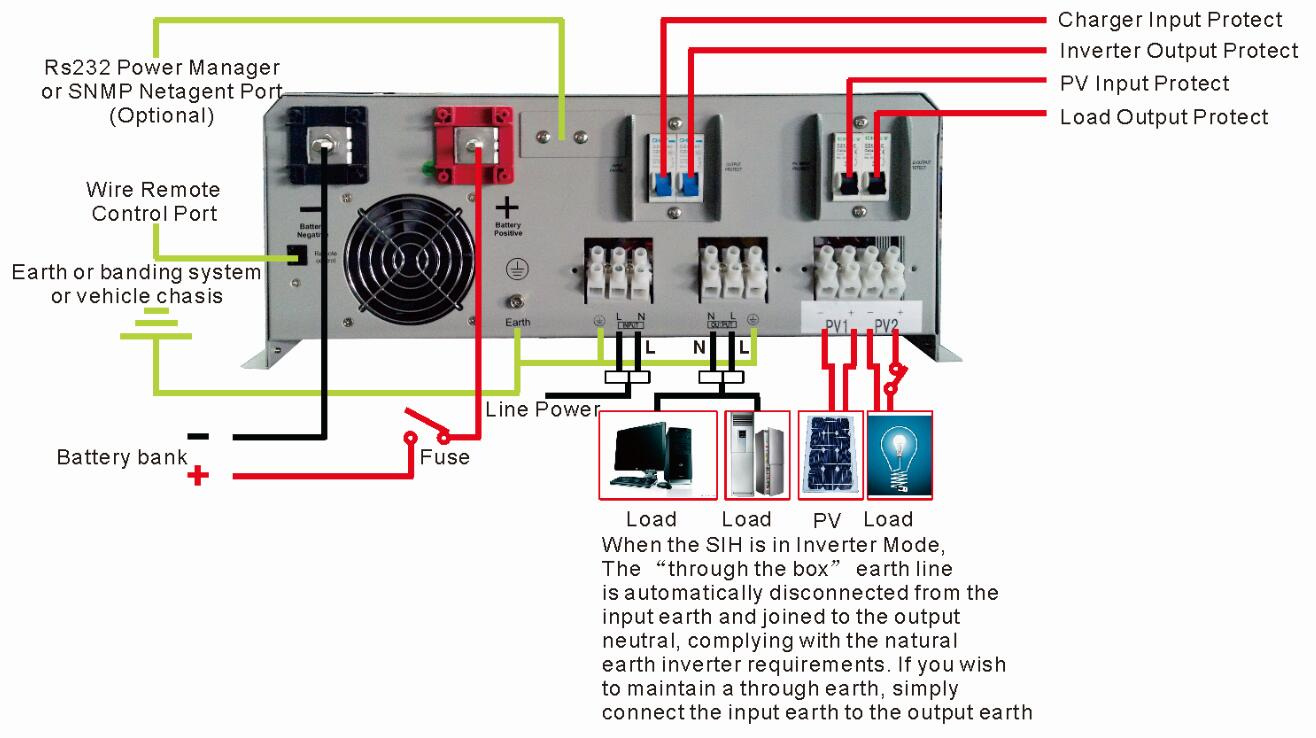

Sun-H Series off-Grid All-in-One System Solar Inverter

Design Structure:	Bat/AC Mode Selectable
Protections:	Over Temp. Over Load, Over Voltage
Transfer Time:	10ms

Product Description

SUN-H Series Off-Grid INV/Charger Solar All-in-one System

SUN-H Series is a professional off gird solar system solution, which is a combination of big power inverter and solar controller. It can be selected under different operational modes to adapt user varieties of requirements.

High Performance Index
Full Digitized professional off gird solar system solution,which is a combination of big power inverter and solar controller ;
Working modes switch automatically-AC Grid bypass mode,Inverter mode,AC charging mode,solar charging mode ;
Pure sine wave output which matches wave form of AC grid no matter it on AC grid mode or invert mode;workable on inductive load;
Remote control & RS232 communication port;
Power saver mode ;
Four stages smart charging,charging current adjusted automatically, maximum current can be changed within 20-75A ;
DIP switch optional:Selectable charging voltage for various battery type;
Manual control input & output breakers ;
AC Grid mode: AC bypass supplies load when AC is normal ,battery invert AC supplies load when AC is off. ;
Battery priority: Battery will supply power to load when battery get full -charged; AC bypass supplies load when battery low and at the meantime battery get charged from solar controller . It transfers back to battery invert mode when battery get full charged. It makes full use of solar energy and saves electricity .


Capacity	Sun 5-H 0.5KW	Sun 10-H 1KW	Sun 15-H 1.5KW	Sun 20-H 2KW	Sun 30-H 3KW	Sun 40-H 4KW	Sun 50-H 5KW	Sun 60-H 6KW
Host   Machine Specification
Design   Structure	BAT/AC Mode  Selectable
External   Structure	Output Isolated   Transformer Design,Wall   Mounted
Overall Efficiency	MPPT   Efficiency: > 95%
	Line   Mode:>95%
	BAT   Mode:>85%
	Power   Saver :Available when the load is less than 75watts
Noise(In 2 Meters)	<   60dB
Working   Temp.	0-40ºC
Storage   Temp.	-25 ~ 60ºC(Without  BATs)
Humidity	<   95% Non-condensing
Safety   Standard	IEC62040
Protection	Over   temp. Over load, Over Voltage
Generator   Capability	Yes
Transfer   Time	10ms
AC   Input  Specification
Phase   & waveform	Single   phase & Sinewave
Input   Voltage	100/120/220/240Vac
Input  Frequency	50Hz/60Hz   (Auto-Tracking)
Input   Voltage range	95-127Vac/194-253Vac
Input   Frequency  range	48-54Hz/58-64Hz
Output   Specification
Output   Voltage	100vac/120vac/220vac/230vac     Single Phase (AC Mode is Tracking Line   Power)
Output   Frequency	50/60Hz   (Auto Tracking)
Output   Frequency range	46-54Hz
Output   Waveform	50/60Hz   (Auto-Tracking)
Frequency   Tracking Range	46-54Hz
Output   Waveform	Pure   Sine Wave
Crest   Ratio	3∶1
Battery   Parameters
Battery   Voltage	12Vdc/24Vdc	12Vdc/24Vdc/48Vdc				24Vdc/48Vdc
DC Input   Voltage Range	10-16V/20-32V/40-64V
Over   charging	15.7V/31.4V/62.8V
Max   charging current	20A-75A
Battery  Type	GEL, AGM sealed lead   acid
MPPT   Controller   Parameters
PV Input   Voltage	15-30Vdc/30-55Vdc
Maximum   Charging Current	20A/30A/40A/50A
MAX.output   current (DC loads)	15A
Indicator  Parameters
7-LED   Display	From right to left:   LED1 line mode(green)  LED2 inverter   mode (green) LED3 Charging mode(yellow)      LED4 Fully charged (green)  LED5 Over temp (red)   LED6 Overload(red)   LED7 Saving mode(green)
2-LED  Display	Power, Charging mode
3-LED  Display	Charging mode(green   light). Inverter mode(green light), alarm (red light)
LCD  Display	Input voltage, output voltage/frequeneny,   battery voltage,load
Switch   Selector	Saving mode is on/off   when push the switch forwards/backwards,keeping horizontal is turning   inverter off
Audible   Alarm	AC power priority   (1-6)/battery power priority(7-9)
Communication   Parameters
Communication   Port	RJ11/RS232(Optional)
Physical   Parameters
Size mm(DxWxH)	486x400x181				486x432x1181
Net   Weight Kg	16	19	20	24	28	39	49	49
