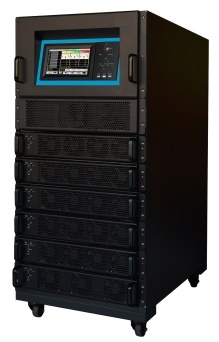

Sun-M Series Modular Hf UPS (10-90KVA)

Name: Sun-M Series Modular Hf UPS (10-90KVA)
Brand: all-electronics-online.com
SKU: 809581005
Availability: InStock
Rating: 5 (38 reviews)

Price:	US $ 3800-4800/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

MODEL		SUN600L-M10	SUN400L-M10	SUN300L-M10	SUN200L-M10	SUN900L-M15	SUN450L-M15	SUN300L-M15
Capacity		60kVA/60kW	40kVA/40kW	30kVA/30kW	20kVA/20kW	90kVA/90kW	45kVA/45kW	30kVA/30kW
Power module		SUN-M10(10kVA/10kW)				SUN-M15(15kVA/15kW)
INPUT
Phase		3P+ N + G (380/400/415V)
Voltage range		304-478Vac (line-line),100% load; 228-304Vac, load derated linearly
Frequency range		40Hz-70Hz
Power factor		>0.99
THDi		THDi<4% @ 100% linear load
OUTPUT
Voltage		3 phase:380/400/415V 1 phase:220/230/240V
Voltage regulation		1.5%
Power factor		1.0
THDu		THD<1%(linear load ),THD<5.5%(non-linear load)
Crest factor		3:1
Overload capability		110% for 1 hour; 125% for 10 min ;150% for 1 min; >150% for 200 ms
BATTERY
Voltage		±240VDC
Charge Power		20%*System Power
Charge voltage precision		±1%
SYSTEM
System efficiency		Normal mode:95% ;ECO mode:98% ;Battery mode:94.5%
Display		7.0" Color touch screen LCD + LED + Keyboard
IP Class		IP20
Interface		Standard :RS232,RS485,Dry contacts; Optional: SNMP
Operation/Storage temperature		0-40ºC/-25-70ºC
Relative humidity		0-95%(non-condensing)
Noise		56dB @ 50% load (1 meter away)
PHYSICAL
Weight	Cabinet	85kg	51kg	55kg	42kg	85kg	55kg	42kg
	Power Module	15.3kg				15.5kg
Dimension (WDH) (mm)	Cabinet	4857511033 (21U)	485697575 (11U)	485751575 (11U)	485697398 (7U)	4857511033 (21U)	485751575 (11U)	485697398 (7U)
	Power Module	43659085 (2U)

Appearance:	RM Structure
UPS Structure:	Online Double Conversion
Display:	LCD+LED
Communication Port:	RS232, RS485, Snmp(Optional), Dry Contact
Power Factor:	>0.99
Output Waveform:	Pure Sine Wave
Phase:	Three Phase
Type:	On-line
Protection:	Sealed Maintenance Free
Brand:	Supstech

SHIDA (SUPSTECH), founded in 1997 as a subsidiary corporation of START COMPUTER GROUP, is based in Shanghai. We are one of the leading 1st generation of uninterruptible power supply (UPS) solution providers in China. For 20 years, we have been specialized in the research, manufacture, sales and services of UPS with our production base in Shenzhen. We accumulated rich experiences and typical cases in the range of applications to banks, insurance, securities, financial industry, international airport, utility electric supply, radio and television network, metro system, maritime bureau, medical system, public services, education, and cloud data center. Also we are working with GE, Delta, Emerson, Pakistan National Banks, Vodafone, Cornell University, InfoSec, and Olympic Organizing Committee internationally. Till now we have more than 20 offices & service centers at home and abroad, is the honorable brand name both in China and overseas.

With production capacity of 150, 000 units and 20 years of experiences in UPS industry, SUPSTECH ensures you with proven technique, high reliable quality, cost-effective and outstanding service.
