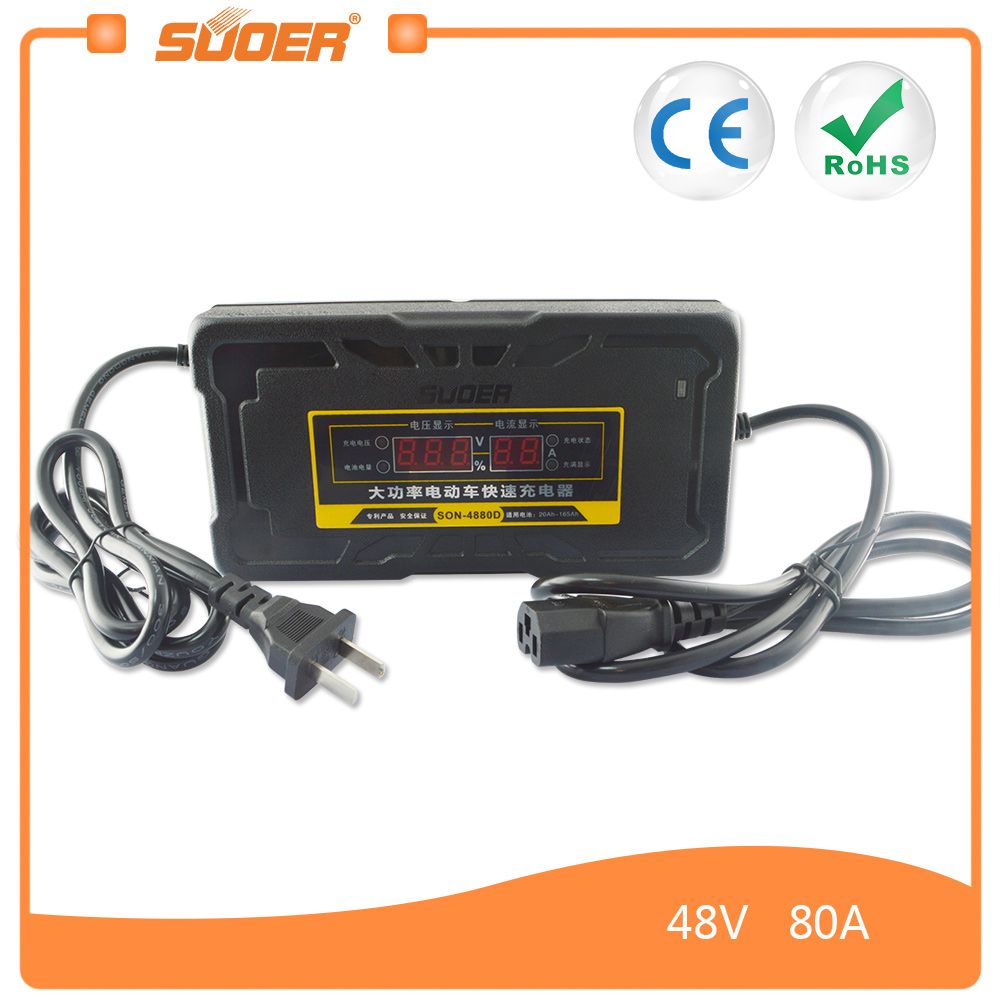

Suoer 48 Volt 8.9A Fast Smart Car Battery Charger for Electric Vehicle (SON-4880D)
New Feature
1.Adopt PWM three-step fast charging mode
2.Applicable for 48V/60V/72V electric viecles:Electric tricycles ,Electric cars ,Electric lift trucks ,Electric pallet trucks ,Forklift trucks, Golf carts,Electric sightseeing cars ,Electric tour buses and electric cars, and small generator set,etc.
3.Input voltage AC 220V±20%
4.LED screen displays voltage out, current, capacity, parameter and status.
5.Output charging current:48V/13A,60V/11A,72V/9A
Feature
1.This battery charger adopts three-steps charge mode , and use switching power supply integrated technology. The battery can automatically track the real-time changes , and timely charging according to the constant current ,constant voltage ,step-down trickle intelligent mode . When the battery gets fully charged ,it will be turned off automatically.
2.With short circuit protection ,when the power is bad in short circuit ,the charger will protect automatically .
3.With fast charging speed , low battery dehydration rate,not overcharging
4.This product is a dedicated battery charger for electric vehicle.

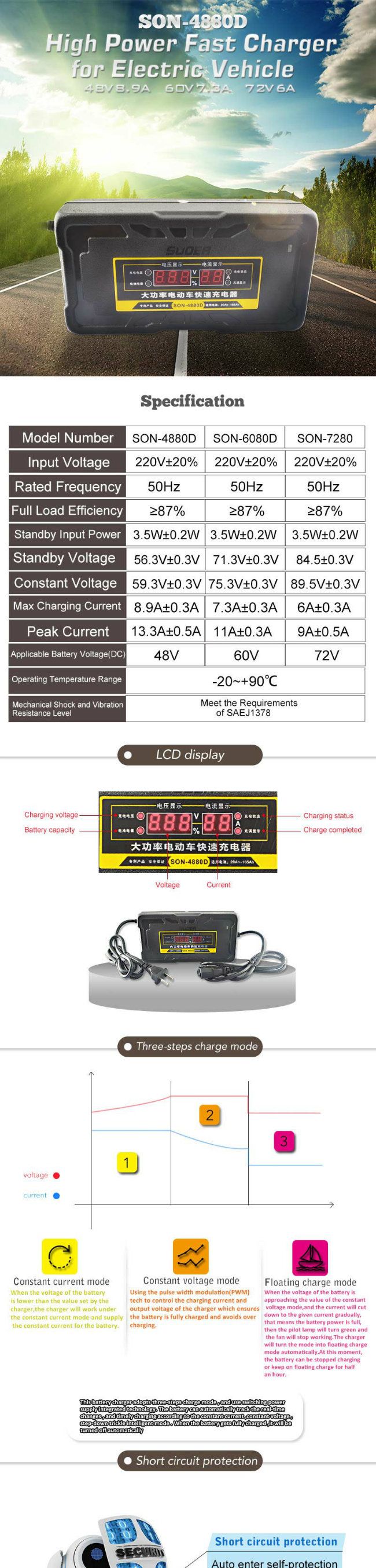

Technical Parameters
High-power Fast Charger for Electric Car |
Model Number | SON-4880D | SON-6080D | SON-7280 |
Input Voltage | 220V±20% | 220V±20% | 220V±20% |
Rated Frequency | 50Hz | 50Hz | 50Hz |
Full Load Efficiency | ≥87% | ≥87% | ≥87% |
Standby Input Power | 3.5W±0.2W | 3.5W±0.2W | 3.5W±0.2W |
Standby Voltage | 56.3V±0.3V | 71.3V±0.3V | 84.5±0.3V |
Constant Voltage | 59.3V±0.3V | 75.3V±0.3V | 89.5V±0.3V |
Max Charging Current | 8.9A±0.3A | 7.3A±0.3A | 6A±0.3A |
Peak Current | 13.3A±0.5A | 11A±0.3A | 9A±0.5A |
Applicable Battery Voltage(DC) | 48V | 60V | 72V |
Operating Temperature Range | -20~+90ºC |
Mechanical Shock and Vibration Resistance Level | Meet the Requirements of SAEJ1378 |

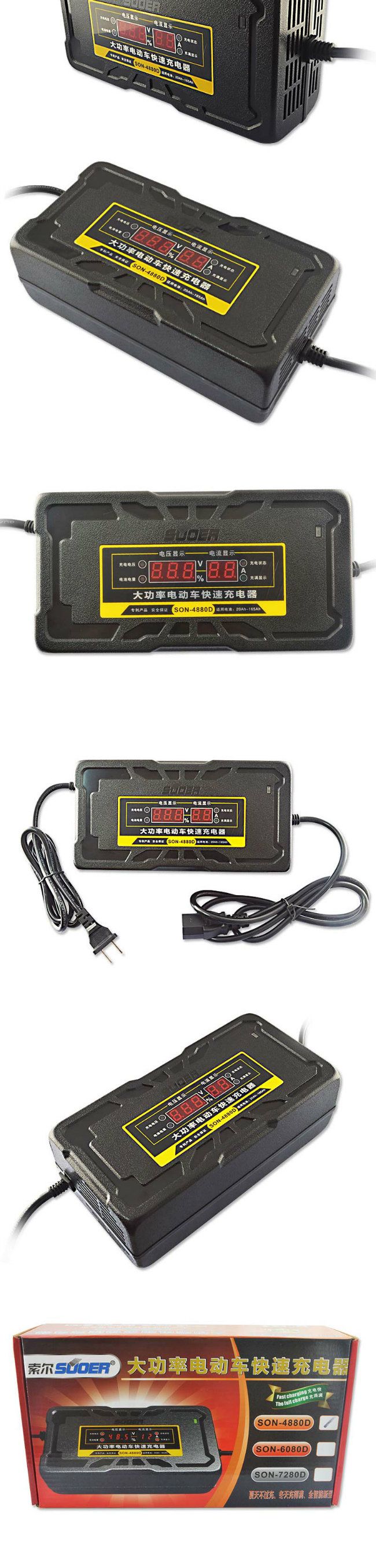

Product Photos
FAQs
1.May I take some samples to test before placing the order ?
Answer:Yes,but customers need to pay for the sample fees and express fees,and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer:1~5 days after the deposit payment is confirmed.
3.What's your payment terms for sample?
Answer:You can pay via T/T
4.What's the price terms can you offer for us?
Answer:We can accept EXW,FOB,CIF and so on.
5. Do you have any certifications for your products?
Answer:We have ISO9001:2000,CE,RoHS,certifications for all of our products.
6.Where is your main market for your products?
Answer:Most of our Suoer brand products are exported to Southeast Asia,Africa and Mid East.
