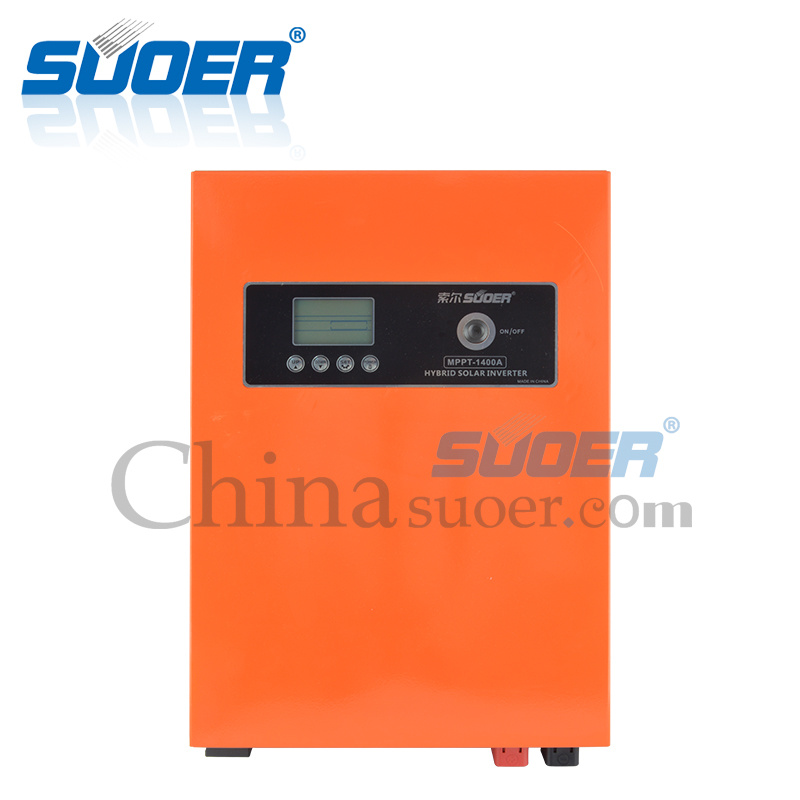

Suoer New Arrival 12V 230V 1000W Solar Hybrid UPS Power Inverter Modified Sine Wave Inverter (MPPT-1400)
Features1.Advanced modified sine waveform output(Almost suitable for most of home resistive appliances
2.Built-in MPPT charging controller 30A
3.Auto switch to inverter output/mains supply acc to the AC voltage range(<15ms)
4.Input voltage range of mains:170V-280V or 90V-280V
5.Auto identification of output frequency:50Hz or 60Hz

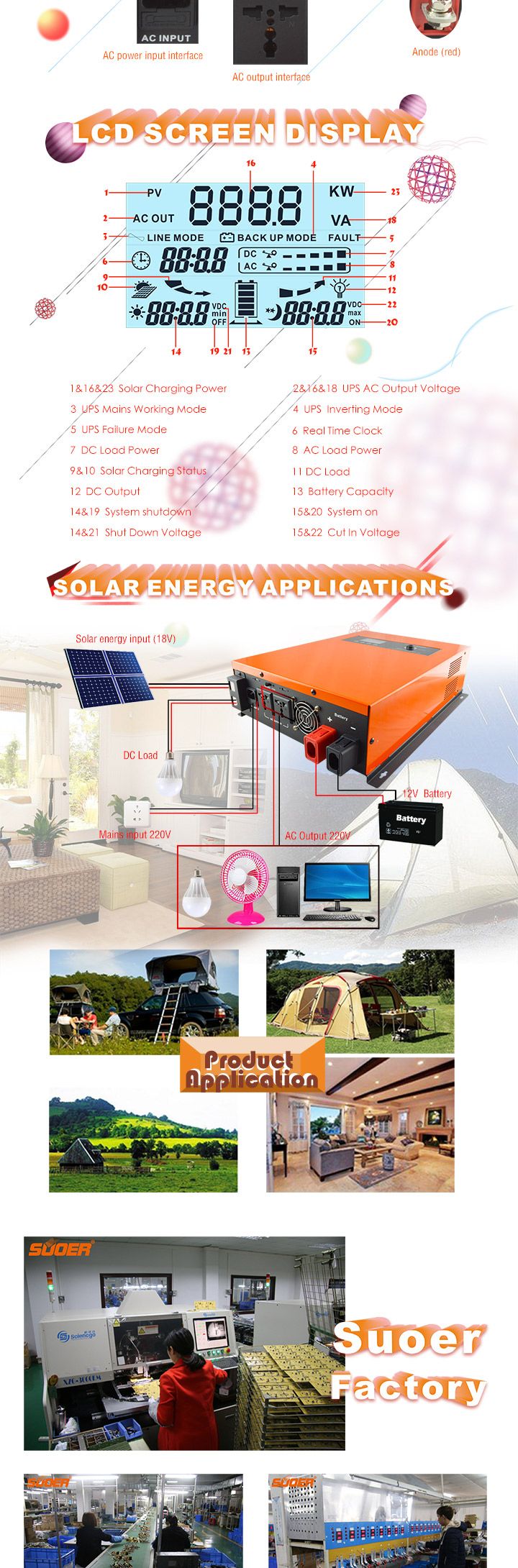

6.LCD+LED screen display(Output power,Output voltage,battery capacity)
7.Overcharge protection,Overload protection,Over-voltage protection,Short circuit protection,Low battery protection.SpecificationThis hybrid high frequency photovoltaic inverter built in MPPT charge controller and mains charger. High-speed chip centralized control, overload protection, over current protection, high temperature protection, short circuit protection, battery high and low voltage protection. LCD display shows the machine operation and setup parameters. Using high quality components to ensure product quality and high performance. The inverter's output waveform is pure sine wave.
VI Function Description:
AC charging mode(City power mode): this mode is mainly used as standby power supply, which is mainly charged by city power. When the city power supply is in excess of the allowable limit, the inverter will enter the stand-by power supply mode (powered by the inverter), automatically switch to charging mode, switching time is less than 6 milliseconds. In this mode the city power charger and PV MPPT charging function will be enabled under the right conditions. This function is especially designed for the situations that the city power supply is not stable and electrical equipment needs a continuous power supply.
PV charging mode (solar power mode):
this Inverter is mainly used as photovoltaic power generation. When the solar power is insufficient, or when the battery voltage is lower than 22V, this machine will automatically switch to the city power supply, when the battery capacity is recharged to 80% of the capacity(the battery voltage is recovered to 28V or higher), the inverter will switch back to photovoltaic power supply (power inverter). During this mode the city power charging function will be deactivated. This function is mostly depended upon the stability of the city power supply and adequate illumination,the inverter will be preferred for generating power from solar energy
PV MPPT charging function will be enabled under the right conditions in two power supply modes above.

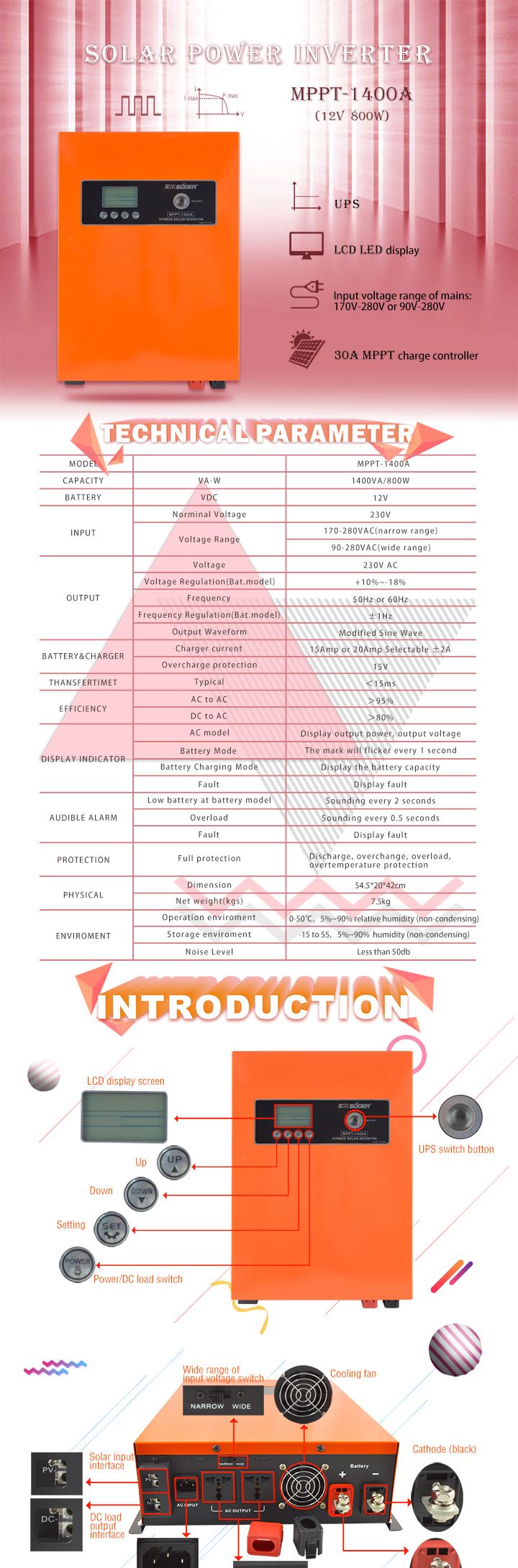

Technical Parameter| Model | | MPPT-1400 | FPC-T1800CA |
| Capacity | VA/W | 1400VA/800W | 1800VA/800W |
| Battery | VDC | 12V | 12V |
| Input | Norminal Voltage | 230V | 230V |
| Voltage Range | 170-280VAC(narrow range) | 170-280VAC(narrow range) |
| 90-280VAC(wide range) | 90-280VAC(wide range) |
| Output | Voltage | 230VAC | 230VAC |
| | Voltage Regulation(Bat.model) | +10%˜-18% | +10%˜-18% |
| | Frequency | 50Hz or 60Hz | 50Hz or 60Hz |
| | Frequency Regulation(Bat.model) | ±1Hz | ±1Hz |
| | Output Waveform | Modified Sine Wave | Pure Sine Wave |
| Battery &Charger | Charger current | 15Amp or 20Amp Selectable±2A | 15Amp or 20Amp Selectable±2A |
| | Overcharger protection | 15V | 15V |
| Thansfertimet | Typical | <15ms | <15ms |
| Efficiency | AC to AC | >95% | >95% |
| | DC to AC | >80% | >80% |
| Display Indicator | Ac model | Display output power ,output voltage | Display output power ,output voltage |
| | Battery model | The mark will flicker every 1 second | The mark will flicker every 1 second |
| | Battery charging model | Display output power ,output voltage | Display output power ,output voltage |
| | Fault | Display fault | Display fault |
| Audible alarm | Low battery at battery model | Sounding every 2seconds | Sounding every 2seconds |
| | Overload | Sounding every 0.5seconds | Sounding every 0.5seconds |
| | Fault | Display fault | Display fault |
| Protection | Full protection | Discharge,overcharge,overload, over temperature protection | Discharge,overcharge,overload,over temperature protection |
| Physical | Dimension | 54.5*20*42cm | |
| | Net weight(kgs) | 7.5kg | |
| Enviroment | Operation enviroment | 0-50ºC~90% relative humidity(non-condensing) | 0-50ºC~90% relative humidity(non-condensing) |
| | Storage enviroment | -15 to 55,5% to 90% relative humidity(non-condensing) | -15 to 55,5% to 90% relative humidity(non-condensing) |
| | Noise level | Less than 50db | Less than 50db |

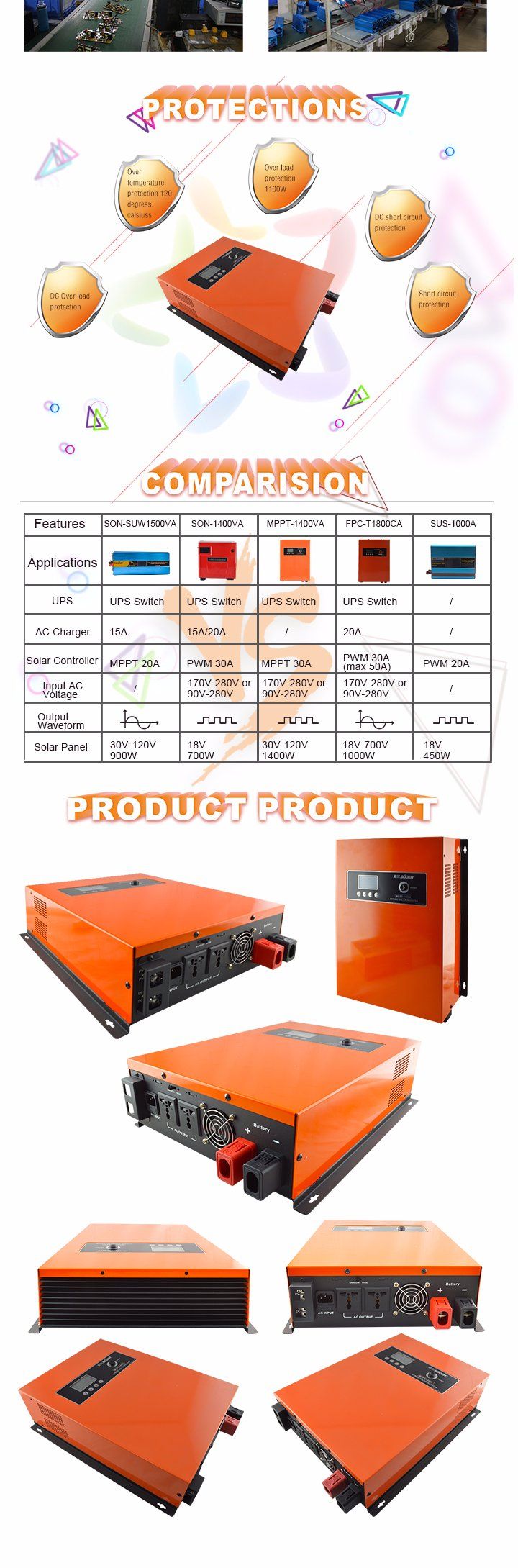

Product Photos
