Supply Batteries Lithium Battery 48V 9.6ah Hl02 13s3p Battery Pack for E Bike/ E Sctoor
| Price: |
US $ 90/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
UBT-48v-9.6Ah |
| Weight: |
Approximately 4kg |
| Lead Time: |
3 Days |
| Certification: |
UL, Ce, RoHS, Un38.3, MSDS |
| Dimension: |
Standard Model |
| Key Word: |
Lithium Battery |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Rated Capacity: |
9.6ah |
| Standard Voltage: |
48V |
| Electrolyte: |
Lithium/LiFePO4 |

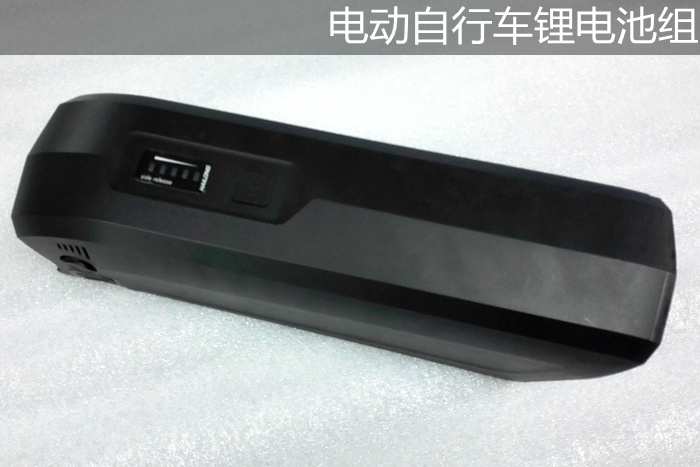

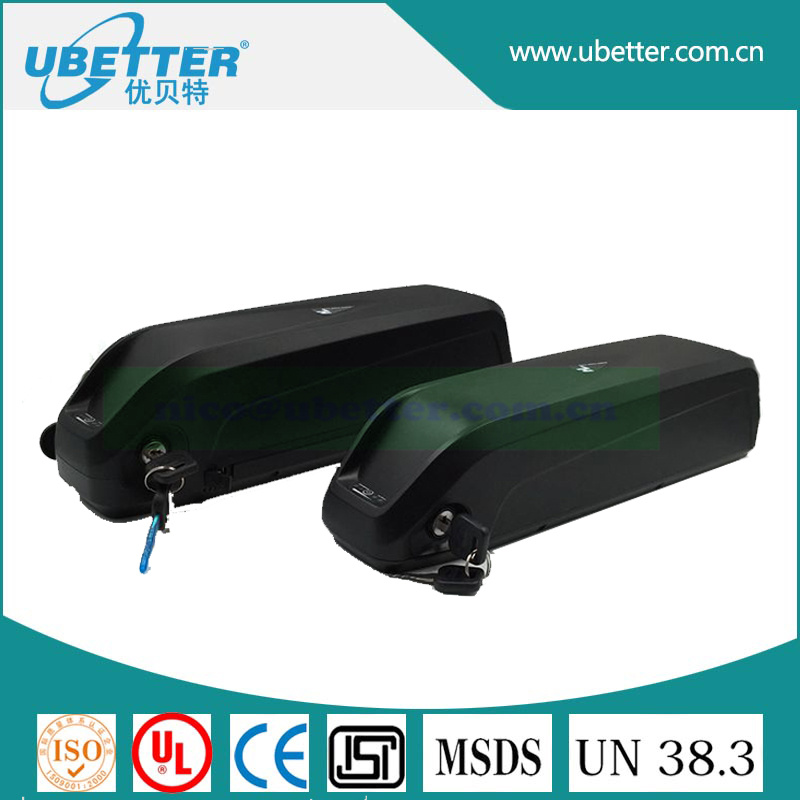

Product Description
Supply batteries Lithium battery 48V 9.6Ah HL02 13S3P battery pack for E bike/ E sctoor Description:| No. | Project | Description |
| 1 | Voltage | 48V |
| 2 | Capacity | Typical:9.6Ah(0.2C charge and discharge) |
| Min.:9.5Ah |
| 3 | Resistance | ≤180mW (AC 1kHz) |
| 4 | Standard | CCCV :Current=10A,Voltage=29.8±0.05V,cut off current = 0.1A |
| 5 | Max continuous charge current | 4A±0.2A,it can be changed depend specified requriements. |
| 6 | Standard discharge | Discharge current=20A,Cut-off voltage =21V±0.05V |
| 7 | Max conitnuous discharge current | 45A, it can be changed depend specified requriements. |
| 8 | Peack discharge current | 60A(5s), it can be changed depend specified requriements. |
| 9 | Cyclelife time | 3-5 years |
| 10 | Working temeprature | Charging:0~42ºC ,Discharging:-20~60ºC |
| 11 | Outgoing Voltage | 25.2V~29.4V, it can be changed depend specified requriements. |
| 12 | Weight | Approx. 0.96 kg |
| 13 | Balancing charge function | When charging, the single cell voltage exceeds 3.5V ± 0.05V, balancing function is activated , the batteries voltage is lower than 3.45V ± 0.05V, balancing function is stopped |
| 14 | Safety funcation | Overcharge protection, automatic recovery .
|
Over-discharge protection , charging restored
|
Overcurrent , short circuit protection , load disconnect recovery .
|
| Low /high-temperature protection , automatic recovery temperature returns to normal range . |
Company InformationHow to order? 1. If you are interested in any products, please tell us the model No, detailed parameter, we will quote you in time 2. After confirmation of the price, we will make the PI for you3. After receiving your deposit, we will arrange shipment for you4. After shipment, we provide you with the bill of lading number
Hongkong Exhibition Show
Why choose us? Our advantage
Product | 1)Green product with CE/MSDS/MGS/ISO certificate |
| 2) Mercury content: ≤1ppm and Cadmium Free |
| 3)no leakage |
| 4) International Approvals |
| 5) Military Specifications |
| 6)Packaging as your request |
| 7)favorable price |
| 8) Prompt Delivery |
| 9) Small Orders Accepted |
company | 1) Establishment: 2014 professional battery manufacturer |
| 2) Employess: 500 including 10 professinal R&D engineer |
| 3) Capital: US$100 millions |
| 4) Exported Countries: 40 Countries |
| 5) International Agents Countries: The United States, Britain, Canada, Germany, Russia, Poland, Brazil, India, etc |
| 6) Production Capability: 2,000,000Ah per month for rechargeable battery and 40,000,000pcs. primary battery |
| Personalized OEM ,Welcome |
| 1.Make your LOGO on the each battery |
| 2.Make your alu foil, card design |
| 3.Meet your packaging request |
FAQ Q1: What's inquiry reply time?A1: We will reply your inquiry as soon as possible within 6 hours (maybe big time difference between us). Q2: What's certificate?A2: We have CE, RoHs, ISO9001 SGS Q3: What's warranty? A3: For the batteries, we have 1 years warranty. If any quality problems on our side occured during this warranty period, we will replace them at our cost (including the shipping cost). Q4: What's price?A4: We provide reasonable price and recommend suitable batteries to our customers. Q5: What's delivery time? A5: We give 7~15 days delivery time for formal battery orders. Q6: What's MOQ?A6: We can accept small MOQ at the beginning to help customer enter into market firstly. Q7: What's service? A7: Our policy is to provide more faster & safer & easier service for our customers. We can provide Technical Support. We can accept TT, Western Union, L/C, OA, etc.. We can provide others service etc. . Q8: What's marketing supports?A8: We are willing to help you do the marketing together. We can provide different free products, and we can also support you do some attractive suitablelocal advertisement. Welcome to contact us now

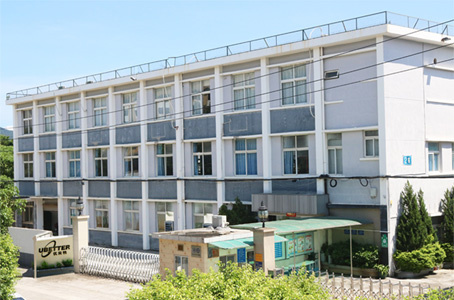

Introduction
Shenzhen Ubetter Co., Ltd, founded in 2013, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service.
Shenzhen Ubetter, The Leader of Li-ion polymer batteries manufacturer, located in Shenzhen city, is specialized in Power battery series(such as electric-bikes, electric scooter and electric cars, etc), Storage battery, High-rate discharge Lithium ion battery(10C-60C high-rate discharge series such as air modeling and power tool etc), ). High Temperature Li-ion battery(up to 85° ), Low Temperature Polymer Li-ion battery(up to -40° ), Ultra-thin battery(up to 0.43mm). Ubetter has succeeded to solve the power battery core technologies problem: High Consistency and Excellent Safety Performance. Products' performance is leading in domestics market and in path with international standards. Products are widely employed in digital products series(such as MP3, UPS, etc. ), notebook PC series, 18650 series, and sales over 100 countries worldwide.
With over 4000 square meters dust-free workshop, 200 employees, automatic production lines and modernized equipments, Ubetter is offering reliable quality, efficient delivery and competitive price, by which we have gained global reputation. We are qualified for ISO9001, UL, CE, RoHS, IEC, UN38.3, MSDS, patent approves and National Hi-TECH Enterprise certification.
Our advantages
Shenzhen Ubetter Technology Co., Ltd. is a famous enterprise in the line of China's new energy business, mainly producing environmentally friendly power battery for electric vehicles, integrating the research and development, producing and selling of Lithium-ion Battery, wind and solar Energy Storage Battery as well as various kinds of batteries. Bearing with the spirit of pragmatism and innovation, we have been endeavoring to produce products with best quality for all walks of life by people-oriented management and high efficiency production line. Our R&D department has mustered skilled persons with over ten years' experience in battery research and developing, playing an leading role in the field of R&D of more and more series of batteries. Meanwhile we have cooperated with many big battery enterprises for many years and have numerous connections in this line of business. We have abundant battery resources with guaranteed quality. Shenzhen Ubetter Technology Co., Ltd. is located in the beautiful Dapeng bay with charming and beautiful scenery, excellent geographical location and convenient transportation.
