Surface Mount Tvs Diode Smcj20A for Circuit Protection

Name: Surface Mount Tvs Diode Smcj20A for Circuit Protection
Brand: all-electronics-online.com
SKU: 825640535
Availability: InStock
Rating: 4.9 (82 reviews)

Price:	US $ 0.0088-0.01/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMCJ20A
Pack:	2K/R or 5K/R

Product Description

Professional Diode Manufacturer--YFSEMI
SMCJ20A Transient Voltage Suppressors (TVS Diode)

Product Description
SMCJ20A SMC/DO-214AB Package

1.Company Profile:
YFSEMI specializes in semiconductor discrete devices Diodes over 8 years. The annual output is 8 billion. Our main products include schottky rectifiers, high efficiency rectifiers,transient voltage Supressor(TVS) , Super Fast rectifiers,Fast recovery, the rectifiers for purposes of energy-saving lamps, power switches, television sets, indicators, smart meters and home applications.

2.Product Description:
SMCJ20A SMC/DO-214AB Package /OEM Schottky Barrier Rectifier for Electronic Equipment.
A.Features
* For surface mounted applications in order to optimize board spac
* Low profile package
* Built-in strain relief
* Glass passivated junction
* Low inductance
* Excellent clamping capability

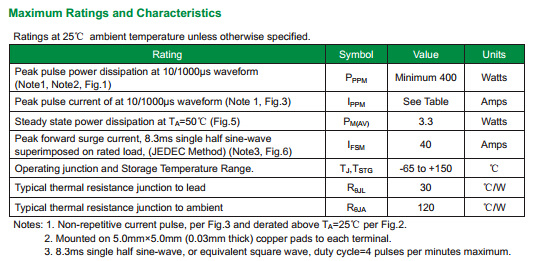

* 400W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
* Fast response time
* Typical IR less than 1μA above 10V
* High Temperature soldering: 260 /10 seconds at terminals ºC
* Plastic package has underwriters laboratory flammability 94V-0
B. Mechanical Data
* Case: JEDEC DO-214AC. Molded plastic over glass passivated j
* Terminal: Solder plated, solderable per MIL-STD-750, Method 20
* Polarity: Color band denotes cathode except bi-directional model
* Standard Packaging: 12mm tape (EIA STD RS-481)
* Weight: 0.07g
C. Applications
* I/O interface * AC/DC power s
* Low frequency signal transmission line (RS232, RS485, etc.)

Please check the whole PDF datasheet on our Website or ask Sophia.

3. Product Catalog:

Series	Hot Items	Hot Items	Hot Items	Hot Items	Hot Items	Hot Items
Schottky Diode(SKY)	SS12-SS1200	SS22-SS2200	SS32-SS3200	SS52-SS5200
Transient voltage Supressor(TVS)	SMAJ5.0-SMAJ440CA(400W)	SMBJ5.0-SMBJ440CA(600W)	SMCJ5.0-SMCJ440CA(1500W)	P4KE6.8-P4KE440CA	P6KE6.8-P6KE440CA	1.5KE6.8-1.5KE440CA
Fast Recovery(FR)	RS1A-RS1M	RS2A-RS2M	RS3A-RS3M	RS5A-RS5M
Super Fast rectifiers(SF)	ES1A-ES1J	ES2A-ES2J	ES3A-ES3J	ES5A-ES5J
High Efficiency rectifiers(HER)	US1A-US1M	US2A-US2M	US3A-US3M	US5A-US5M
Standard (STD)	M1-M7	S2A-S2M	S3A-S3M	S5A-S5M

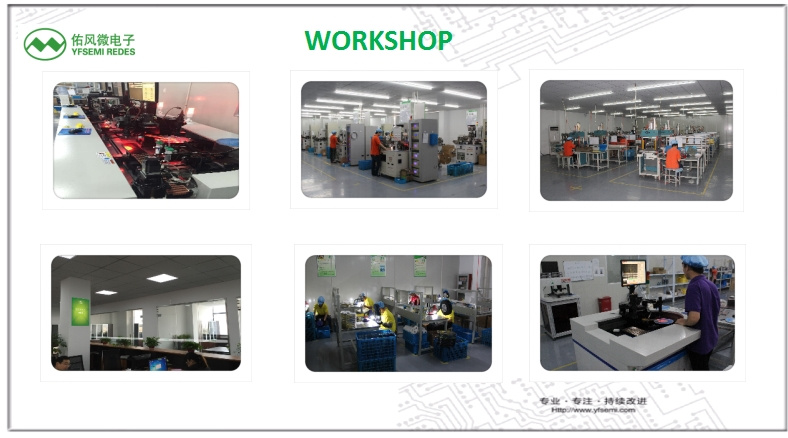

4. Our WorkShop:

5. Trade Shows:

6. Laboratory :

7. Contact
Jiangsu Youfeng Microelectronics Co.,Ltd
Contact Person: Sophia Zhang
Tel.: 86-519-85862923
Fax.: 86-519-85863923
Mobile: 86-18151995981

Website:http://www.yfsemi.com/EN

Youfeng microelectronics was established in March, 2009, mainly engaged in production of various kinds of diodes.

The company introduced a full set of advanced equipment and scientific management system from abroad. The quality of the products enjoys a good reputation in the both domestic and foreign markets. The company has introduced the certifications of ISO9002, ts16949 and ISO14001, and conforms to the latest RoHS and reach instructions.

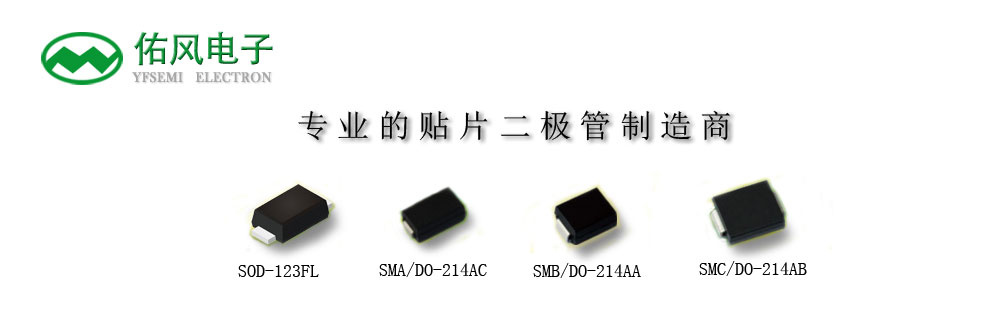

The company has a wide variety of products with complete specifications, including transient voltage suppressors(TVS), tss, general rectifier(STD), fast recovery diode(FR), high efficiency rectifiers(HER\UF), super fast recovery diode(SF) and schottky diode(SkY). The main package includes SOD-123FL, SMA, SMB, SMC, DO-41, DO-15, DO-17, DO-27, and R-6 etc. The annual output reaches 2000kk.

Our products are widely used in the fields like smart electric meters, security and protection, extinguishing and protection, energy saving lamp, home appliances, LED, automotive electronics etc.
