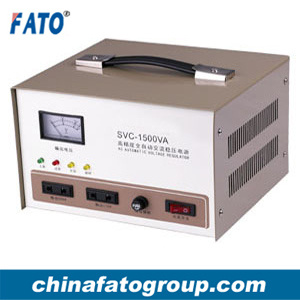

SVC Fully Automatic Voltage Regulator (SVC-1500VA)

Name: SVC Fully Automatic Voltage Regulator (SVC-1500VA)
Brand: all-electronics-online.com
SKU: 606251494
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	160V-250V 70V-130V
Output Voltage:	220V+/-3% with 110V+/-3%
Ambient Temperature:	-5c-+40c
Relative Humidity:	Less Than 95%
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	High Frequency

Product Description

Product Description:
SVC Fully Automatic Voltage Regulator consists of voltage regulator, sampling control circuit and service motor as well. It has excellent features, such as small waveform distortion high efficiency, high power factor, free from the effect or frequency variation of supply. It can be widely used in most situations where the voltage stabilization is required.

Specifications:

Input Voltage	160V-250V 70V-130V
Output voltage	220V+/-3% with 110V+/-3%
Phase	Single phase
Frequency	50/60Hz
Response Time	Within 1 sec. Against 10% input voltage deviation
Efficiency	Better than 90%
Ambient temperature	-5C-+40C
Relative humidity	Less than 95%
Waveform distortion	Non-lack fidelity waveform

Model:

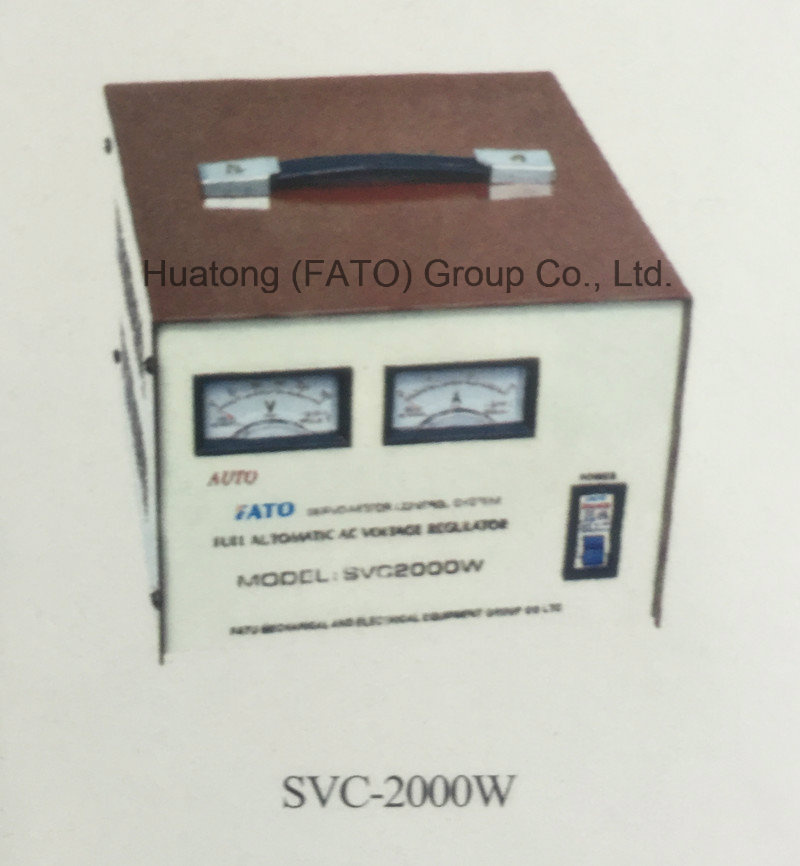

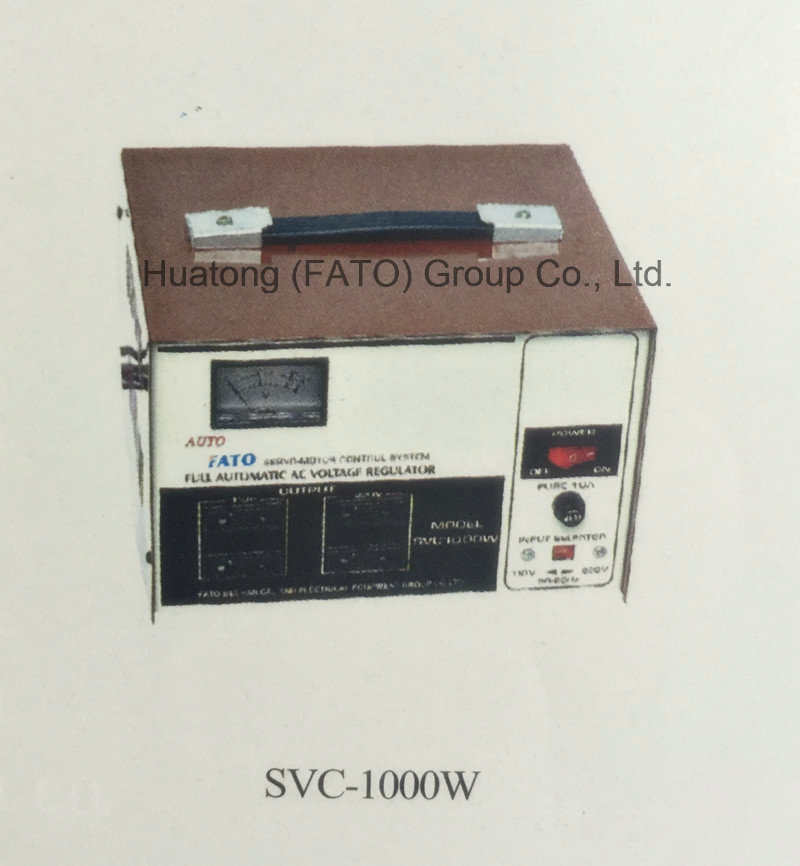

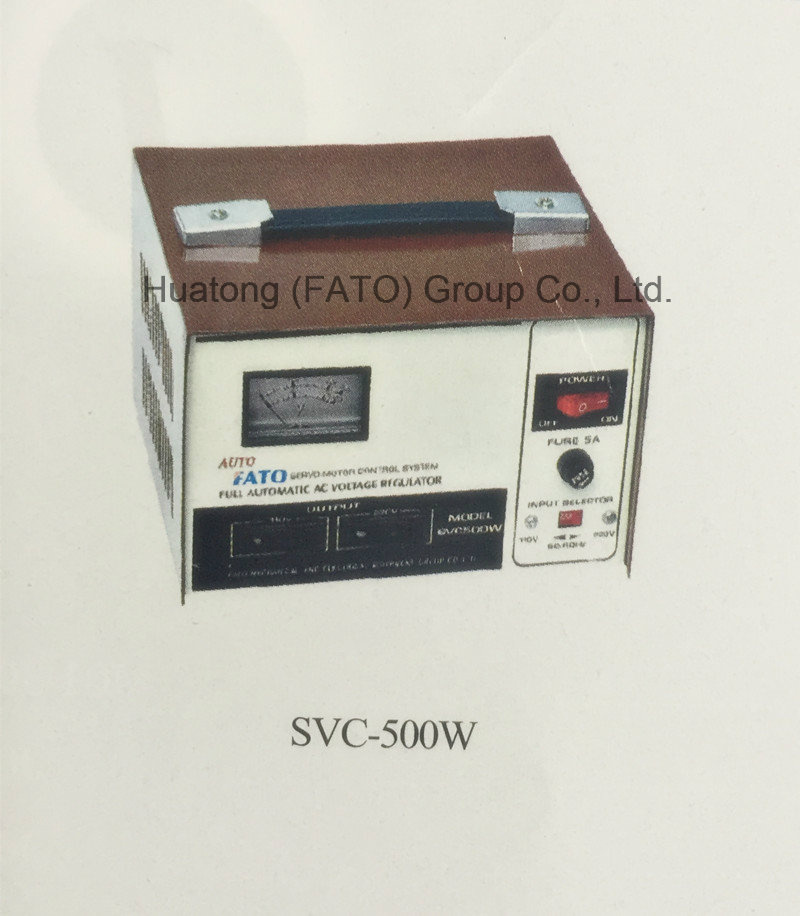

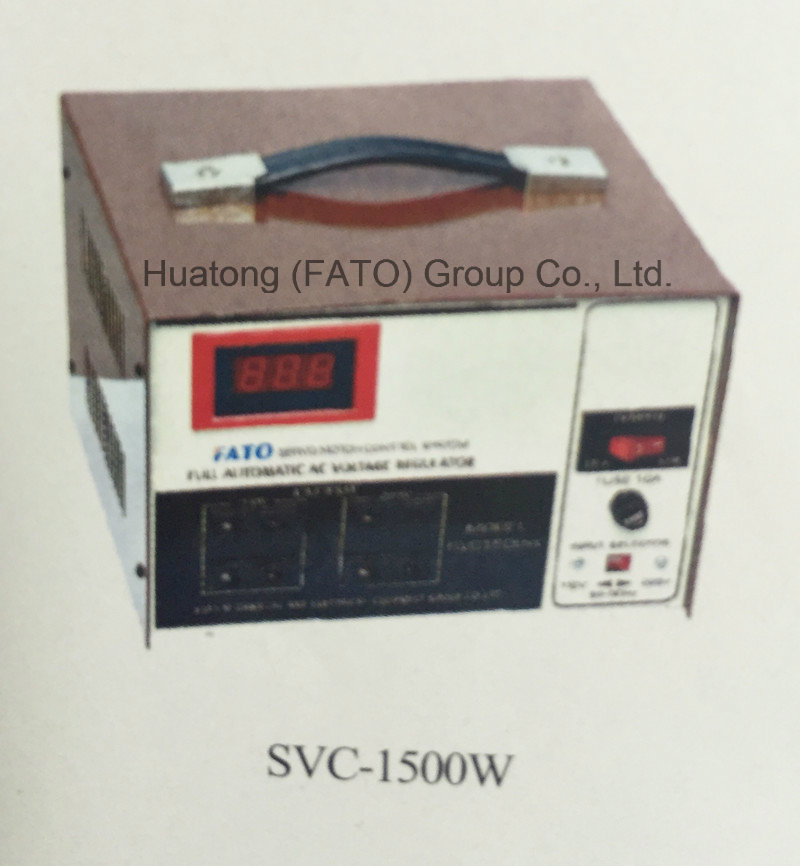

SVC-500 0.5KW, SVC-1000 1KW, SVC-1500 1.5KW, SVC-2000 2KW

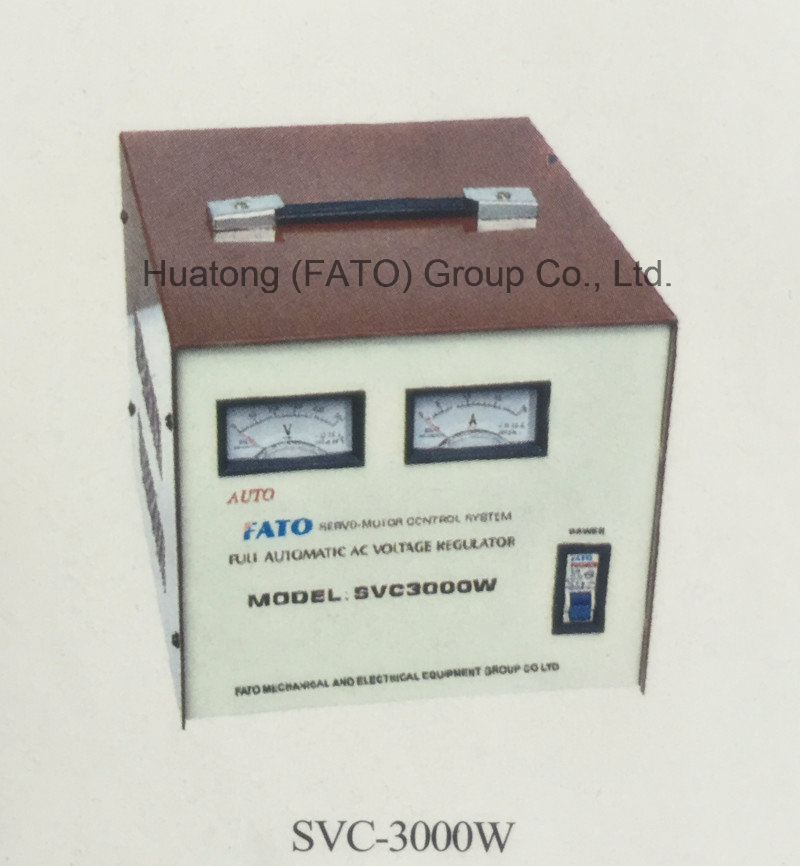

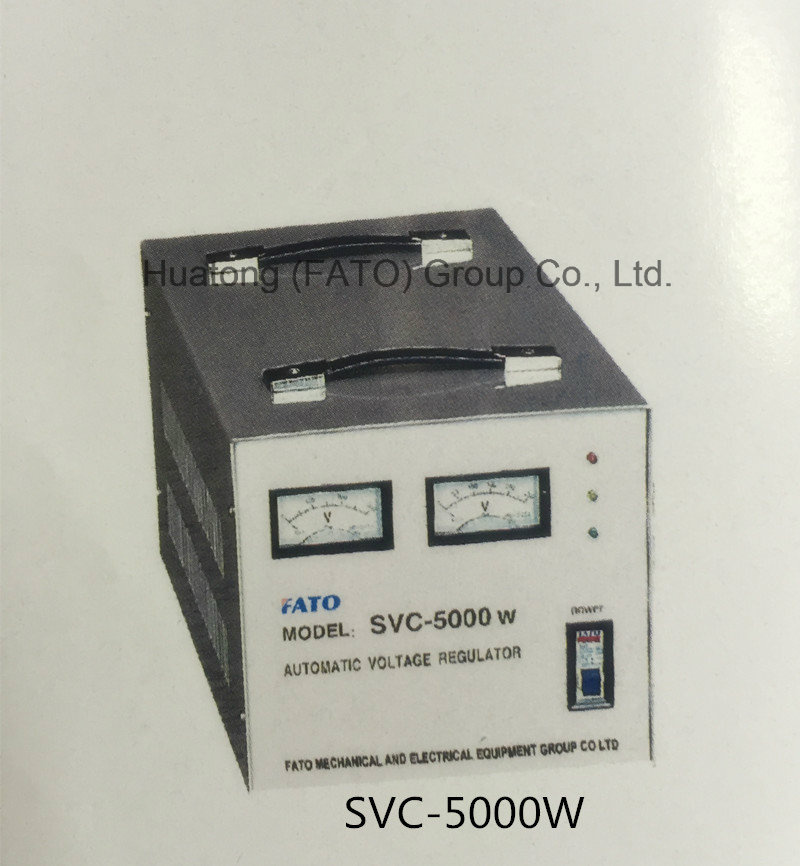

SVC-3000 3KW, SVC-5000 5KW, SVC-8000 8KW, SVC-10000 10KW
SVC-15000 15KW, SVC-20000 20KW
