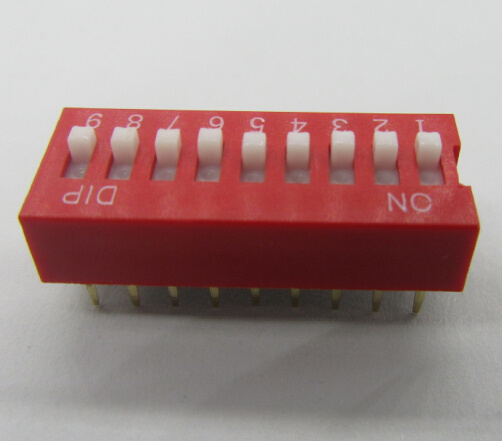

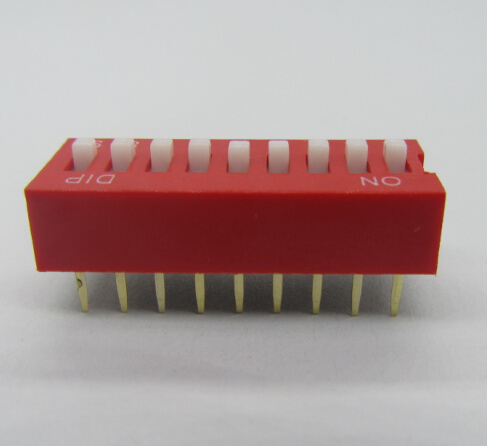

Switch 9-Way DIP Ds-09

Name: Switch 9-Way DIP Ds-09
Brand: all-electronics-online.com
SKU: 808105975
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	US $ 0.1182/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

SPECIFICATION:
1.Switching constant current:25mA@24VDC
2.Switch is not frequently switched rated current:100mA@24VDC
3.Life:Moving back and forth 2000times
4.Compression strength:500V/min
5.Insulation resistance:100Meg-chms min
6.Working or storage temperature:-40ºC to +86ºC
7.Foundation:PBT(Black)
8.Cover:PBT(Red or Black)
9.Operating arm:POM Poly formaldehyde plastics
10.Terminal:Gold Plated phosphor bronze
11.Hand welding:30Wawro iron control temperature of 320ºC Celsius in less than 2 seconds
Wave soldering:260ºC Celsius no more than 2 seconds
12.In the cleaning process, the switch is off
13.Products meet RoHS/REACH

Prod Model:	DS-09R

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
